Micro Industrial 1000BASE-X plus 10/100/1000BASE-T 60W PoE+ Media Converter

Name: Micro Industrial 1000BASE-X plus 10/100/1000BASE-T 60W PoE+ Media Converter
Brand: E-link
SKU: LNK-IMC3011P60
Rating: 4.7 (162 reviews)

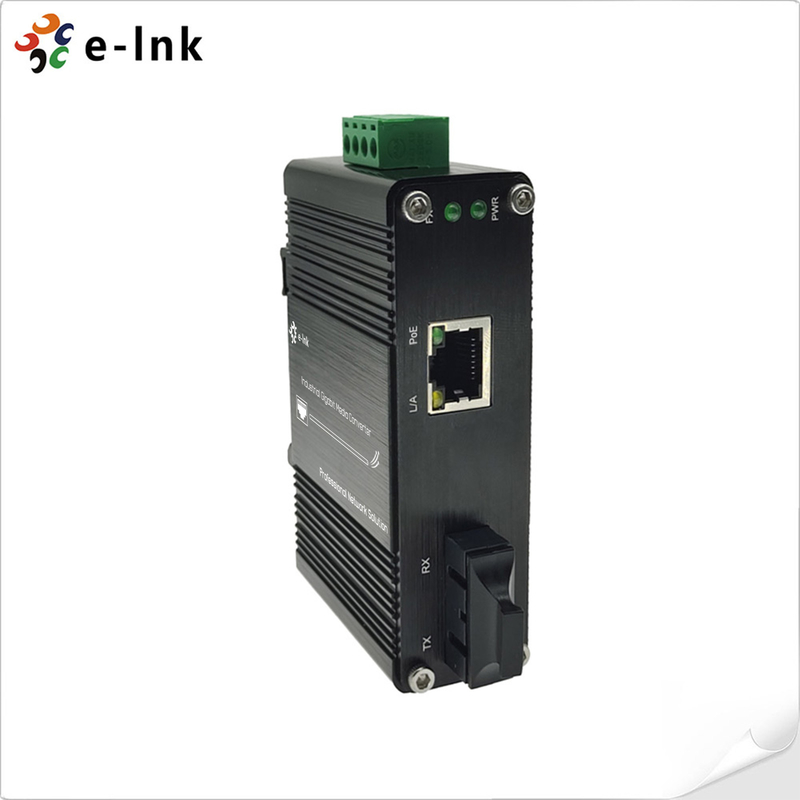

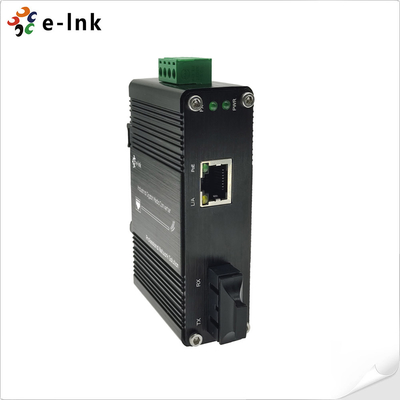

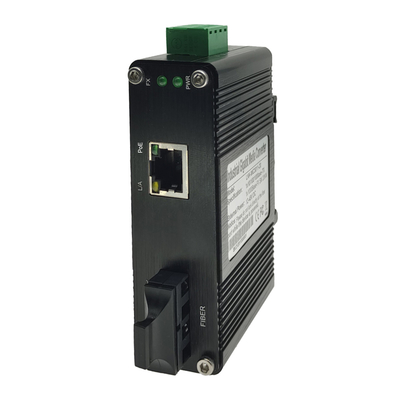

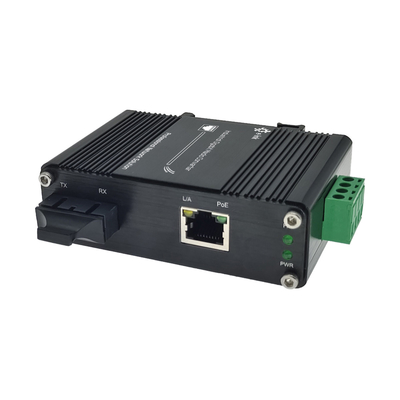

Large Image : Micro Industrial 1000BASE-X plus 10/100/1000BASE-T 60W PoE+ Media Converter

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC3011P60

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet Media Converter	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Optical Port:	1 X 1000Base-X SC	Dimensions:	95 X 70 X 30 Mm
Input Power:	12~48VDC	Connector:	1 X RJ45

Industrial Ethernet Media Converter's Product Description:

The LNK-IMC3011P60 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. This Industrial Ethernet Media Converter supports 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. This Industrial Ethernet Media Converter is a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. This Industrial Ethernet Media Converter is easy to mount on a DIN rail or in distribution boxes.

Micro Industrial 1000BASE-X plus 10/100/1000BASE-T 60W PoE+ Media Converter 0

Industrial Ethernet Media Converter's Features:

LNK-IMC3011P60 Series present the following characteristics:

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► IEEE802.3af/at compliant

► Up to 60W of power over 4-pairs

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Industrial Ethernet Media Converter's Technical Parameters:

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Output Power	48VDC
Power Consumption:	65W Max.
Weight:	0.25Kg
Casing:	Aluminum Case

Industrial Ethernet Media Converter's Applications:

Micro Industrial 1000BASE-X plus 10/100/1000BASE-T 60W PoE+ Media Converter 1

Industrial Ethernet Media Converter's Support and Services:

Industrial Ethernet Media Converter technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet Media Converter’s Packing and Shipping:

Industrial Ethernet Media Converter ackaging and Shipping:

Each Industrial Ethernet Media Converter is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the converter remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet Media Converter's Ordering Information:

Model	Description
LNK-IMC3011P60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P60S-20	Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
	► Power Supply is to be purchased separately.
