| Product Name: | Industrial Ethernet Media Converter | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |
|---|---|---|---|
| Optical Port: | 1 X SFP 1000Base-X Or 100Base-FX (auto Detection) | Dimensions: | 95 X 70 X 30 Mm |
| Input Power: | 12~48VDC | Connector: | 2 X RJ45 |

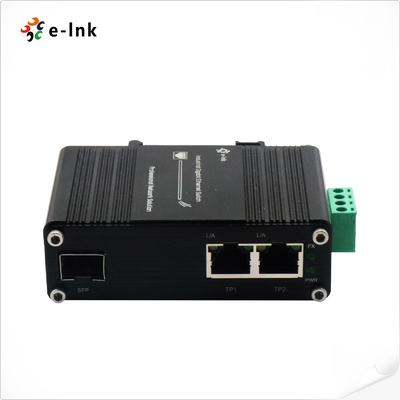

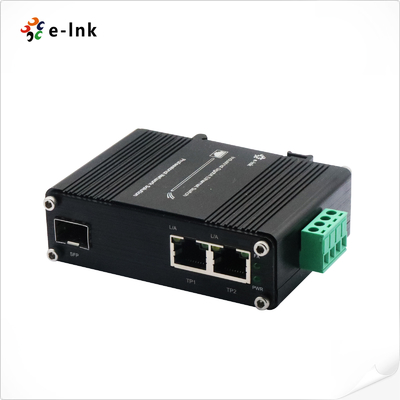

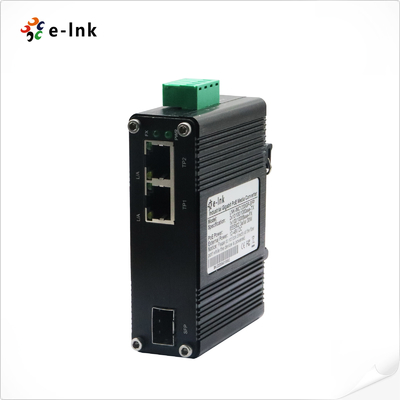

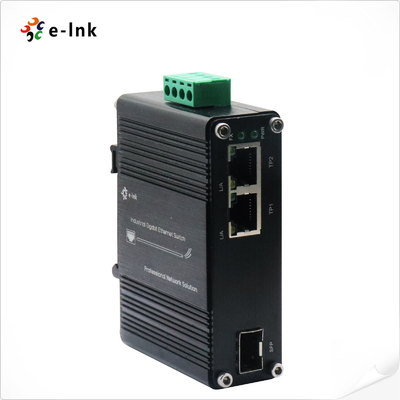

LNLNK-IMC1200G-SFP Series is a DIN rail type Media Converter that supports external SFP Modules and meets EN55022 standard. This Industrial Ethernet Media Converter is a hardened grade product whose operating temperature range is -40°C to +75°C.This Industrial Ethernet Media Converter supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
LNK-IMC1200G-SFP Series present the following characteristics:
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail & Wall-mount installation
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Power Consumption: | 5W Max. |
| Weight: | 0.25Kg |
Industrial Ethernet Media Converter technical support and service includes:
Industrial Ethernet Media Converter Packaging and Shipping:
| Model | Description |
| LNK-IMC1200G-SFP | Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
