Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Ethernet Media Converter | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |
|---|---|---|---|
| Optical Port: | 1 X SFP 1000Base-X Or 100Base-FX (auto Detection) | Dimensions: | 95 X 70 X 30 Mm |
| Input Power: | 12~48VDC | Connector: | 1x RJ45 |

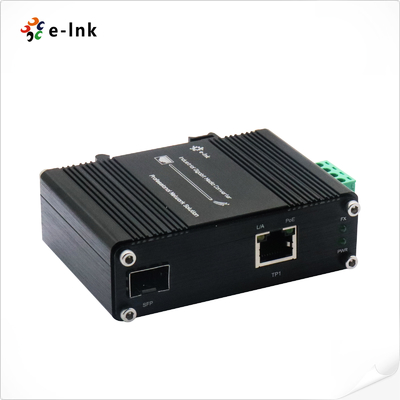

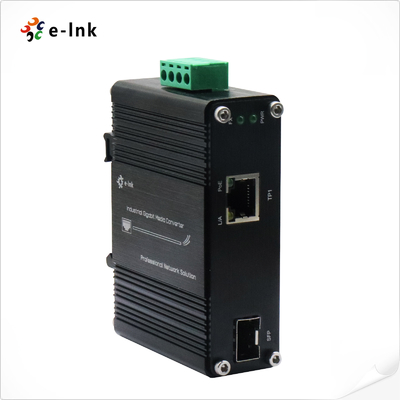

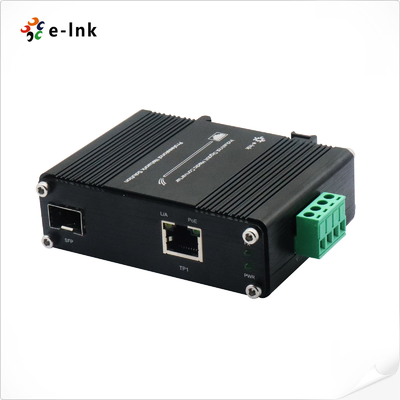

LNK-IMC3012P60-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. This Industrial Ethernet Media Converter supports high power PoE (Power over Ethernet) which complies with IEEE802.3at standard. This Industrial Ethernet Media Converter is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012P60-SFP supports 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
LNK-IMC3012P60-SFP Series present the following characteristics:
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► IEEE802.3af/at compliant
► Up to 60W of power over 4-pairs
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Supports Full/Half-duplex, Auto-negotiation
► Supports DIN-Rail & Wall-mount installation
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2048K MAC Addresses |
| Power Consumption: | 65W Max. |
| Weight: | 0.25Kg |
Industrial Ethernet Media Converter technical support and service includes:
Industrial Ethernet Media Converter Packaging and Shipping:
| Model | Description |
| LNK-IMC3012P60-SFP | Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with 60W PoE++ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
