Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Ethernet Media Converter | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |
|---|---|---|---|
| Optical Port: | 1 X SC 100Base-FX | Dimensions: | 95 X 70 X 30 Mm |
| Input Power: | 12~48VDC | Connector: | 1x RJ45 |

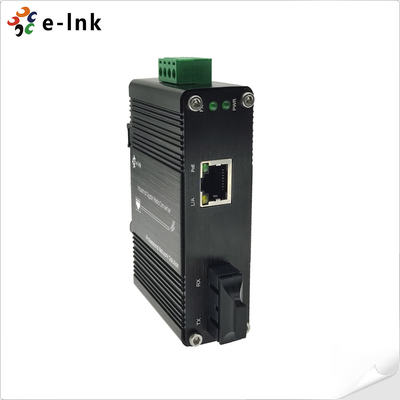

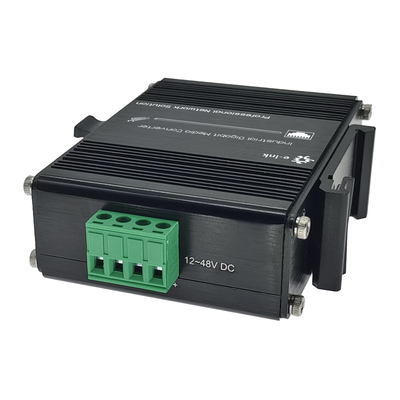

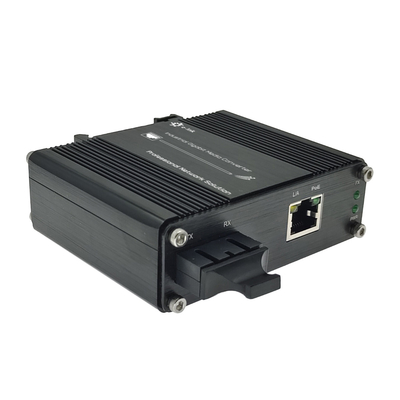

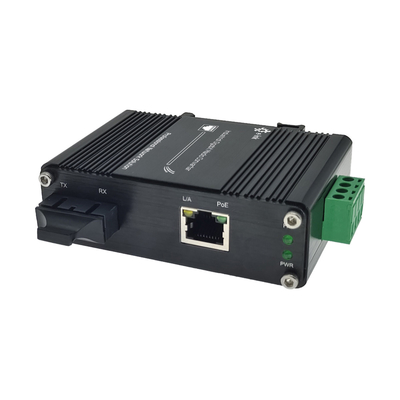

The LNK-IMC1100P60 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. This Industrial Ethernet Media Converter supports 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. This Industrial Ethernet Media Converter is a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions.
LNK-IMC1100P60 presents the following characteristics:
► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► IEEE802.3af/at compliant
► Up to 60W of power over 4-pairs
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail & Wall-mount installation
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3x Full duplex and flow control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 128K bits |
| Max Packet Length: | 1522 Bytes |
| Power Consumption: | 65W Max. |
| Weight: | 0.25Kg |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Media Converter technical support and service includes:
Industrial Ethernet Media Converter Packaging and Shipping:
| Model | Description |
| LNK-IMC1100P60 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1100P60-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1100P60S-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
