Industrial Ethernet Switch with 4×10/100/1000Base-T+1×100/1000Base-X SFP Ports

Name: Industrial Ethernet Switch with 4×10/100/1000Base-T+1×100/1000Base-X SFP Ports
Brand: E-link
SKU: LNK-IMC-A1400G-SFP
Rating: 4.7 (174 reviews)

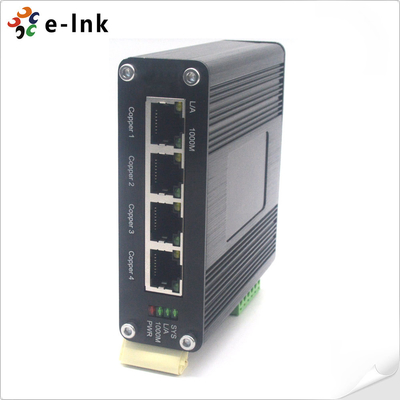

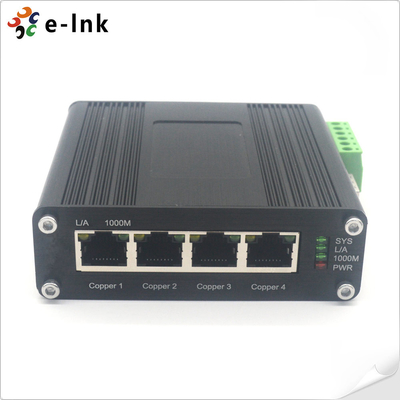

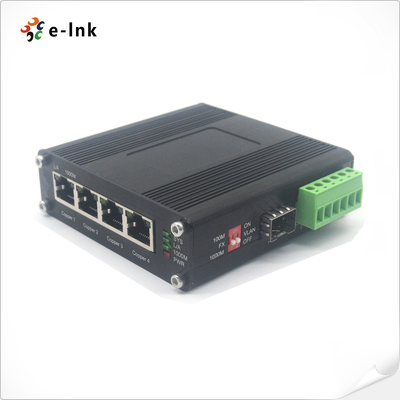

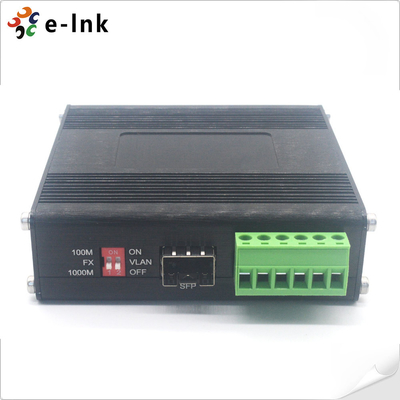

Large Image : Industrial Ethernet Switch with 4×10/100/1000Base-T+1×100/1000Base-X SFP Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC-A1400G-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 5 Port PoE Switch	Data Rate:	10/100/1000Mbps
Optical Port::	1 X SFP 1000Base-X Or 100Base-FX (DIP Switch)	Input Power:	110~230VAC
Dimensions (WxDxH):	95 X 95 X 30 Mm	Connector:	4x RJ45 10/100/1000Base-T

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC-A1400G-SFP Series is a DIN rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. This Industrial Ethernet PoE Switch is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK- A1400G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

This Industrial Ethernet PoE Switch with four 10/100/1000M UTP ports and one 100/1000M SFP sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal.

Industrial Ethernet Switch with 4×10/100/1000Base-T+1×100/1000Base-X SFP Ports 0

Industrial Ethernet PoE Switch's Features:

LNK-IMC-A1400G-SFP presents the following characteristics:

► 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (DIP switch)

► Supports flow control and broadcast storm protection.

► Supports VLAN and QoS.

► Supports max 10K bytes frame.

Industrial Ethernet PoE Switch's Technical Parameters:

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.1d Spanning Tree
	IEEE 802.1q VLAN TAG
	IEEE 802.1p Qos
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	4K MAC Addresses
Electrical and Mechanical
Input Power:	110~230VAC, 6-pin terminal block
Power Consumption:	5W Max.

Industrial Ethernet PoE Switch's Application: Industrial Ethernet Switch with 4×10/100/1000Base-T+1×100/1000Base-X SFP Ports 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service include:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC-A1400G-SFP	Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 110~230VAC Power Supply. Open Wire for Terminal Block
