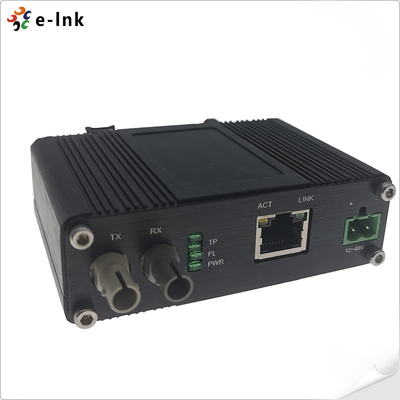

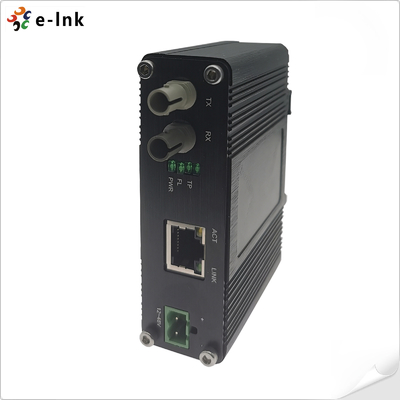

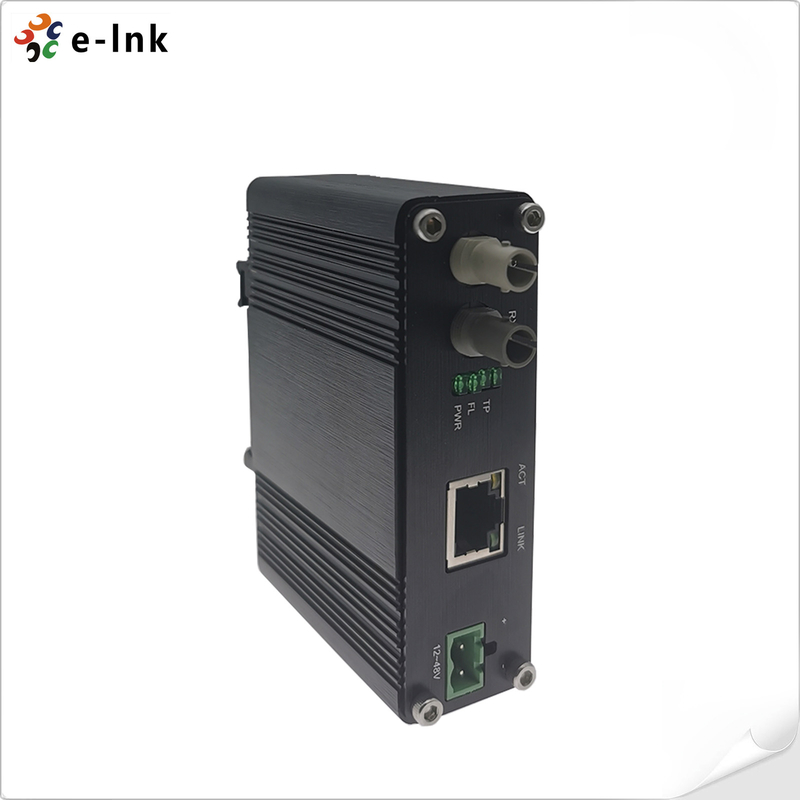

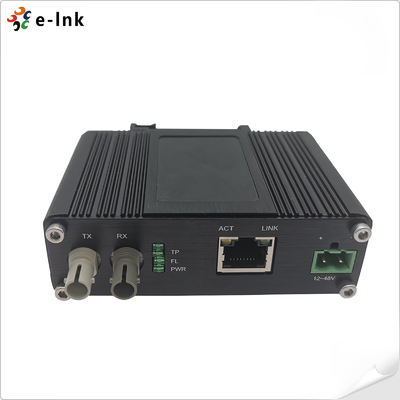

Mini Industrial Ethernet Media Converter with 10BASE-T and 10BASE-FL Ports

Name: Mini Industrial Ethernet Media Converter with 10BASE-T and 10BASE-FL Ports
Brand: E-link
SKU: LNK-IMC10FST-MM
Rating: 4.8 (103 reviews)

Large Image : Mini Industrial Ethernet Media Converter with 10BASE-T and 10BASE-FL Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC10FST-MM

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Ethernet Media Converter	Operating Temperature:	40°C To 75°C (-40°F To 167°F)
Optical Port:	1 X ST 10Base-FL	Dimensions:	95 X 70 X 30 Mm
Input Power:	12~48VDC	Connector:	1x RJ45 10Base-T

Industrial Ethernet Media Converter's Product Description:

LNK-IMC10FST-MM Ethernet to 10Base-FL fiber optical media converter converts your existing 10Base-T Ethernet to a 10Base-FL network with single mode or multimode fiber optic cable up to 20,000 meters.

This Industrial Ethernet Media Converter is a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC10FST Series are easy to mount on a DIN rail or in distribution boxes.

Industrial Ethernet Media Converter's Features:

LNK-IMC10FST-MM presents the following characteristics:

► Auto-MDI/MDIX

► Complies with 802.3 10Base-T and 10Base-FL standards

► Extends network span from up to 2km(Multi mode)

► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches

► Provides LEDs for easy network monitoring

► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets

► Supports 802.3x Flow control

Industrial Ethernet Media Converter's Technical Parameters:

Standards:	IEEE 802.3
	10 Base-T
	10 Base-FL
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Full duplex and flow control
Conversion Means:	Store and Forward mode or Cut-Through mode
Forward Filter Rate:	14,880pps (10Mbps)
Wavelength:	850nm
Buffer Space:	Built in 128Kb RAM for data buffer
Flow Control:	Full duplex: flow control; Half duplex: back pressure
Transmission type:	Base band
Connection switch:	2-position 10Base-T switch on RJ-45 side (hub or W/S)

Industrial Ethernet Media Converter's Applications:

Mini Industrial Ethernet Media Converter with 10BASE-T and 10BASE-FL Ports 0

Industrial Ethernet Media Converter's Support and Services:

Industrial Ethernet Media Converter technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet Media Converter’s Packing and Shipping:

Industrial Ethernet Media Converter Packaging and Shipping:

Each Industrial Ethernet Media Converter is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the converter remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet Media Converter's Ordering Information:

Model	Description
LNK-IMC10FST-MM	Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
	► Power Supply is to be purchased separately.
