Mini Industrial Compact Ethernet Switch with 8×10/100/1000T 802.3at PoE plus 2×10/100/1000T Ports

Name: Mini Industrial Compact Ethernet Switch with 8×10/100/1000T 802.3at PoE plus 2×10/100/1000T Ports
Brand: E-link
SKU: LNK-IMC010GP
Rating: 4.9 (144 reviews)

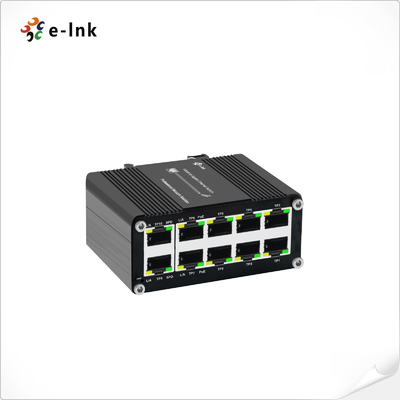

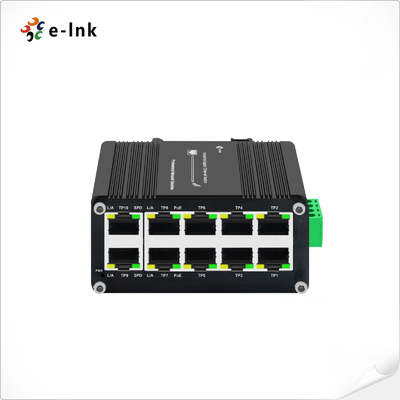

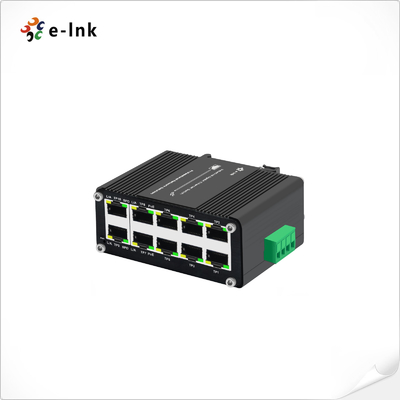

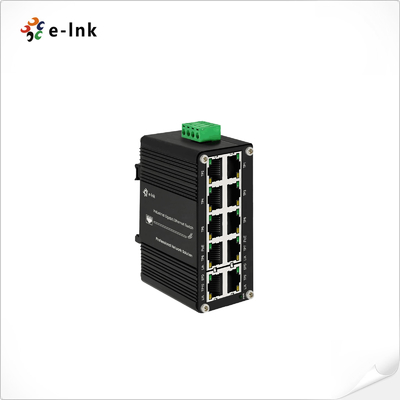

Large Image : Mini Industrial Compact Ethernet Switch with 8×10/100/1000T 802.3at PoE plus 2×10/100/1000T Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010GP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Data Rate:	10/100/1000Mbps
Connector:	10 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports 8 Ports With 802.3at PoE+ Injector Function	Port:	RJ45
Input Power:	48~57VDC	Dimensions (WxDxH):	95 X 88 X 46mm

Industrial Ethernet PoE Switch's Product Description:

The LNK-IMC010GP is the mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch and is specially designed to be installed in a narrow environment. This Industrial Ethernet PoE Switch provides up to 240-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. With eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two extra 10/100/1000BASE-T RJ45 copper interface for uplink connection. The power system of the LNK-IMC010GP supports 48~57V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 80 degrees C in a rugged IP40 metal housing.

Mini Industrial Compact Ethernet Switch with 8×10/100/1000T 802.3at PoE plus 2×10/100/1000T Ports 0

Industrial Ethernet PoE Switch's Features:

The LNK-IMC010GP presents the following characteristics:

► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► Up to 8 ports of IEEE 802.3af/at devices powered

► Up to 240-watt PoE budget

► 48~57V DC redundant power with reverse polarity protection

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

Industrial Ethernet PoE Switch's Technical Parameters:

Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Max. Number of Class 4 PDs	8
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)

Industrial Ethernet PoE Switch's Applications:

Mini Industrial Compact Ethernet Switch with 8×10/100/1000T 802.3at PoE plus 2×10/100/1000T Ports 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service include:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC010GP	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately
