Industrial Managed SFP Fiber Switch with 8×100/1000Base-X SFP + 2×100/1000M Ports

Name: Industrial Managed SFP Fiber Switch with 8×100/1000Base-X SFP + 2×100/1000M Ports
Brand: E-link
SKU: The LNK-IMC802M
Rating: 4.7 (136 reviews)

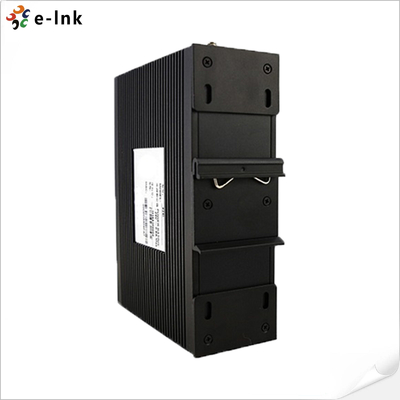

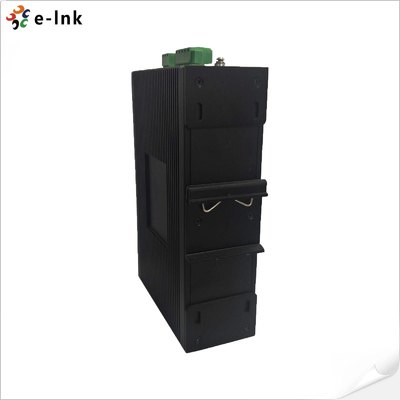

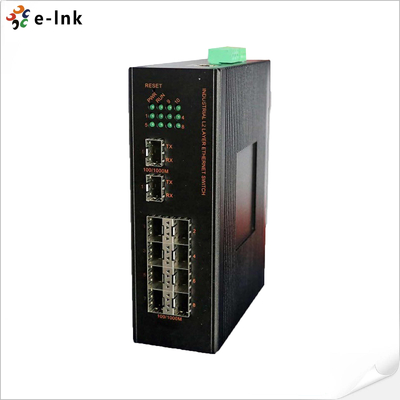

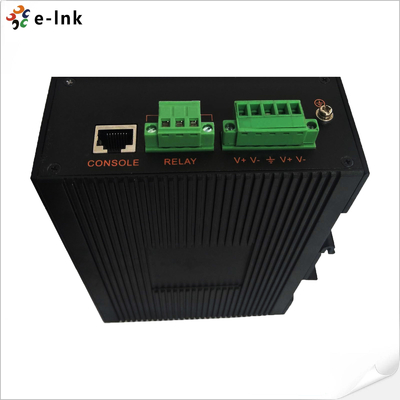

Large Image : Industrial Managed SFP Fiber Switch with 8×100/1000Base-X SFP + 2×100/1000M Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	The LNK-IMC802M

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Optic Switch	Data Rate:	100/1000Mbps
SFP Port:	8 SFP Ports With 100/1000M Adaptive	Console Port:	1 RS-232 Port
Input Power:	DC: 36V~72V AC: 100V~240V	Dimensions (WxDxH):	54 X 182 X 122mm

Fiber Optic Switch's Product Description:

The LNK-IMC802M supports 10 SFP ports, the aluminum metal case with IP40 protection equipment, strong anti vibration card base, extreme temperature adaptability and good EMC performance of EMC, to ensure that in the harsh environment the long-term stable and reliable, safe use.

This Fiber Optic Switch series supports the proprietary M-Ring ring protection protocol, healing time can be less than 20ms, VLAN, QINQ, STP/RSTP, support QOS, ACL multicast, rich two layer exchange function, while providing CLI, Telnet, SSH, Http, Https and other management and network management software based on SNMPv1/v2c/v3. BH600-C628FI has wide range of applications, including campus, rail transport, electricity, petroleum, petrochemical, banking, water, metallurgy, public security, military, civil aviation, etc., by the user's trust and praise.

Fiber Optic Switch's Features:

LNK-IMC802M presents the following characteristics:

► 2 10/100/1000Base-TX + 8 1000Base-X SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► Supports DIN-Rail and Wall-mount installation

Fiber Optic Switch's Technical Parameters:

Uplink port	2 SFP ports with 100/1000M adaptive
SFP port	8 SFP ports with 100/1000M adaptive
Alarm port	1 relay output terminal
Reset key	reset device and restore the default configuration
Flash	16MB
VLAN ID range	1 ～ 4094
MAC address table	8k
Packet buffer	4Mbit
Exchange capacity	53G
Case	IP40,aluminium profile
Installation	DIN-Rail type, wall mount type
Manage	Support CLI, TELNET, SSH, HTTP, HTTPS Support SNMPv1/v2c/v3 Support CVIEW management system
Working temperature	-40~+85°C
Storage temperature	-40~+85°C
Working humidity	5 ～ 95%(no coagulation)

Fiber Optic Switch's Applications:

Industrial Managed SFP Fiber Switch with 8×100/1000Base-X SFP + 2×100/1000M Ports 1

Fiber Optic Switch's Support and Services:

Fiber Optic Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Fiber Optic Switch’s Packing and Shipping:

Fiber Optic Switch Packaging and Shipping:

Each Fiber Optic Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.
