Industrial Optical Switch with 2×10/100/1000Base-T+8×1000BASE-X SFP Ports

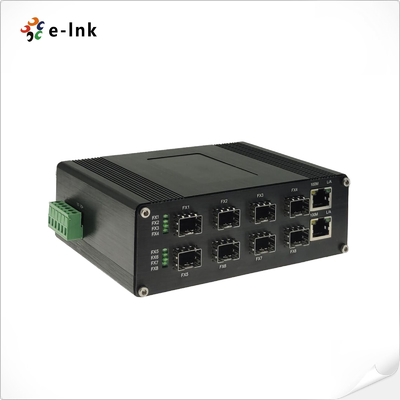

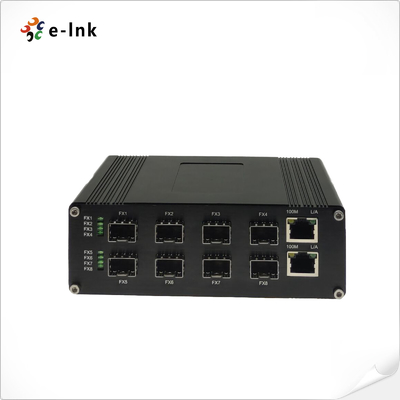

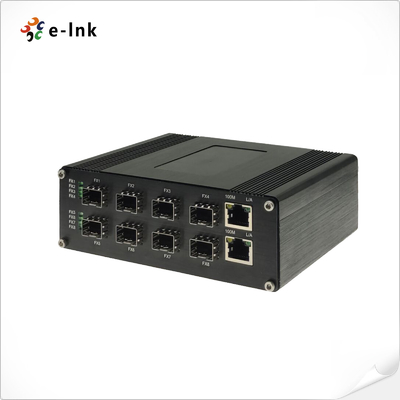

Large Image : Industrial Optical Switch with 2×10/100/1000Base-T+8×1000BASE-X SFP Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC802G-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial Optical Switch	Data Rate:	10/100/1000Mbps
Ethernet Port::	2 X RJ45	Optical Port:	8 X 1000Base-X SFP
Input Power:	12~57VDC	Dimensions (WxDxH):	149 X 110 X 50 Mm

Optic Fiber Switch's Product Description:

LNK-IMC802G-SFP Series is a unmanaged 8 ports 1000Base-X SFP + 2 ports 10/100/1000Base-T Optical Ethernet Switch. This Optic Fiber Switch provides SFP slot to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can choose different types of SFPs (1.25g only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber. The product operates at temperatures ranging from -40^oC to 80^oC and DIN-Rail installation.

Optic Fiber Switch's Features:

LNK-IMC802G-SFP presents the following characteristics:

► 2 10/100/1000Base-TX + 8 1000Base-X SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

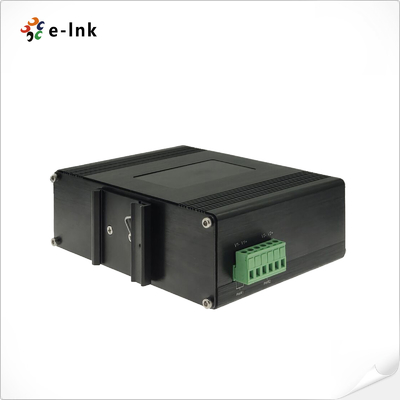

► Supports DIN-Rail and Wall-mount installation

Optic Fibber Switch's Technical Parameters:

Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs

Optic Fiber Switch's Applications:

Industrial Optical Switch with 2×10/100/1000Base-T+8×1000BASE-X SFP Ports 1

Optic Fiber Switch's Support and Services:

Optic Fiber Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Optic Fiber Switch’s Packing and Shipping:

Optic Fiber Switch Packaging and Shipping:

Each Optic Fiber Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Optic Fiber Switch's Ordering Information:

Model	Description
LNK-IMC802G-SFP	Industrial Ethernet Switch: 2-Port 10/100/1000Base-TX + 8-port 1000Base-X SFP
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
