Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial OEO Converter | Work Mode: | 10/100/1000BASE-T To 1000BASE-SX/LX |
|---|---|---|---|
| Ethernet Por: | Ethernet Po | Port Type: | SFP To RJ45 |
| Input Power: | 12~48VDC | Power Consumption: | 8W Max |

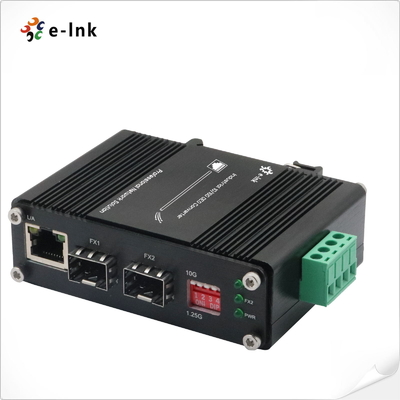

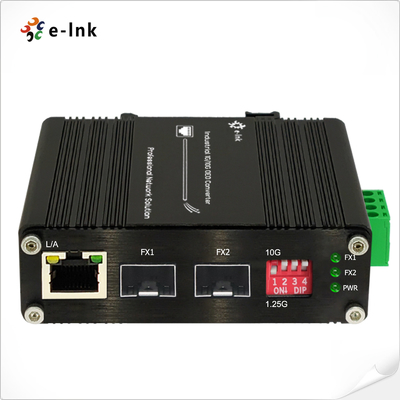

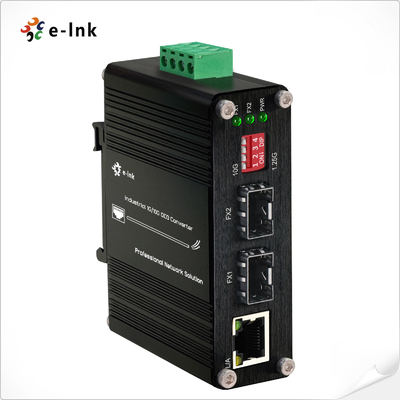

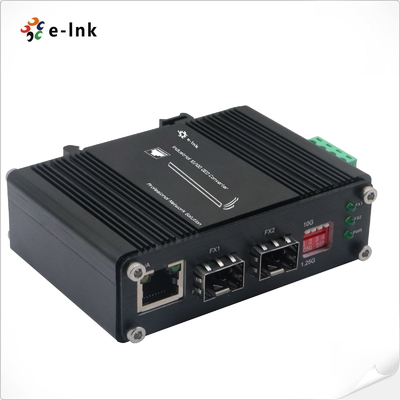

ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃.
This Industrial Ethernet Media Converter is for network backbone (SAN, LAN, MAN) application, and support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. Additionally, this Industrial Ethernet Media Converter supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.
When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
ETH-IMC2402-OEO presents the following characteristics:
► Transparent Transport and very low delay
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► Support Loop-back and Jumbo Frame
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet
► IP40 Aluminum Case
| Interface Type | SFP+ to SFP+ |
| Transmission Distance | SFP+ module: up to 80km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Ethernet Media Converter Specifications | |
| Standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control |
| Port Type | SFP to RJ45 |
| Network Cables |
Twisted-pair Fiber-optic Cable |
Industrial Ethernet Media Converter technical support and service includes:
Industrial Ethernet Media Converter Packaging and Shipping:
| Model | Description |
| ETH-IMC2402-OEO | Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
