Industrial Gigabit Ethernet Switch with 4 PoE Ports + 110/100/1000T Ports + 2 100/1000X SFP

Industrial Ethernet PoE Switch's Product Description:

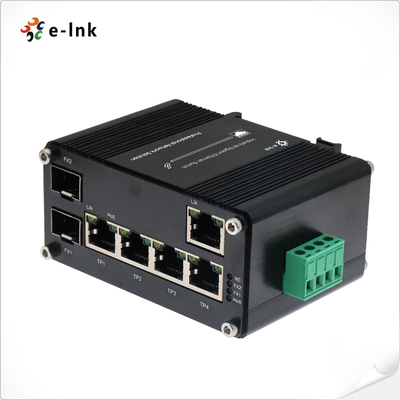

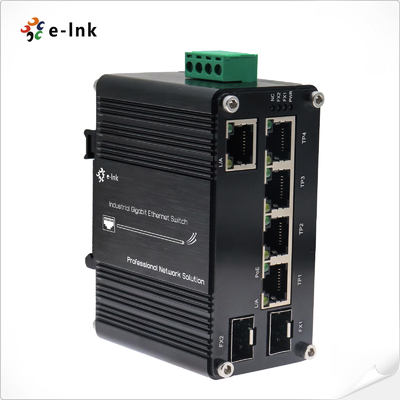

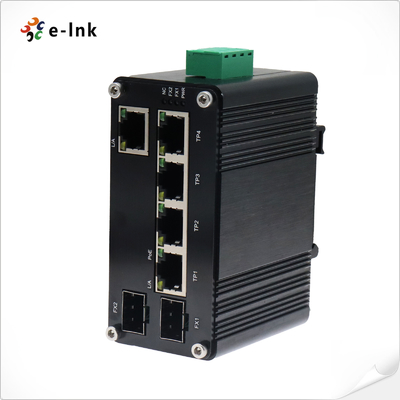

LNK-IMC205GHP-SFP Series is a Mini Industrial High Power 90W 802.3bt PoE Switch with 4*10/100/1000T Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection.

LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.

The LNK-IMC205GHP-SFP is IP40 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Industrial Ethernet PoE Switch's Features:

LNK-IMC205GHP-SFP presents the following characteristics:

► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes

► Complies with IEEE 802.3bt PoE Standard

► Up to 4 ports of IEEE 802.3bt/at/af devices powered

► Up to 360-watt PoE budget

► Supports PoE power up to 95 watts for each PoE port

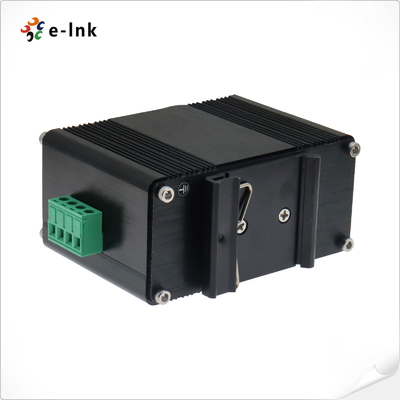

► Supports DIN-Rail installation

► Compact fanless design avoids overheating

► IP40 rugged high-strength metal case

Industrial Ethernet PoE Switch's echnical Parameters:

Industrial Ethernet PoE Switch's Applications:

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

• 24/7 technical support
• On-site troubleshooting and repairs
• Remote technical support
• Firmware updates and upgrades
• Hardware replacement
• Maintenance and preventive care
• Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

• Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
• The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
• The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:
