Unmanaged Industrial Ethernet Switch with 8×10/100BASE-T Ports

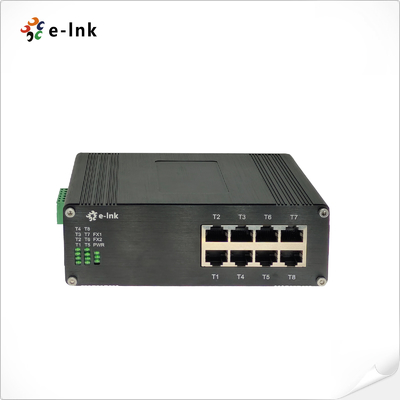

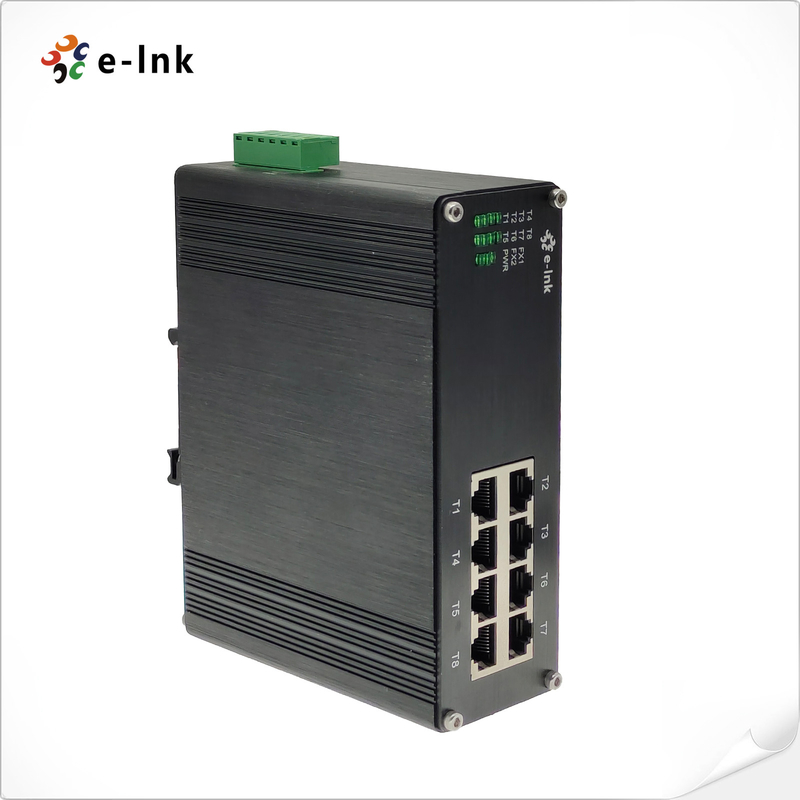

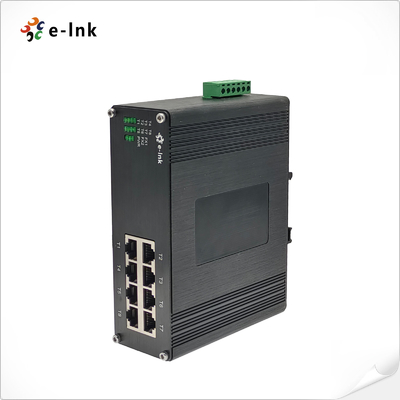

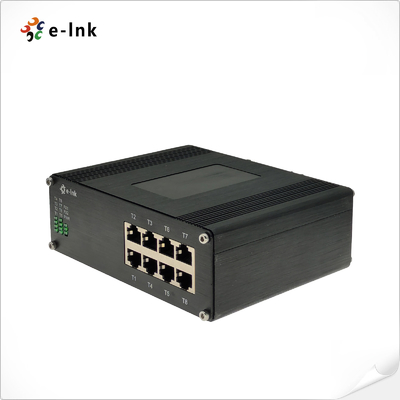

Large Image : Unmanaged Industrial Ethernet Switch with 8×10/100BASE-T Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC008

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 8 Port PoE Switch	Maximum Distance:	Cat5 UTP Up To 100m
Power Consumption:	5W Max	Connector:	8 X RJ45
Input Power:	12~58VDC	Dimensions (WxDxH):	150 X 115 X 50 Mm

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC008 is an 8 ports 10/100Base-TX Hardened Ethernet Switch. This unmanaged Industrial Ethernet PoE Switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it can match a variety of harsh environment.

This Industrial PoE Switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Industrial Ethernet PoE Switch's Features:

LNK-IMC008 presents the following characteristics:

► 8 10/100Base-TX ports

► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Redundant 12～58VDC Power Inputs

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial Ethernet PoE Switch's Technical Parameters:

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
Cabling	10Base-T: Cat5 or above
	100Base-TX: Cat5 or above
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable

Industrial Ethernet PoE Switch's Applications:

Unmanaged Industrial Ethernet Switch with 8×10/100BASE-T Ports 0

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC008	Industrial 8-port 10/100BASE-T Ethernet Switch
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	Power Supply is to be purchased separately.
