Industrial Ethernet Switch with 8×10/100/1000T + 4×1000X SFP Port

Name: Industrial Ethernet Switch with 8×10/100/1000T + 4×1000X SFP Port
Brand: E-link
SKU: LNK-IMC408G
Rating: 4.7 (177 reviews)

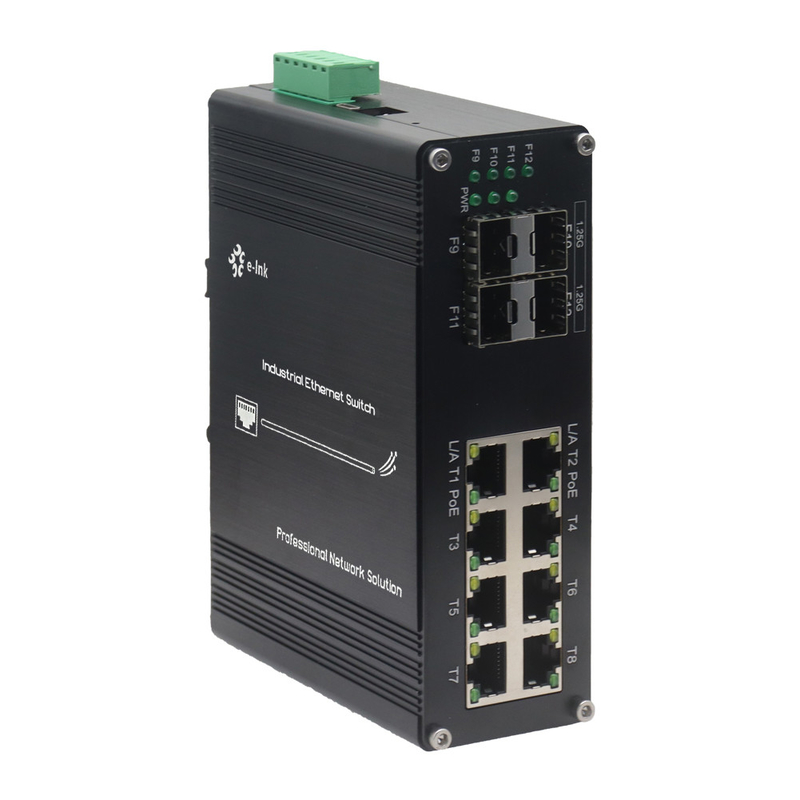

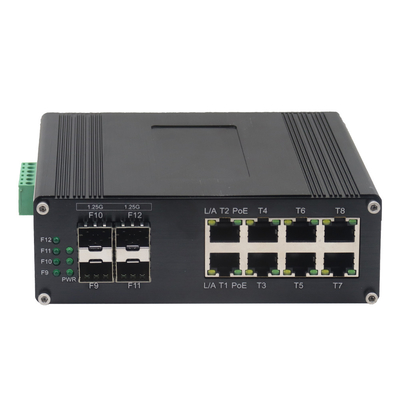

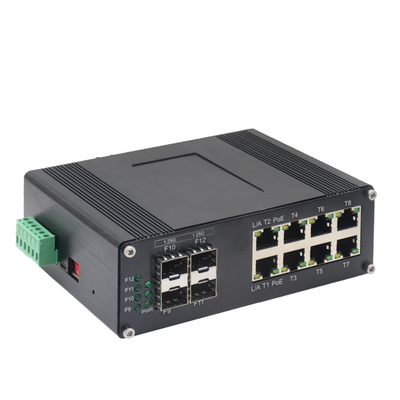

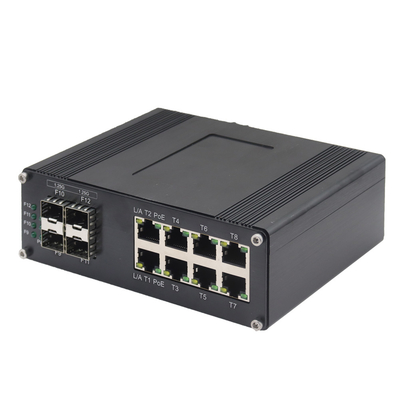

Large Image : Industrial Ethernet Switch with 8×10/100/1000T + 4×1000X SFP Port

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC408G

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 12 Port PoE Switch	Data Rate:	10/100/1000Mbps
Connector:	8 X RJ45	Optical Port:	4 X 1000Base-X SFP
Input Power:	12~48VDC	Dimensions (WxDxH):	149 X 114 X 50 Mm

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC408G Series is the 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 Gigabit Ethernet ports and 4 SFP fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection, and 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. Because this Industrial Ethernet PoE Switch is reliable and easy to use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Industrial Ethernet PoE Switch's Features:

LNK-IMC408G presents the following characteristics:

► Support 8x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► 12-48V DC Power Input

► 8W Max Power Consumption

► Aluminum Case

► Weight: 0.55kg

► Size: 149 x 114 x 50 mm

► -40°C to 80°C (-40°F to 176°F) operating temperature.

Industrial Ethernet PoE Switch's Technical Parameters:

Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	12M bits
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	9K Bytes Jumbo Frame
RS485 Serial Interface (Optional)
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
Serial port line distance (copper)	1000 meters

Industrial Ethernet PoE Switch's Applications:

Industrial Ethernet Switch with 8×10/100/1000T + 4×1000X SFP Port 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC408G	Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
