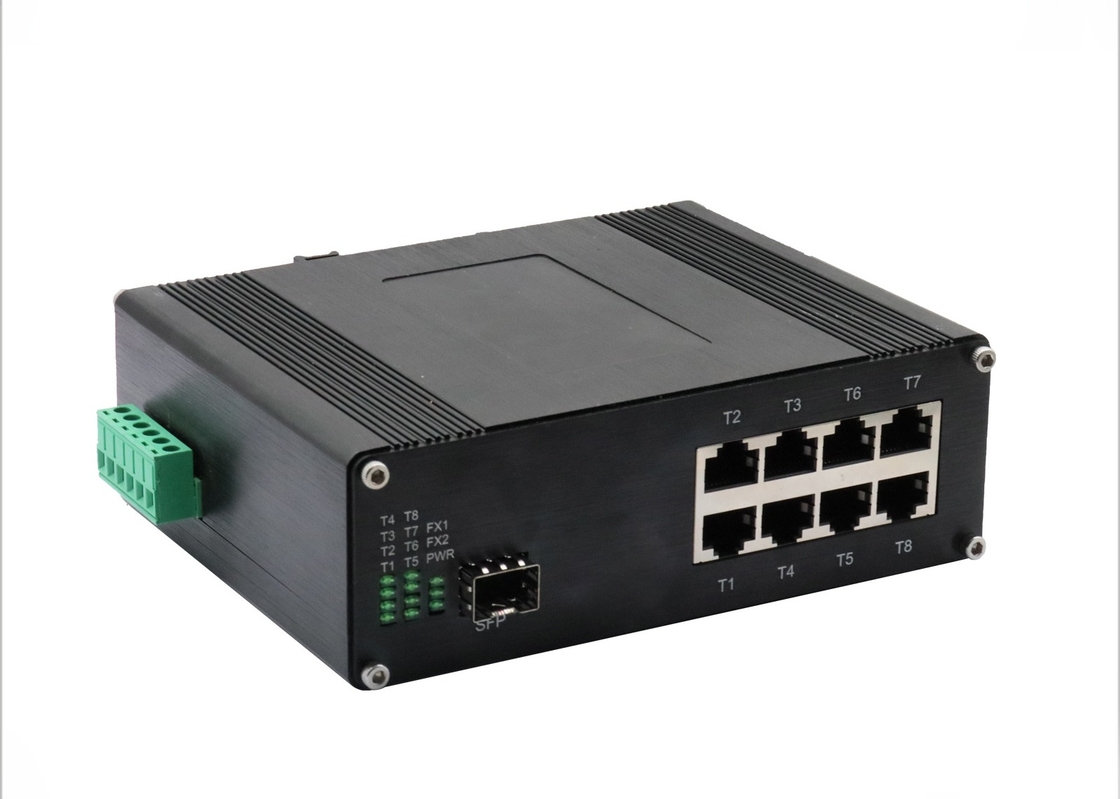

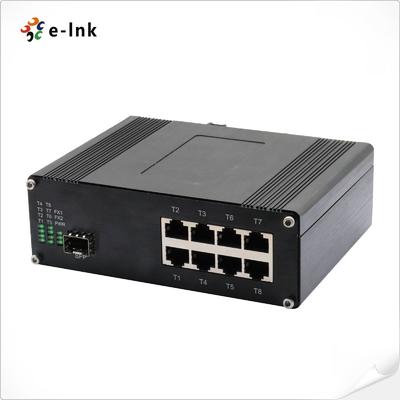

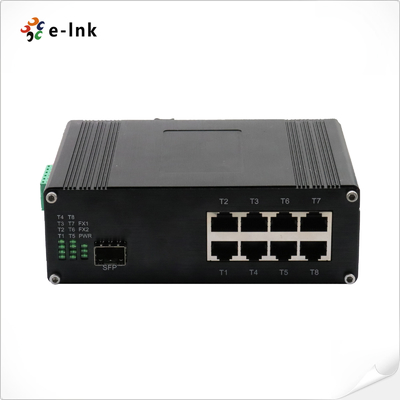

Industrial Ethernet Switch with 8×10/100Base-TX +1×100BASE-FX Ports

Name: Industrial Ethernet Switch with 8×10/100Base-TX +1×100BASE-FX Ports
Brand: E-link
SKU: LNK-IMC108
Rating: 5 (182 reviews)

Large Image : Industrial Ethernet Switch with 8×10/100Base-TX +1×100BASE-FX Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC108

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 9 Port PoE Switch	Data Rate:	10/100/1000Mbps
Ethernet Por:	RJ45 Port 1 ~ Port 8	Optical Port:	1 X 100Base-FX (SFP, SC, FC, ST Optional)
Input Power:	12~58VDC	Dimensions (WxDxH):	150 X 115 X 50 Mm

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC108 is an 8 ports 10/100Base-TX + 1 port 100Base-FX Industrial Ethernet switch. This Industrial Ethernet PoE Switch has 8 TP ports and 1 fiber port. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, this Industrial Ethernet PoE Switch is a good choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Industrial Ethernet PoE Switch's Features:

LNK-IMC108 presents the following characteristics:

► 8 10/100Base-TX + 1 100Base-FX

► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

Industrial Ethernet PoE Switch's echnical Parameters:

Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Connector:	8 x RJ45
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs

Industrial Ethernet PoE Switch's Applications:

Industrial Ethernet Switch with 8×10/100Base-TX +1×100BASE-FX Ports 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC108	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC108-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC108S-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC108F-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC108-SFP	Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
	► SFP module is to be purchased separately.

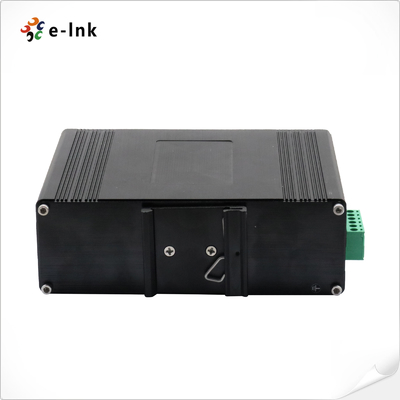

Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
