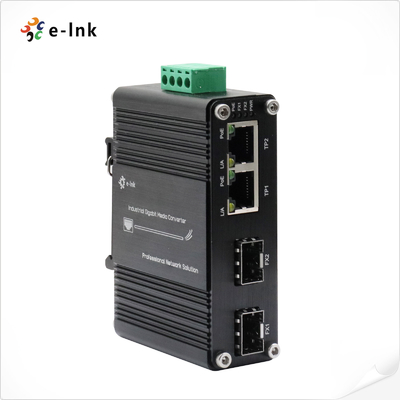

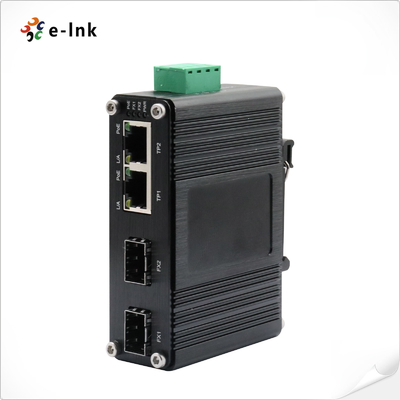

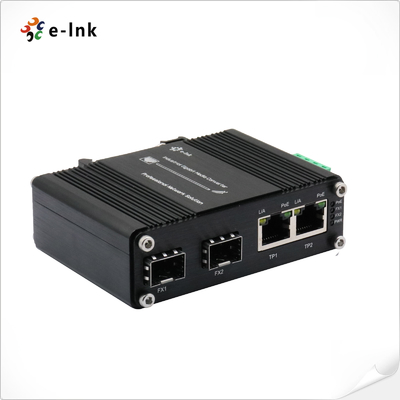

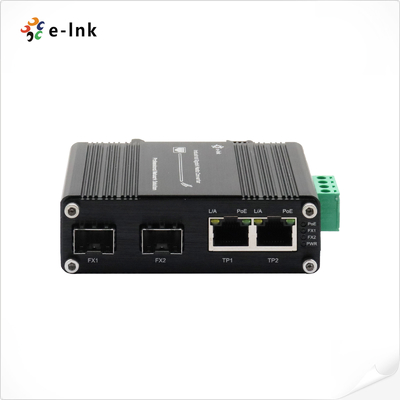

Mini Industrial Ethernet Switch with 2×10/100/1000T PoE Ports + 2×100/1000Base-X SFP Ports

Large Image : Mini Industrial Ethernet Switch with 2×10/100/1000T PoE Ports + 2×100/1000Base-X SFP Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC202GP-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 4 Port PoE Switch	Data Rate:	10/100/1000Mbps
Power Pin Assignment:	4/5(+), 7/8(-)	PoE Port:	2 Port 10/100/1000T 802.3at
Input Power:	12~48VDC	Dimensions (WxDxH):	95 X 70 X 30 Mm

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC202GP-SFP Series is a DIN rail type 802.3at 30W PoE Switch that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. This Industrial Ethernet PoE Switch supports 10/100/1000Base-T and 100/1000Base-X SFP Port. Also, this Industrial Ethernet PoE Switch port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Industrial Ethernet PoE Switch's Features:

ETH-IMC208MP presents the following characteristics:

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► 9K Bytes Jumbo Frame

► Power booster function with wide range 12~48VDC Power Input

Industrial Ethernet PoE Switch's echnical Parameters:

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	2 x SFP 1000Base-X or 100Base-FX (auto detection)

Industrial Ethernet PoE Switch's Applications:

Mini Industrial Ethernet Switch with 2×10/100/1000T PoE Ports + 2×100/1000Base-X SFP Ports 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC202GP-SFP	Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
