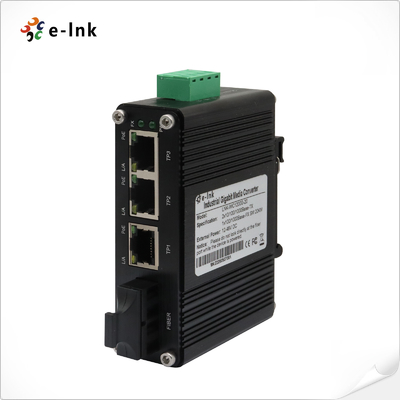

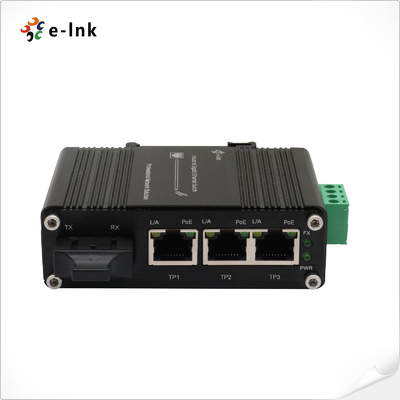

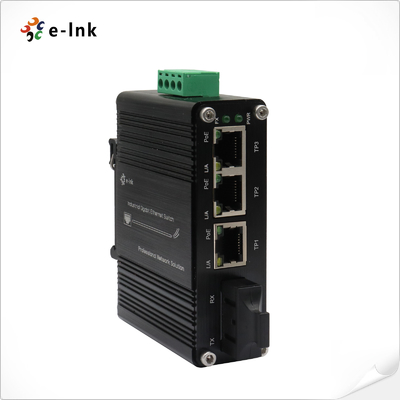

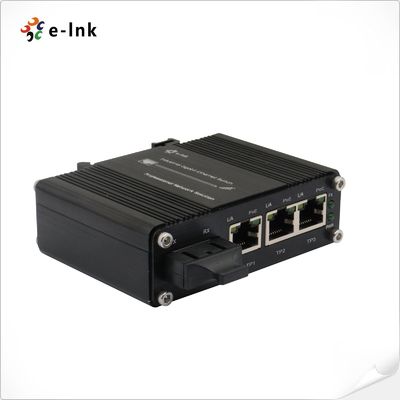

Mini Industrial Ethernet Switch with 3×10/100/1000T PoE Ports + 1×1000X SC Port

Large Image : Mini Industrial Ethernet Switch with 3×10/100/1000T PoE Ports + 1×1000X SC Port

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC103GP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Data Rate:	10/100/1000Mbps
Power Pin Assignment:	4/5(+), 7/8(-)	PoE Port:	3 Port 10/100/1000T 802.3at
Input Power:	48~57V DC	Dimensions (WxDxH):	95 X 70 X 30 Mm

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC103GP Series is a Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Industrial Ethernet PoE Switch's Features:

ETH-IMC208MP present the following features:

► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)

► 1 1000Base-X SC Port

► 12~48VDC wide range power input with power booster function

► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

Industrial Ethernet PoE Switch's echnical Parameters:

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	<95W (Non-PoE<6W)

Industrial Ethernet PoE Switch's Applications:

Mini Industrial Ethernet Switch with 3×10/100/1000T PoE Ports + 1×1000X SC Port 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
LNK-IMC103GP	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103GP-20	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GPS-20A	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GPS-20B	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 12~48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
