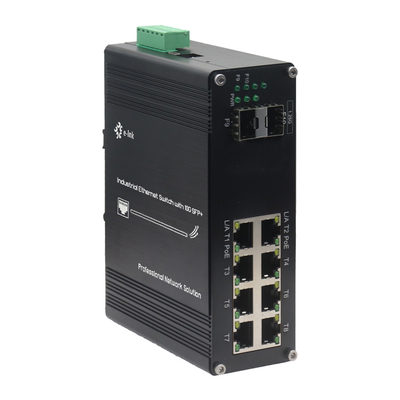

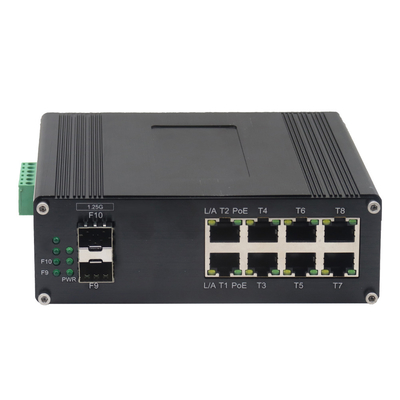

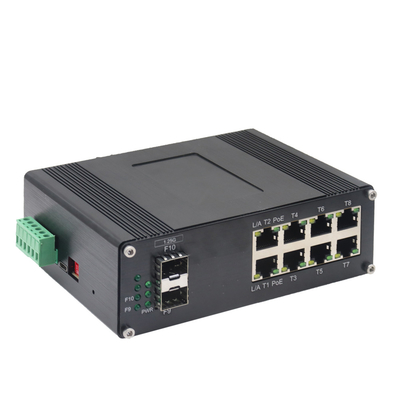

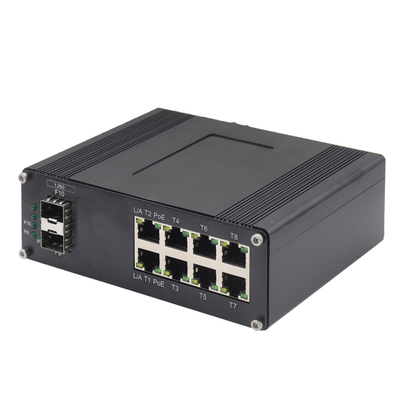

Industrial L2+Managed Ethernet Switch with 8×10/100/1000T 802.3at PoE Ports+ 2×1000X SFP Ports

Large Image : Industrial L2+Managed Ethernet Switch with 8×10/100/1000T 802.3at PoE Ports+ 2×1000X SFP Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	ETH-IMC408MP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Data Rate:	10/100/1000Mbps
Power Pin Assignment:	4/5(+), 7/8(-)	PoE Port:	8 Port 10/100/1000T 802.3at
Input Power:	48~57V DC	Dimensions (WxDxH):	149 X 114 X 50 Mm

Industrial Ethernet PoE Switch's Product Description:

ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Industrial Ethernet PoE Switch's Features:

ETH-IMC208MP supports 8x10/100/1000Base-T + 2x1000Base-X SFP, and its 10/100/1000Mbps RJ45 Port supports full/half-duplex, and auto-negotiation. What’s more, this Industrial Ethernet PoE Switch is compliant with IEEE802.3af/at. Additionally, this Industrial Ethernet PoE Switch can connect USB-C port for easy management, without the need to access the RS232 serial port at all.

Lastly, housed in extremely hard case, this Industrial Ethernet PoE Switch work in all kinds of tough environments.

Industrial Ethernet PoE Switch's echnical Parameters:

Ethernet
Standards	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3ae 10GBase-R
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Processing Type:	Store-and-Forward
Backplane bandwidth	110Gbps
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
Serial port line distance (copper)	1000 meters

Industrial Ethernet PoE Switch's Applications:

Industrial L2+Managed Ethernet Switch with 8×10/100/1000T 802.3at PoE Ports+ 2×1000X SFP Ports 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Industrial Ethernet PoE Switch’s Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Industrial Ethernet PoE Switch's Ordering Information:

Model	Description
ETH-IMC208MP	Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
	► Power Supply is to be purchased separately.
