Industrial 4 Port 10/100/1000T 802.3at PoE Switch plus 1 Port Gigabit RJ45 Uplink

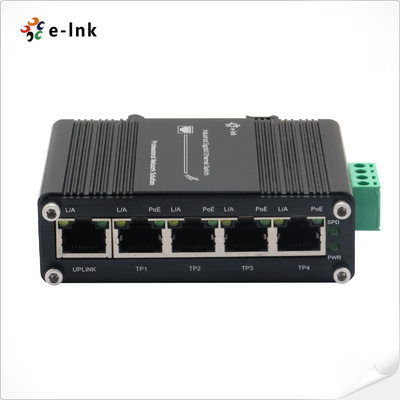

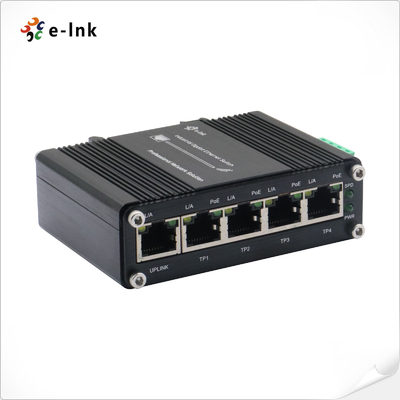

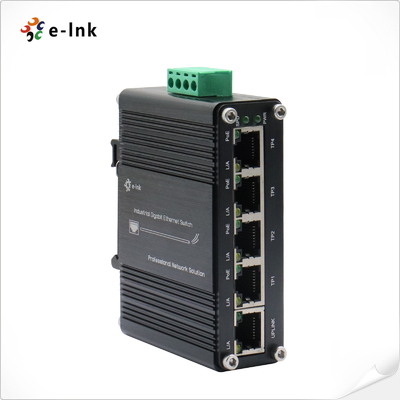

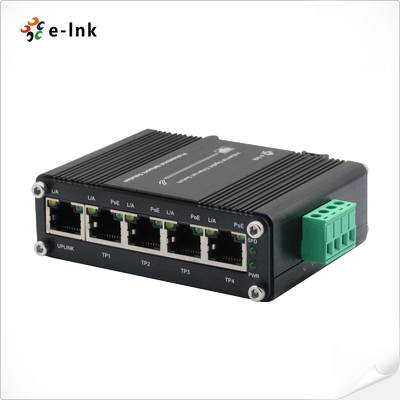

Large Image : Industrial 4 Port 10/100/1000T 802.3at PoE Switch plus 1 Port Gigabit RJ45 Uplink

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC005GP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 5 Port PoE Switch	Data Rate:	10/100/1000Mbps
PoE Port:	4 Port 10/100/1000T 802.3at	Uplink Port:	1 Port 10/100/1000T RJ45 Uplink
Power Pin Assignment:	4/5(+), 7/8(-)	Temperature Range:	-40℃ To 75℃

Industrial Ethernet PoE Switch's Product Description:

LNK-IMC005GP SeriesLNK-IMC005GP Series is a mini industrial 4 -port 10/100/1000BASE-T 802.3at PoE +1-Port 10/100/1000T Ethernet Switch with 12-48VDC wide range power input. This unmanaged Industrial Ethernet PoE Switch is designed to meet the most stringent requirements, industry standards, so it operates perfectly in high vibration and shock environments and works well in a variety of temperature conditions.
This Industrial Ethernet PoE Switch is a good economic choice for industrial Ethernet connectivity, and although this switch does not require configuration Settings, it still offers all the features needed for a reliable industrial connection.

Industrial Ethernet PoE Switch's Features:

This Industrial PoE Switch supports DIN-Rail and Wall-mount installation, and its budget is up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC). It has Industry standard design, dustproof and close design IP40, rugged high-strength metal case.

Industrial Ethernet PoE Switch's Technical Parameters:

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
PoE Budget:	Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<125W (Non-PoE<6W)
Power Input Overload:	Automatic Resettable
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case

Industrial Ethernet PoE Switch's Applications:

Industrial 4 Port 10/100/1000T 802.3at PoE Switch plus 1 Port Gigabit RJ45 Uplink 1

Industrial Ethernet PoE Switch's Support and Services:

Industrial Ethernet POE Switch technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

Industrial Ethernet PoE Switch's Packing and Shipping:

Industrial Ethernet POE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

Industrial Ethernet PoE Switch's rdering Information:

Model	Description
LNK-IMC005GP	Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
