E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Ethernet POE Switch | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| PoE Standard: | IEEE 802.3af/at/bt | Power Pin: | 4/5+/7/8- |
| Power Output: | 36W 12VDC (Terminal Block) | Power Consumption: | 41W Max. |
| Operating Temperature: | -40℃~+85℃ | Dimensions (WxDxH: | 95 X 70 X 30 Mm |

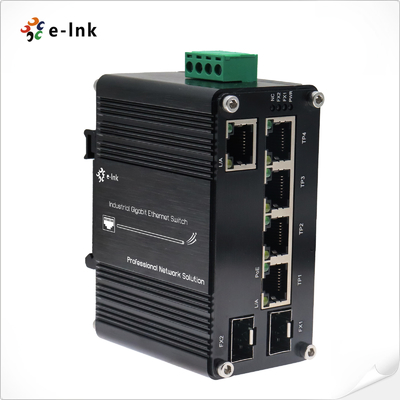

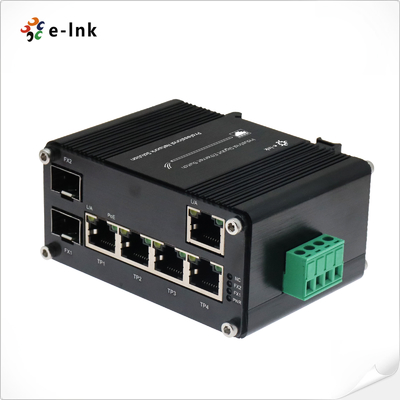

E-link LNK-IMC205GPD-SFP Series is a Mini Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough. This Industrial Ethernet POE Switch has an IEEE 802.3bt (Poe+ + / 4PoE) PD PoE port, with 95w power input, and 4 PSE PoE interfaces, and PoE budget power up to 71 W, which is Compliant with IEEE 802.3af/at/bt output. This Industrial Ethernet POE Switch integrates PD and power, where one device (PSE) can receive power and data from another PoE device and passthrough.
This Industrial Ethernet POE Switch is designed to provide PoE for IP devices deployed in sites where power is hard to come by, and this Industrial Ethernet POE Switch can scale up to four network ports, doubling the distance between PoE source and device from 100 meters (328 tons) to 200 meters (656 feet) thanks to its PoE pass-through technology that expands PoE connectivity. When this Industrial Ethernet POE Switch is used in this way, it also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places like ceilings and walls, while providing up to 30 WITO-compatible devices.
Industrial Ethernet PoE Switch's Features:
This Industrial Ethernet PoE Switch owns one IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, and four PSE PoE ports, PoE Power Budget up to 71 Watt, as well as two 100/1000BASE-X SFP slots for SFP type auto detection.

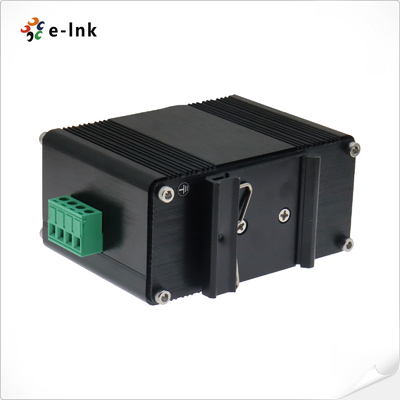

What’s more, this Industrial Ethernet PoE switch has IEEE 802.3af/at/bt Compliant Output, and Supports DIN-Rail installation. Additionally, its compact fanless design avoids overheating.
Finally, housed in IP40 rugged high-strength metal case , it can be applied under -40°C to 80°C (-40°F to 176°F) operating temperature.
Industrial Ethernet PoE Switch's Technical Parameters:
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3bt 4-pair Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 2Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 4K |
| Switch Fabric: | 14Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
We provide technical support and services for our Industrial Ethernet PoE Switch products.
We will help you with any technical questions or problems you may have, such as troubleshooting, installation, and configuration.
We are available for phone, email, and online chat support, and can provide assistance with any product issues you may have.
Our team of highly experienced technical support specialists can assist you with any product-related questions or problems.
If you need help with installation, troubleshooting, or configuration, please contact us and we will be more than happy to help.
Packaging of the Industrial Ethernet PoE Switch should include:
For shipping, the Industrial Ethernet PoE Switch should be packaged in a protective outer box for maximum protection. The box should be marked with the product's appropriate handling instructions, such as "Fragile, Handle with Care".
| Model | Description |
| LNK-IMC205GPD-SFP | Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► PoE Pass Through |
| ► Power Supply is to be purchased separately |
