Mini Gigabit Switch with 8×10/100/1000T 30W PoE Ports plus 2 RJ45 Uplink Ports

Name: Mini Gigabit Switch with 8×10/100/1000T 30W PoE Ports plus 2 RJ45 Uplink Ports
Brand: E-link
SKU: LNK-IMC010GP
Rating: 4.9 (116 reviews)

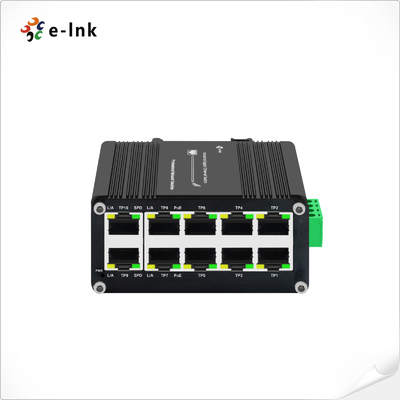

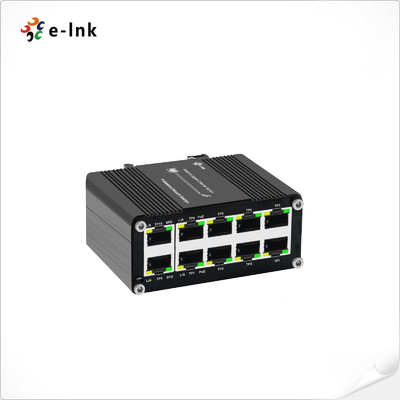

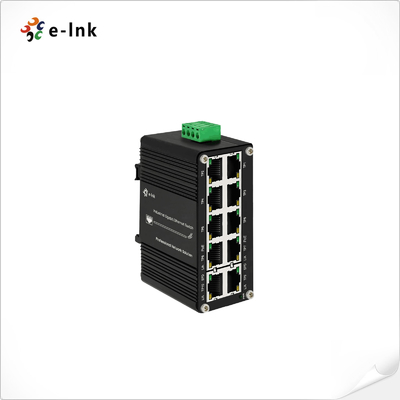

Large Image : Mini Gigabit Switch with 8×10/100/1000T 30W PoE Ports plus 2 RJ45 Uplink Ports

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC010GP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	Industrial 10 Port PoE Switch	Data Rate:	10/100/1000Mbps
Uplink Port:	2 Port 10/100/1000T RJ45 Uplink	PoE Port:	8 Port 10/100/1000T 802.3at
Power Pin Assignment:	4/5(+), 7/8(-)	Dimensions (WxDxH):	95 X 88 X 46mm

Industrial Ethernet PoE Switch's Technical Parameters:

Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Relative Humidity:	5% to 95% non-condensing
Power Input Overload:	Automatic Resettable
Weight:	400g
Casing:	Aluminum Case

Applications:

Mini Gigabit Switch with 8×10/100/1000T 30W PoE Ports plus 2 RJ45 Uplink Ports 0

Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

24/7 technical support
On-site troubleshooting and repairs
Remote technical support
Firmware updates and upgrades
Hardware replacement
Maintenance and preventive care
Customized system integration and optimization services

Packing and Shipping:

Industrial Ethernet POE Switch Packaging and Shipping:

Each Industrial Ethernet POE Switch is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
The box is then placed in a larger, outer box with additional packing materials to ensure the switch remains undamaged during transit.
The box is then sealed and shipped to the customer via a reliable shipping carrier.

Ordering Information:

Model	Description
LNK-IMC010GP	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately
