E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
Product Details:
Payment & Shipping Terms:
|
Keywords: | OS2 Fiber Patch Cable | Cable Length: | 50 Meters |
---|---|---|---|
Connector: | SC To SC | Fiber Port: | 2 Core |
Material: | LSZH | Color: | Black |
High Light: | OS2 Outdoor Armored Cable,LSZH Outdoor Armored Cable,SM Fiber Patch Cord 50 Meters |

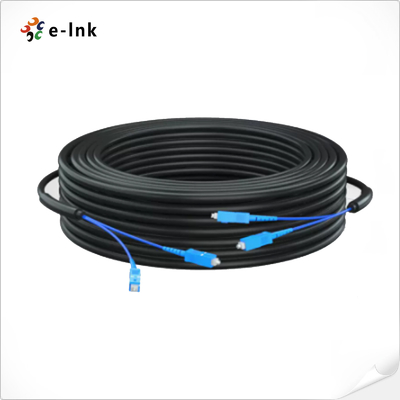

Outdoor Armored OS2 9/125μm 2 Core SM Fiber Patch Cable 50 Meters SC To SC Connector
Outdoor Armored Cable Advantages
►Outdoor Armored Cable, 9/125, 2-12 Core, Single mode
►Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
►Novel flute design, easily strip and splice, simplify the installation and maintenance
►Ceramic connectors ensure low signal loss, and high reliability
OS2 2-Core SM Fiber Patch Cable Technical Indexes
Fiber Type | OS2 9/125μm G.652D | |
Fiber Core | 2-12 | |
Material | PVC | |
Dimension | 850±50μm | |
Dimension | 2.8±0.1 mm | |
Material | SUS 204 | |
Material | Polyester yarn | |
Dimension | 5.0±0.2mm | |
Items | Unit | Specifications |
Crush(Long Term) | N/10cm | 300 |
Crush(Short Term) | N/10cm | 1000 |
Min. Bend Radius (Dynamic) | mm | 20D |
Min. Bend Radius (Static) | mm | 10D |
Operating Temperature | -40℃to +85℃ | |
Storage Temperature | -40℃to +85℃ |
Armored Fiber Patch Cable Overview
E-link Armored Fiber Patch Cable is considered ruggedized Fiber Optics. The transmission speeds are equal to common fiber optic cable, but the optical cable is equipped with a shield that is encased by a protective braid, which increases the durability. Armored Fiber Cable is designed to withstand in the harsh environments.
Ruggedized Fiber Optical Cable Ordering Information
Model | Description |
LNK-2OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable |
LNK-2OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable |
LNK-4OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable |
LNK-4OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable |
LNK-6OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable |
LNK-6OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable |
LNK-8OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable |
LNK-8OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable |
LNK-12OFC-SC-SC-50 | 50 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable |
LNK-12OFC-SC-SC-100 | 100 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable |
