Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial PoE Ethernet SFP Switch | Input Power: | 48~57VDC |
|---|---|---|---|
| Connector: | 4-Port 802.3at PoE Out | PoE Budget: | Up To 360-watt |
| Optical Port: | 2 Port SFP 1000Base-X Or 100Base-FX | Mounting Options: | DIN-Rail |
| Highlight: | 802.3bt PoE Gigabit Ethernet Switch,Gigabit Ethernet Switch 90W,Industrial PoE Ethernet SFP Switch |
||

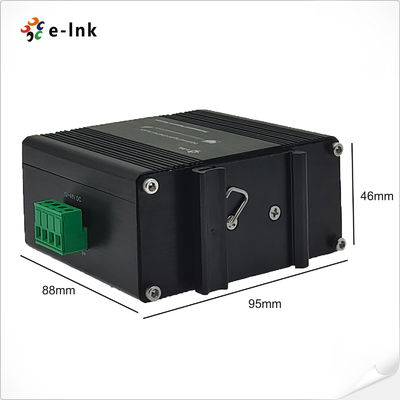

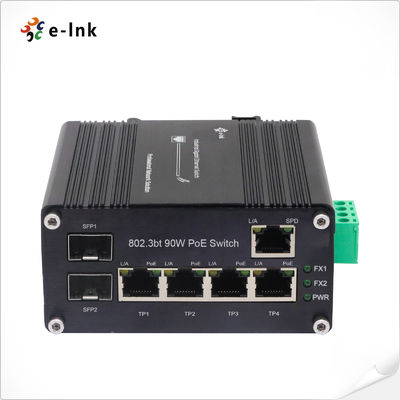

Industrial 4-Port 802.3bt 90W PoE + 1-Port RJ45 + 2-Port 100/1000X SFP Gigabit Ethernet Switch
Industrial Din Rail PoE Switch Advantages
►5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
►2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
►Complies with IEEE 802.3bt PoE Standard
►Up to 4 ports of IEEE 802.3bt/at/af devices powered
►Supports PoE power up to 95 watts for each PoE port
►Compact fanless design avoids overheating
►48~57V DC redundant power with reverse polarity protection
5-port Gigabit Ethernet Fiber Switch Overview
LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.
Unmanaged SFP Ethernet Switch Technical Indexes
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Network Cables |
Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
| Connector: | 5 x RJ45 (4-Port 802.3at PoE Out) |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Power Pin Assignment: |
Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Budget: | Up to 360-watt PoE budget |
| Input Power: | 48~57VDC (Terminal Block) |
| Power Consumption: | 382W Max. (PoE in use) |
| <5W (PoE not in use) |
90W 802.3bt PoE Fiber Ethernet Switch Ordering Information
| Model | Description |
| LNK-IMC205GHP-SFP | Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately |
