4 Channel Serial To Fiber Optic Media Converter RS232 RS485 SFP Port 12 - 48VDC

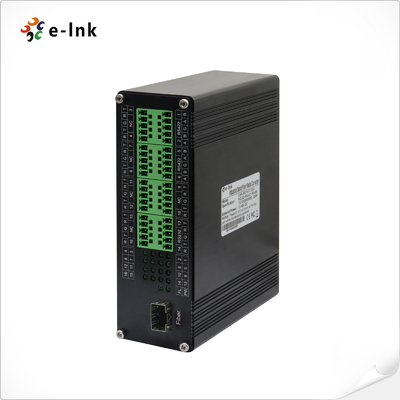

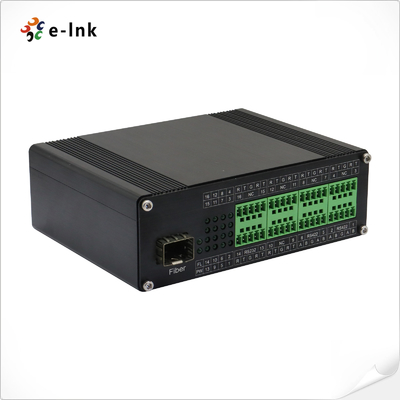

Large Image : 4 Channel Serial To Fiber Optic Media Converter RS232 RS485 SFP Port 12 - 48VDC

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ROHS,FCC,CE
Model Number:	LNK-IRS232/485-C04-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Serial To Fiber Optic Media Converter Standard Export Package
Delivery Time:	5-12 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	500pcs/month

Contact Now

Detailed Product Description

Keyword:	Serial To Fiber Optic Media Converter	Fiber Interface:	SFP Port
Data Type:	4Ch RS232 / RS485 Bi-Direction	Power Input:	12~48VDC
Baud Rate:	0 ~ 800kbps	Casing:	IP40 Aluminum Case
Highlight:	SFP Serial To Fiber Optic Media Converter , 48VDC Serial To Fiber Optic Media Converter , SFP Port Serial To Fiber Converters

Serial To Fiber Optic Media Converter Industrial 4 Channel RS232 RS485 Serial To Fiber Converters SFP Port
Serial To Fiber Optic Media Converter Advantages

► Supports SFP, FC, SC or ST Multi-mode 2Km, Single-mode 20Km

► The high-speed serial data can be used for DMX512 communication in Stage Lighting Control

► Supports Reverse Polarity Protection

► IP40 Aluminum Case
► Supports Input Voltage 12 ~ 48VDC
Technical Indexes

Fiber Optical Interface
Fiber interface	SFP, FC, SC or ST
Cable requirement	Multi-Mode: 50/125um, 62.5/125um Single-Mode: 9/125um
Fiber port	1 Fiber Port
Transmission distance	Multi-Mode: 2km Single-Mode: 20km
Wavelength	1310nm/1490nm/1550nm
RS232 Serial Interface
Physical interface	Industrial standard screw terminal
Data type	Up to 4Ch RS232 Bi-Direction
RS-232 signals	TxD, RxD, GND
Serial port line distance (copper)	15 meters
Baud Rate	0 ~ 800kbps
RS485 Serial Interface
Physical interface	Industrial standard screw terminal
Data type	Up to 4Ch RS485 Bi-Direction
RS-485 signals	Data+, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps

Overview

The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security, and confidentiality of data communication, and can be widely used in various industrial control, process control, Stage Lighting Control, and traffic control occasions.

4 Channel Serial To Fiber Optic Media Converter RS232 RS485 SFP Port 12 - 48VDC 0
Ordering Information

Part Number	Description
LNK-IRS232-C04-SFP	Industrial 4Ch RS-232 Serial to Fiber Converter, SFP Port (not including SFP modules), -40°C ~ 80° C
LNK-IRS485-C04-SFP	Industrial 4Ch RS-485 Serial to Fiber Converter, SFP Port (not including SFP modules), -40°C ~ 80° C
