Industrial Serial To Fiber Optic Media Converter 4 Channel RS422 FC Port

Name: Industrial Serial To Fiber Optic Media Converter 4 Channel RS422 FC Port
Brand: E-link
SKU: LNK-IRS422-C04-FC
Rating: 4.8 (145 reviews)

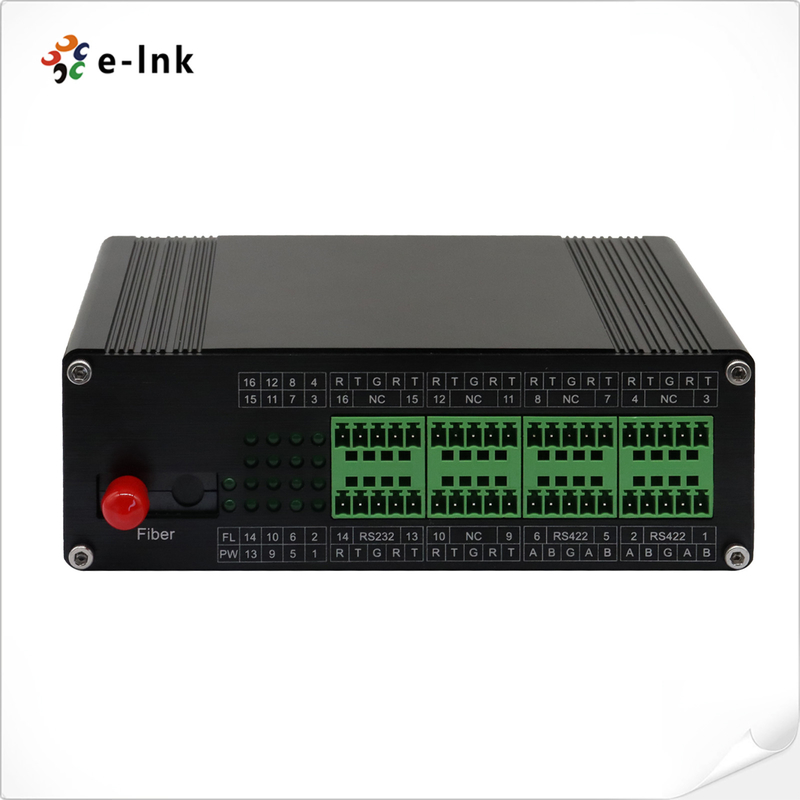

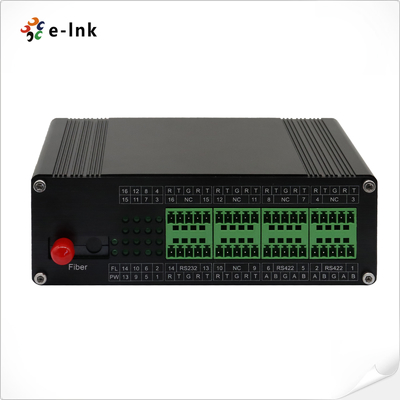

Large Image : Industrial Serial To Fiber Optic Media Converter 4 Channel RS422 FC Port

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ROHS,FCC,CE
Model Number:	LNK-IRS422-C04-FC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Serial To Fiber Optic Media Converter Standard Export Package
Delivery Time:	5-12 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	500pcs/month

Contact Now

Detailed Product Description

Keyword:	Serial To Fiber Optic Media Converter	Fiber Interface:	FC Port
Data Type:	RS422 Bi-Direction	Application:	DMX512 Communication
Operating Temperature:	-40°C To 80°C	Warranty:	5-Year
High Light:	FC Serial To Fiber Optic Media Converter , RS422 Serial To Fiber Optic Media Converter , Fanless rs422 to fiber optic converter

Serial To Fiber Optic Media Converter Industrial 4 Channel RS422 Serial To Fiber Media Converter FC Port
Serial To Fiber Optic Media Converter Advantages
► Fan-less and Din-Rail design for Harsh Industrial Environment
► Built in Bi-Directional RS422(Terminal Block) Serial Port
► Supports Multi-Channel Serial Data Ports
► Serial data is fully transparent, baud rate is self-adaptive, no setting is required
► Supports Input Voltage 12 ~ 48VDC
► Supports Reverse Polarity Protection

Technical Indexes

RS422 Serial Interface
Physical interface	Industrial standard screw terminal
Data type	Up to 4Ch RS422 Bi-Direction
RS-422 signals	Tx+, Tx-, Rx+, Rx-, GND
Serial port line distance (copper)	1000 meters
Baud Rate	0 ~ 800kbps
Power Requirements
Power input	12~48VDC
Power consumption	<6W
Power connector	Terminal block
Power protection	Reverse polarity protection
LED Indicator
PWR	Power Supply
FL	Fiber Link Status
Data 1~16	Serial Data Signal
Mechanical
Dimensions (LxWxH)	119 x 114 x 50mm
Weight	0.55KG
Casing	Aluminum Case
Mounting Options	DIN-Rail Mount

Overview

E-link LNK-IRS series is an industrial grade 4-Channel RS422 to fiber optic converter which converts a standard RS422 signal to a fiber optic link as to extend the signal up to 2KM on multimode fiber and 20KM on single mode fiber. It greatly improves the reliability, security, and confidentiality of data communication, and can be widely used in various industrial control, process control, Stage Lighting Control, and traffic control occasions.

Ordering Information

Part Number	Description
LNK-IRS422-C04-FC	Industrial 4Ch RS-422 Serial to Fiber Converter, Multi-Mode, 1310nm, Dual Fiber, 2KM, FC, -40°C ~ 80°C
LNK-IRS422-C04-FC-20	Industrial 4Ch RS-422 Serial to Fiber Converter, Single-Mode, 1310nm, Dual Fiber, 20KM, FC, -40°C ~ 80°C
LNK-IRS422-C04-FC-S20A	Industrial 4Ch RS-422 Serial to Fiber Converter, Single-Mode, Single Fiber, 1310nm Tx/1550nm RX, 20KM, FC, -40°C ~ 80°C
LNK-IRS422-C04-FC-S20B	Industrial 4Ch RS-422 Serial to Fiber Converter, Single-Mode, Single Fiber, 1550nm Tx/1310nm RX, 20KM, FC, -40°C ~ 80°C
