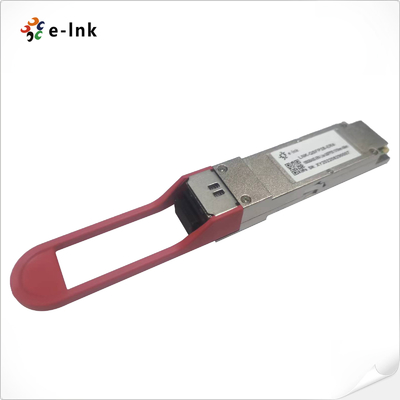

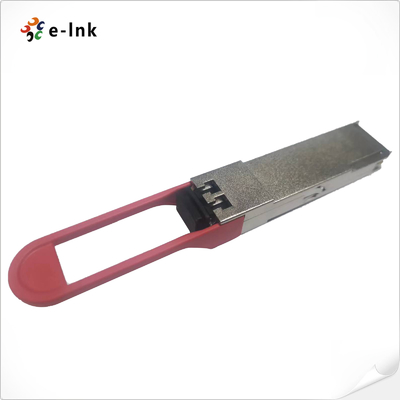

Fiber Optic Module Commercial 100G 40KM QSFP28 Transceiver Single Mode Duplex LC
100G Optical Fiber Transceiver Advantages
► Aggregate bandwidth of > 100Gbps
► Built-in digital diagnostic functions
► Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF with FEC (30km without FEC)
► Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Overview
The T8PLHG30D is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Note |
||
|
Data Rate per Channel |
|
- |
25.78125 |
|
Gbps |
|
||
|
Power Consumption |
|
- |
3.6 |
5 |
W |
|
||
|
Supply Current |
Icc |
|
1.1 |
1.5 |
A |
|
||
|
Control I/O Voltage-High |
VIH |
2.0 |
|
Vcc |
V |
|
||
|
Control I/O Voltage-Low |
VIL |
0 |
|
0.7 |
V |
|
||
|
Inter-Channel Skew |
TSK |
|
|
35 |
Ps |
|
||
|
RESETL Duration |
|
|
10 |
|
Us |
|
||
|
RESETL De-assert time |
|
|
|
100 |
ms |
|
||
|
Power On Time |
|
|
|
100 |
ms |
|
||
|
Transmitter |
||||||||
|
Single Ended Output Voltage Tolerance |
|
0.3 |
|
Vcc |
V |
1 |
||
|
Common mode Voltage Tolerance |
|
15 |
|
|
mV |
|
||
|
Transmit Input Diff Voltage |
VI |
150 |
|
1200 |
mV |
|
||
|
Transmit Input Diff Impedance |
ZIN |
85 |
100 |
115 |
|
|
||
|
Data Dependent Input Jitter |
DDJ |
|
0.3 |
|
UI |
|
||
|
Receiver |
||||||||
|
Single Ended Output Voltage Tolerance |
|
0.3 |
|
4 |
V |
|
||
|
Rx Output Diff Voltage |
Vo |
370 |
600 |
950 |
mV |
|
||
|
Rx Output Rise and Fall Voltage |
Tr/Tf |
|
|
35 |
ps |
1 |
||
|
Total Jitter |
TJ |
|
0.3 |
|
UI |
|||
Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
LNK-QSFP28-ER4 |
100G QSFP28 1310nm 40km ER4 LC Lite |
