40G QSFP BIDI Transceiver Duplex LC OM4 Multi Mode 850nm 150m

Name: 40G QSFP BIDI Transceiver Duplex LC OM4 Multi Mode 850nm 150m
Brand: E-link
SKU: LNK-QSFP-SRBD
Rating: 5 (173 reviews)

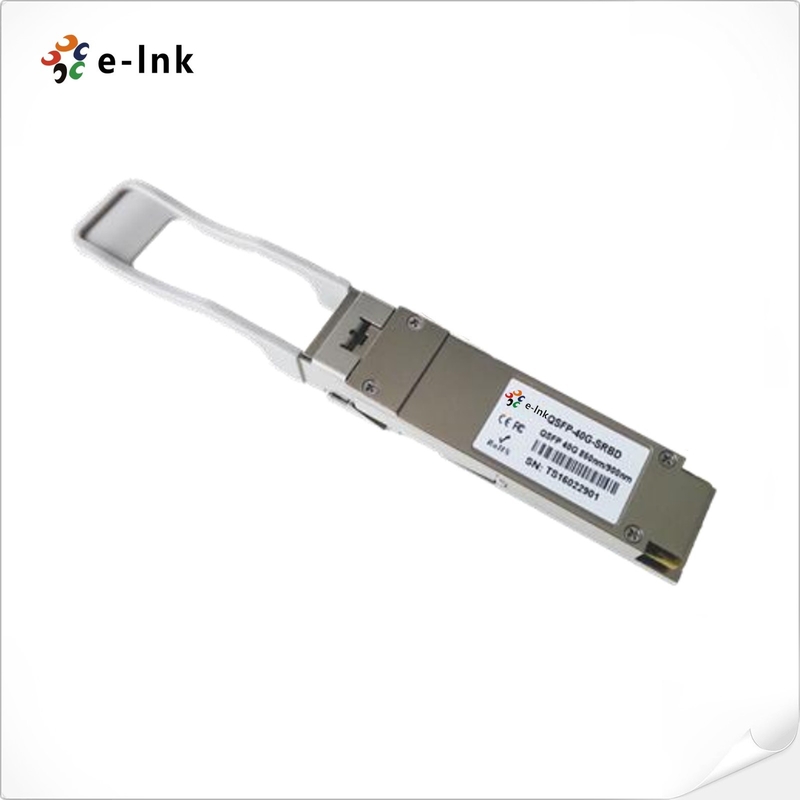

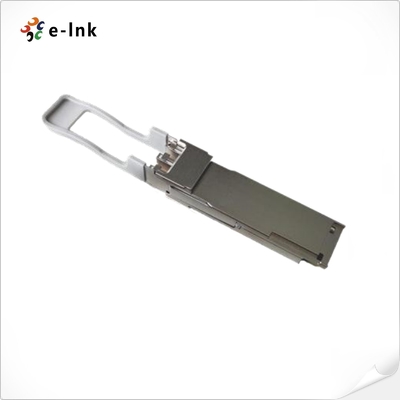

Large Image : 40G QSFP BIDI Transceiver Duplex LC OM4 Multi Mode 850nm 150m

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-QSFP-SRBD

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	SFP Fiber Transceiver Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	20000pcs/per month

Contact Now

Detailed Product Description

Keywords:	SFP Module	Data Rate:	40Gbps Ethernet
Fiber Cable:	Duplex LC OM4	Wavelength:	850nm
Transmission Distance:	150m	Temperature Range:	0°C To 70°C
High Light:	40G QSFP BIDI Transceiver , Duplex LC QSFP BIDI Transceiver , 150m QSFP BIDI Transceiver

Fiber Optic Module 40G QSFP BIDI Transceiver Duplex LC OM4 Multi Mode 850nm 150m
QSFP+ Transceiver Module Advantages
► Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010

► Compliant to QSFP+ SFF-8436 Specification

► Aggregate bandwidth of > 40Gbps

► Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Applications

► 40 Gigabit Ethernet interconnects

► Datacom/Telecom switch & router connections

► Data aggregation and backplane applications

► Proprietary protocol and density applications

Overview

It is a Four-Channel,Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.
