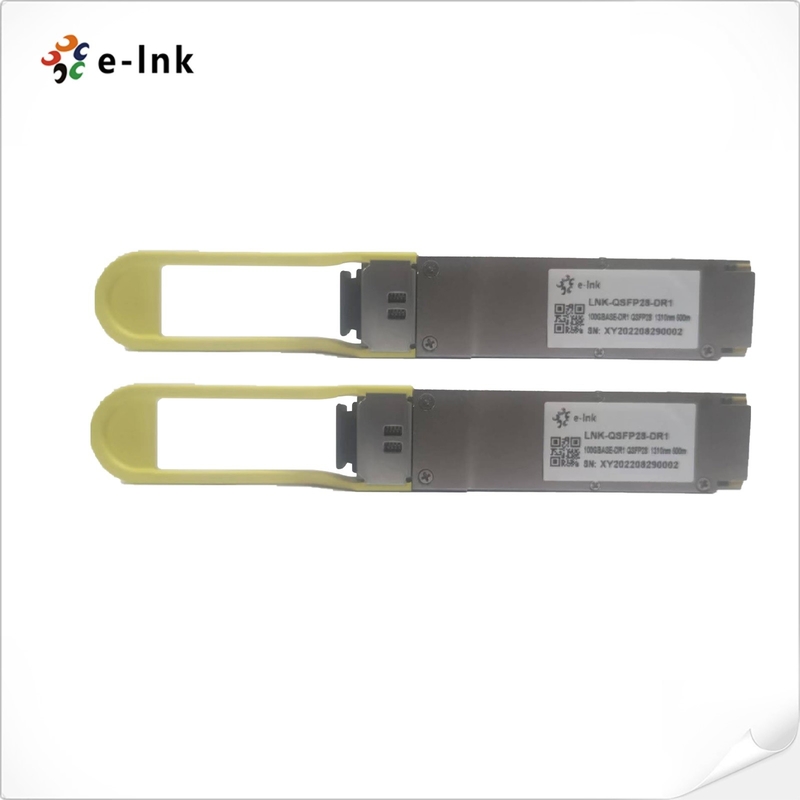

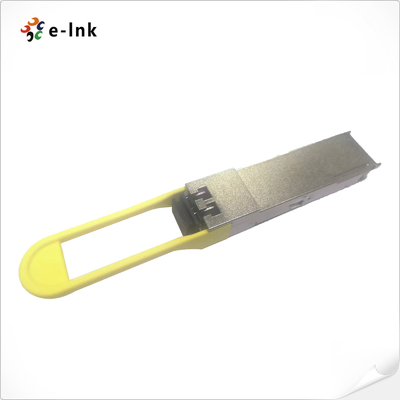

QSFP28 Optical Module Transceiver 100GBASE-DR1 1310nm 500m Duplex LC Connector

QSFP28 Optical Module Transceiver 100GBASE-DR1 1310nm 500m Duplex LC Connector
QSFP28 Optical Module Transceiver 100GBASE-DR1 1310nm 500m Duplex LC Connector QSFP28 Optical Module Transceiver 100GBASE-DR1 1310nm 500m Duplex LC Connector

Large Image :  QSFP28 Optical Module Transceiver 100GBASE-DR1 1310nm 500m Duplex LC Connector

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-QSFP28-DR1
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: SFP Fiber Transceiver Standard Export Package
Delivery Time: 7 Working days
Payment Terms: Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability: 20000pcs/per month
Detailed Product Description
Keywords: SFP Optical Transceiver Data Rate: 100GE
Wavelength: 1310nm Fiber Type: Single Mode Duplex LC
Transmission Distance: 500M Operating Temperature: 0°C ~ 70°C
Highlight:

QSFP28 DR1 optical module transceiver

,

Duplex LC optical module transceiver

,

100G optical module transceiver

QSFP28 Optical Module 100GBASE-DR1 1310nm 500m Transceiver Duplex LC Connector
100G QSFP Transceiver Advantages
► Compliant with QSFP28 Standard: SFF-8636 Rev 2.10a
► High speed I/O electrical interface (CAUI-4)
► QSFP28 MSA package with duplex LC connector
► Two Wire Serial Interface with Digital Diagnostic Monitoring
► KP4 FEC termination inside module

Transmitter Optical Specifications

Parameter Symbol Min. Typical Max. Unit Notes
Wavelength λC 1304.5 1311 1317.5 nm
Side mode suppression ratio SMSR 30 - - dB
Average Optical Launch Power POUT -2.9 - 4 dBm 1
Average launch power of OFF transmitter POUT_OFF - - -15 dBm
Extinction Ratio ER 3.5 - - dB
Outer Optical Modulation Amplitude (OMAouter) OMAouter -0.8 - 4.2 dBm
Launch power in OMAouter minus



OMAouter- TDECQ



TDECQ:

for extinction ratio ≥ 5 dB



-2.2

- - dBm
for extinction ratio < 5 dB -1.9
Transmitter and dispersion eye closure TDECQ - - 3.4 dB
TDECQ – 10log10(Ceq) CEQ - - 3.4 dB
RIN15.5OMA RIN - - -136 dB/Hz
Optical return loss tolerance ORLT - - 15.5 dB
Transmitter transition time   - - 17 ps
Transmitter reflectance TR - - -26 dB

Receiver Optical Specifications

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Wavelength

λC

1304.5

1311

1317.5

nm



Damage Threshold



5

-

-

dBm



Average receive power



-5.9

-

4

dBm

1

Receive power (OMAouter)

RP

-

-

4.2

dBm



Receiver reflectance

RR

-

-

-26

dB



Receiver sensitivity (OMAouter)

RS

-

-

Max(-3.9, SECQ-5.3)

dBm



Stressed receiver sensitivity

SRS

-

-

-1.9

dBm

2

Stressed Receiver Sensitivity Test Conditions:

-

-

  -

QSFP28 Optical Module Transceiver 100GBASE-DR1 1310nm 500m Duplex LC Connector 0

QSFP28 Optical Module Transceiver 100GBASE-DR1 1310nm 500m Duplex LC Connector 1

Ordering Information

Part Number

Application

Data Rate

Laser Source

Fiber Type

LNK-QSFP28-DR1

100GBASE-DR

100GE (53.125 GBd)

1311nm EML

SMF
