1 Port 100BASE SC POE Fiber Media Converter RJ45 Auto MDI Industrial

Name: 1 Port 100BASE SC POE Fiber Media Converter RJ45 Auto MDI Industrial
Brand: E-link
SKU: LNK-IMC1200P60
Rating: 4.6 (190 reviews)

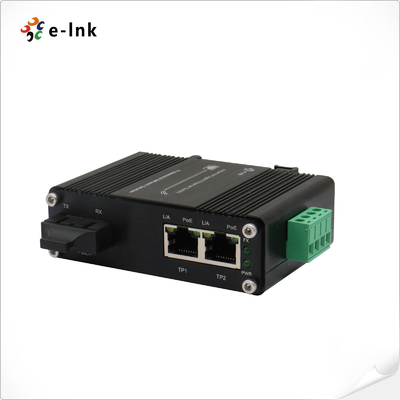

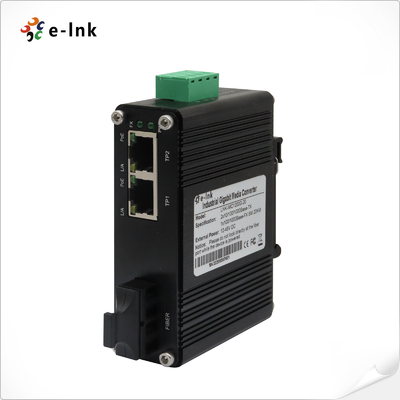

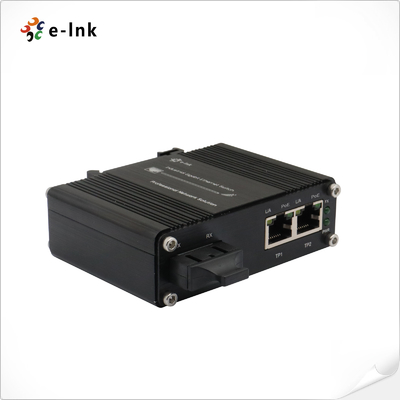

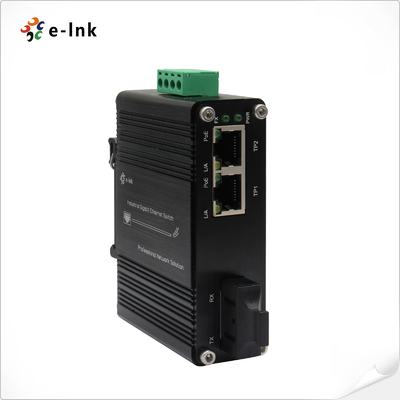

Large Image : 1 Port 100BASE SC POE Fiber Media Converter RJ45 Auto MDI Industrial

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs
Model Number:	LNK-IMC1200P60

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	1 piece in 1 carton box
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Input Power::	48-57VDC, 2-pin Terminal Block	Output Power:	48VDC
Power Consumption::	125W Max	Dimensions (WxDxH)::	95 X 70 X 30 Mm
Mounting Options:	DIN-Rail / Wall-mount	Weight::	0.25Kg
Highlight:	SC POE Fiber Media Converter , RJ45 POE Fiber Media Converter , Auto MDI Industrial Media Converter

Mini Industrial 60W PoE++ Media Converter 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE
1 Port 100BASE SC POE Fiber Media Converter RJ45 Auto MDI Industrial 0
Overview
The LNK-IMC1200P60 Series provides media conversion between 2-Port 10/100BASE-T and 1-Port 100BASE-FX Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1200P60 Series is easy to mount on a DIN rail or in distribution boxes.
Features

2-port 10/100BASE-T RJ45 with auto MDI/MDI-X function
1-Port 100Base-FX SC
IEEE802.3af/at compliant
Up to 60W of power over 4-pairs
Supports Link Fault Pass Through
Supports Full/Half-duplex, Auto-negotiation
9K Bytes Jumbo Frame
48~57VDC Terminal Block Power Input

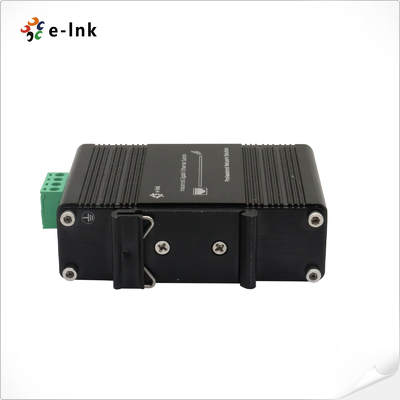

Supports DIN-Rail & Wall-mount installation
Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3x Full duplex and flow control
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	48~57VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	125W Max.

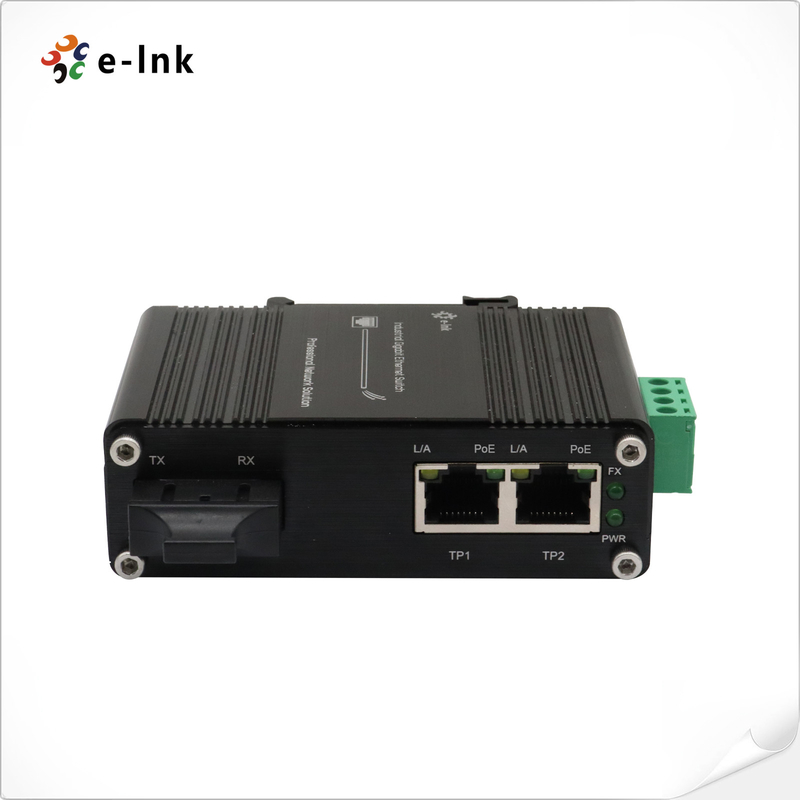

LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Order Information

Model	Description
LNK-IMC1200P60	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200P60S-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
