Mini 24G SDI Fiber Optic Converter With 2 Channel 12G SDI Video 2x12G SFP 1xLC Fiber

Large Image : Mini 24G SDI Fiber Optic Converter With 2 Channel 12G SDI Video 2x12G SFP 1xLC Fiber

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-M24G-2F1-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	Negotiation
Packaging Details:	SDI Fiber Optic Converter Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram
Supply Ability:	2000 pairs/month

Contact Now

Detailed Product Description

Keywords:	24G-SDI Video Fiber Converter	Output:	2x 12G-SDI On BNC
Fiber Port:	2 X 12G-SDI 1 X LC Fiber	Resolution Range:	2160p/4k@120, 8k@60Hz
Storage Temperature:	-40℃～80℃	Dimensions:	80 X 40 X 20 (mm)
Highlight:	24G SDI Fiber Optic Converter , Broadcasting SDI Fiber Optic Converter , Camcorder SDI To Fiber Optic Converter

Mini 24G-SDI Fiber Converter With 2-Channel 12G-SDI Video 2x12G SFP 1xLC Fiber
24G-SDI Fiber Optical Converter Application

► Video production

► Broadcasting

► Camcorder

► Studio-to-studio

► Live events

► Medical imaging displays

► Mobile video

► 24G/12G/6G/3G/HD/SD-SDI CCTV

Fiber Video Extender Technical Indexes

Formats	Supports UHD-2 or 24G UH D-SDI, SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible With D VB-AS I and AES10 (MADI)
Input	2 x 12G-SDI on BNC
Fiber	2 x 12G-SDI 1*LC fiber
Output	2x 12G-SDI on BNC
Supported Resolution	HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P
Resolution range	2160p/4k@120,8k@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤70m@12G SDI Belden 1694A
Data type	Backward Tally (optional)
Data type	Backward RS485 (optional)

Overview

LNK-M24G-2F1 Series Mini-type 24G-SDI Fiber Converter supports 2-channel 12G Video (audio embedded) transmitted via fiber optical cable.E-link 24G Video over Fiber Converters includes one transmitter and one receiver for HDTV 2160p/4k@120,8k@60, 1080P,1080I, 720P. The 24G-SDI Fiber Converter supports transmission of up to 12 G bps of digital video within television broadcasting facilities and between professional video equipment.

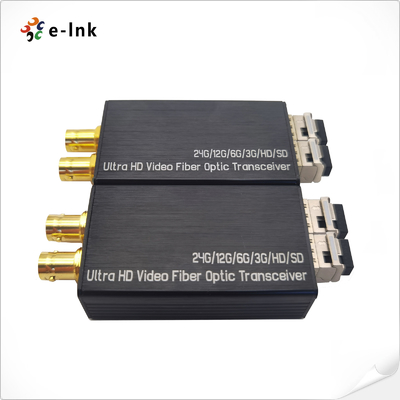

Mini 24G SDI Fiber Optic Converter With 2 Channel 12G SDI Video 2x12G SFP 1xLC Fiber 0

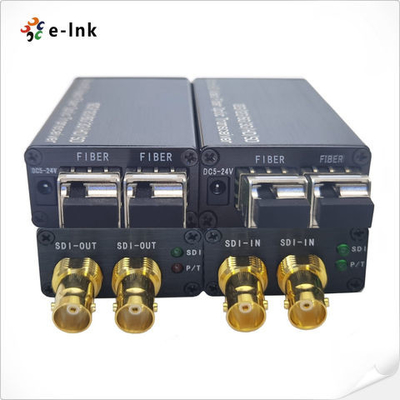

Mini 24G SDI Fiber Optic Converter With 2 Channel 12G SDI Video 2x12G SFP 1xLC Fiber 1
Ordering Information

Model	Description
LNK-M24G-2F1-20	Mini 24G-SDI to Fiber Converter: 2Ch 12G-SDI Video, 212G SFP(1LC) Fiber Connector, Single Mode, 20KM, including Transmitter and Receiver, used by pairs
