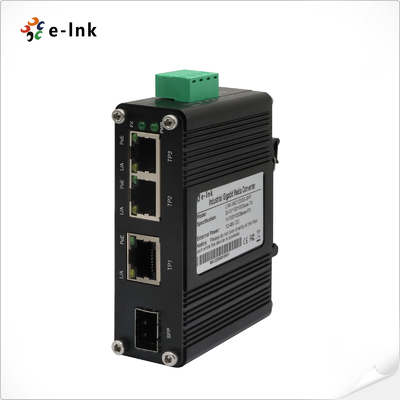

Mini Industrial 3-Port Gigabit PoE+ Switch with 1 SFP 12-48VDC Booster

Large Image : Mini Industrial 3-Port Gigabit PoE+ Switch with 1 SFP 12-48VDC Booster

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC103GP-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$75-$89
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	3× RJ45 PoE+ (Ports 1-3), 1× SFP 100/1000X (auto-detect)	PoE Budget:	90W @ 48VDC / 90W @ 24VDC / 60W @ 12VDC
Switch Fabric:	12Gbps \| Packet Buffer: 4Mbit \| MAC Table: 2K	Input Power:	12~48VDC, 2-pin Terminal Block \| Power Consumption <95W
Casing:	IP40 Aluminum \| Size: 95×70×30 Mm \| Weight: 0.3Kg	Mounting:	DIN-Rail / Wall-mount

Mini Industrial 3-Port Gigabit PoE+ Switch with 1 SFP 12-48VDC Booster

Overview

The LNK-IMC103GP-SFP is a compact industrial PoE+ switch designed for harsh

environments and energy-efficient networks. Featuring 3 Gigabit RJ45 PoE+ ports and 1

SFP port (100/1000X auto-detect), it delivers up to 90W total PoE power with a wide

12~48VDC input and integrated voltage booster. Its rugged IP40 aluminum housing

ensures reliable operation from -40°C to 75°C, making it ideal for industrial automation,

surveillance, solar-powered systems, and other outdoor or vibration-prone deployments.

Features

3× 10/100/1000 RJ45 PoE+ ports (802.3af/at) – up to 90W total power

1× SFP Port (100/1000X dual mode) – flexible fiber uplink

12~48VDC wide range input with built-in voltage booster

DIN-Rail & Wall-mount support for easy deployment

Environmentally hardened: -40°C to +75°C operating temperature

Energy Efficient Ethernet (IEEE 802.3az) for lower power consumption

Compact rugged design in IP40 aluminum case

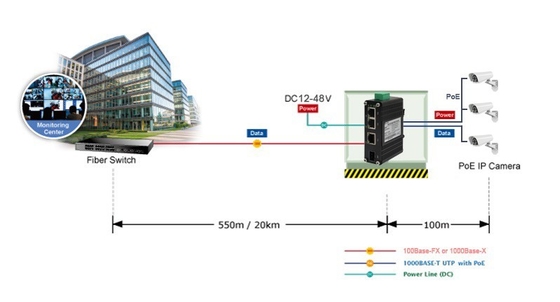

Suitable for CCTV, IoT, industrial automation, and solar applications

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	<95W (Non-PoE<6W)
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.3Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC103GP-SFP	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 12~48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
