Mini Industrial 2xGigabit to 1000FX Media Converter -40~75°C DIN-Rail

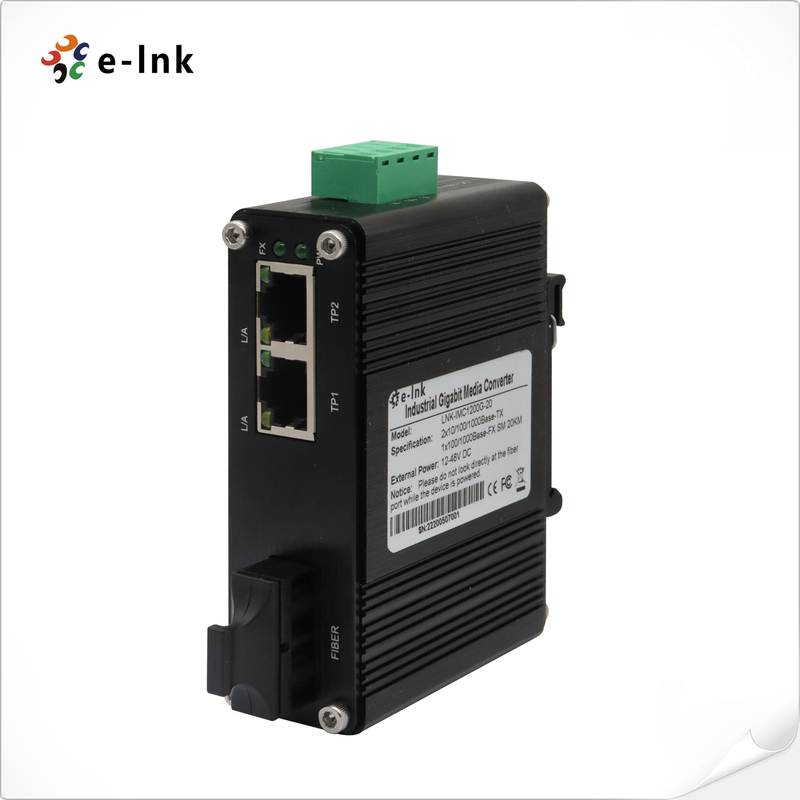

Large Image : Mini Industrial 2xGigabit to 1000FX Media Converter -40~75°C DIN-Rail

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	The LNK-IMC1200G
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$59-$85
Packaging Details:	Industrial Ethernet Media Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ethernet Ports:	2 X RJ45 10/100/1000Base-T (auto MDI/MDI-X)	Input Power:	12~48VDC, 2-pin Terminal Block
Power Consumption:	Max. 5W	Max Packet Length:	9K Bytes (Jumbo Frame)
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Installation:	DIN-Rail / Wall-mount

Mini Industrial 2xGigabit to 1000FX Media Converter -40~75°C DIN-Rail

Overview

The LNK-IMC1200G Series is a rugged industrial-grade media converter designed to

connect 2-Port 10/100/1000Base-T Ethernet with 1-Port 1000Base-X fiber. Featuring jumbo

frame support, Energy Efficient Ethernet, and a durable aluminum housing, it delivers reliable

performance in harsh environments. With a wide -40°C to 75°C operating range and flexible

DIN-rail or wall-mount installation, it is ideal for industrial automation, transportation, and

outdoor networking applications.

Features

Converts 2 x 10/100/1000BASE-T RJ45 to 1 x 1000Base-X SC fiber

Supports full/half-duplex and auto MDI/MDI-X

Jumbo frame support up to 9K Bytes

Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption

Hardened aluminum casing for industrial durability

Wide operating temperature range: -40°C to 75°C

DIN-rail or wall-mount installation options

Low power consumption, max 5W

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3z 1000Base-X
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 1000Base-X
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1200G	Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC1200G-20	Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200G-S20	Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
