Mini Industrial 2xFast Ethernet to 100FX Media Converter -40~75°C

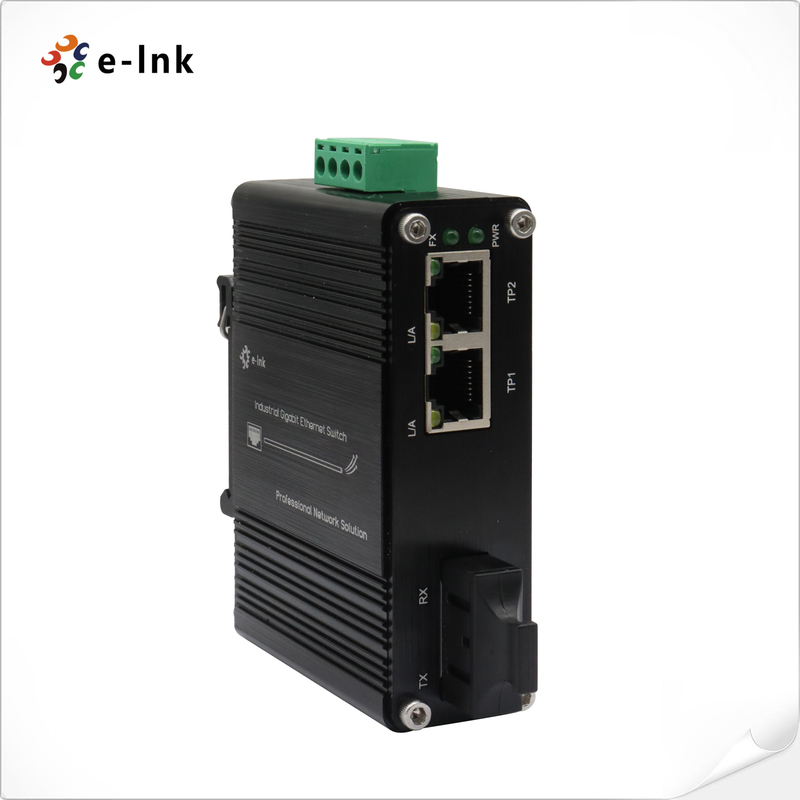

Large Image : Mini Industrial 2xFast Ethernet to 100FX Media Converter -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	ISO9001, CE, FCC, RoHS
Model Number:	LNK-IMC1200 Series
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$45-$65
Packaging Details:	Industrial Ethernet Media Converter Standard Export Package
Delivery Time:	5-8 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Data Rate:	10/100Mbps	Fiber Port:	1 X SC 100Base-FX
Ethernet Ports:	2 X RJ45 10/100BASE-T (auto MDI/MDI-X)	Input Power:	12~48VDC, 2-pin Terminal Block
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Installation:	DIN-Rail / Wall-mount

Mini Industrial 2xFast Ethernet to 100FX Media Converter -40~75°C

Overview

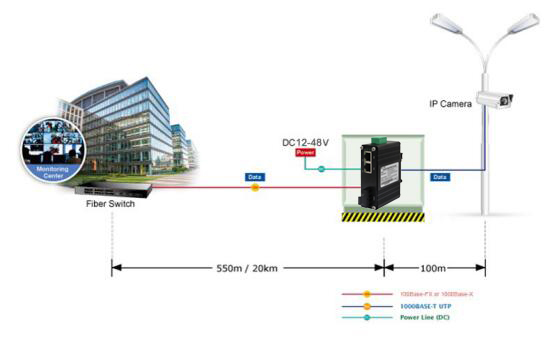

The LNK-IMC1200 Series is a compact industrial-grade media converter that bridges 2-Port

10/100BASE-T Ethernet with 1-Port 100Base-FX fiber. Designed for harsh environments, it

features a wide -40°C to 75°C operating range, rugged aluminum housing, and flexible

DIN-rail or wall-mount installation. With Energy Efficient Ethernet and store-and-forward

switching, it ensures reliable, low-power, and stable network performance for industrial and

outdoor applications.

Features

Converts 2 x 10/100BASE-T RJ45 to 1 x 100Base-FX SC fiber

Supports full/half-duplex and auto MDI/MDI-X

Energy Efficient Ethernet (IEEE 802.3az) for reduced power usage

Rugged aluminum case for industrial-grade durability

Wide operating temperature: -40°C to 75°C

Flexible DIN-rail and wall-mount installation

Low power consumption, max 5W

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Full duplex and flow control
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1200	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200-20	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200-S20	Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
