LNK-DEC110P EOC Converter for 10/100Mbps Ethernet Extension over Coax Cable

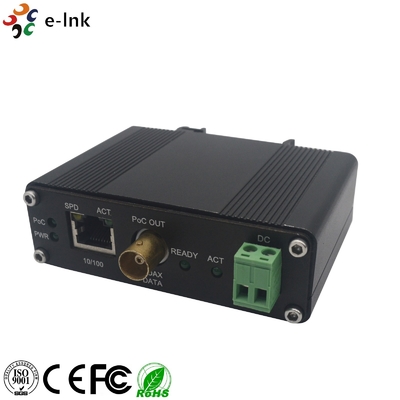

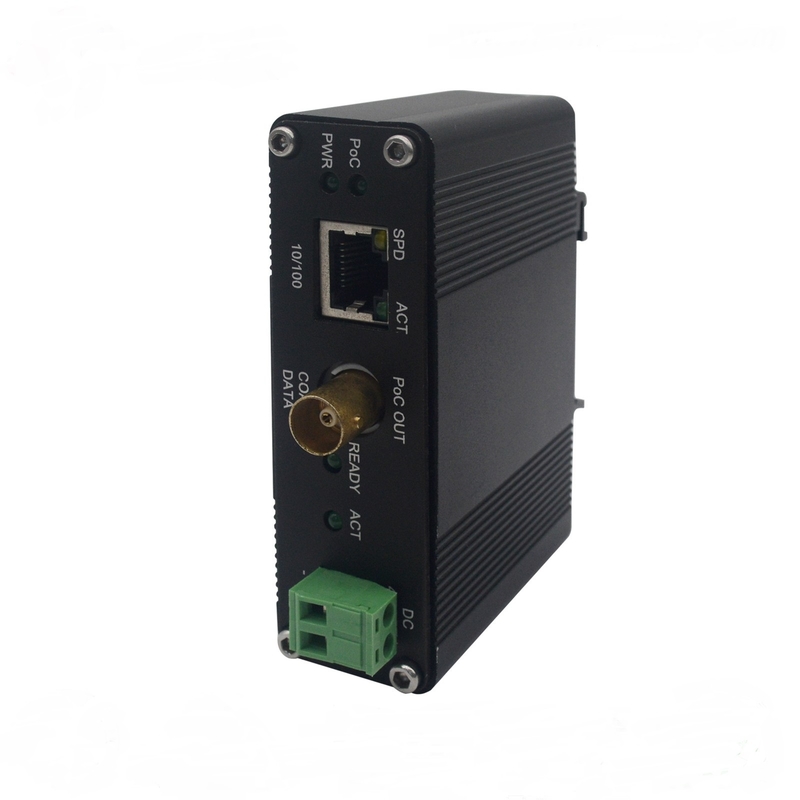

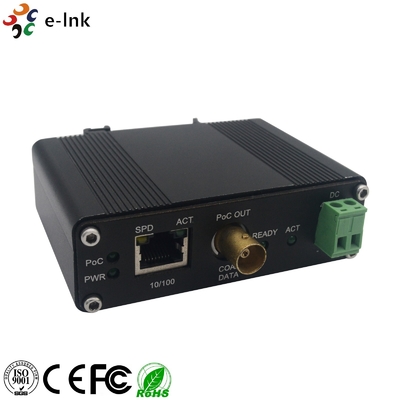

Large Image : LNK-DEC110P EOC Converter for 10/100Mbps Ethernet Extension over Coax Cable

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE FCC RoHS
Model Number:	LNK-DEC110P

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiated
Packaging Details:	Ethernet over Coax Extenders standard exxport package
Delivery Time:	3-10 working days
Payment Terms:	T/T, Western Union, MoneyGram, PayPal
Supply Ability:	2000pair per mouth

Contact Now

Detailed Product Description

Standard:	IEEE802.3af/at	Input Power:	48-57VDC (2 Pin Connector) Or PoE
Max. Power Per Port:	25.5W Max.at RX/30W Max.at TX	Dimensions (W X D X H):	95 × 67 × 30 Mm
Weight:	0.25kg	Casing:	Aluminum Case
Highlight:	Ethernet over Coax Cable EOC Converter , EOC Converter 10/100Mbps , LNK-DEC110P EOC Converter

DIN-Rail Industrial 10/100Base-TX (PoE+) Ethernet over Coax Extenders with PoC

Ethernet over Coax Extenders Overview

The LNK-DEC110P series DIN-rail-mounted EOC device extends a single 10/100Base-TX Ethernet

signal over coaxial cable, with a maximum transmission distance of 1 km. It also provides high-power

PoE output (up to 30W), enabling direct power supply to network cameras. This PoC technology eliminates

the need for additional power at the transmitter or camera end, making it ideal for network-based retrofitting

of analog systems using existing coaxial cable. It is widely used in CCTV surveillance and remote network expansion.

Ethernet over Coax Extenders Features

Ethernet Extension: Security Link over Coax

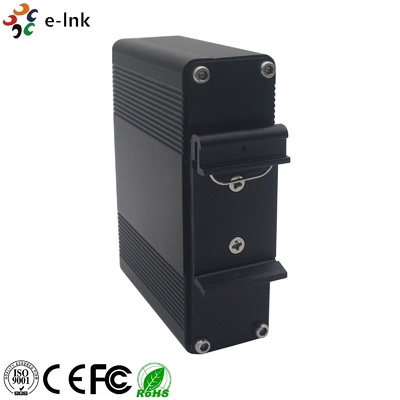

Support DIN-Rail mount installation
PoE+ (30W) and Power over Coaxial
802.3af/802.3at Compliant
Max. Distance: 1Km over Coax (RG-59/U)
Data Rate up to: 90Mbps (Downlink), 90Mbps (Uplink)
Compatible with 4-port standalone Receiver & Rack Mount 8/16-port Receiver
Accept 48~57VDC external power input or PoE power input from RJ45 port

Ethernet over Coax Extenders Technical Indexes

Ethernet
Standards	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3af Power Over Ethernet
	IEEE802.3at Power Over Ethernet
Cabling	10Base-T: Cat 3,4,5, or above
	100Base-TX: Cat5 or above
Maximum Distance	Cat5UTP up to 100m
Connector	1 x RJ45
Coaxial
Cabling	Coaxial Cable (75 ohm)
Connector	1 BNC (female)
Distance	Up to 1Km on RG-59/U
Data Rate
Downlink (TX to RX)	90Mbps (Max.)
Uplink (RX to TX)	90Mbps (Max.)
Technology	Power Line Communication (PLC)
Protection
Reverse Polarity	Present
Electrical and Mechanical
Input Power	48-57VDC (2 pin connector) or PoE
Power Consumption	8W Max. (PoC not in use)
Power Consumption	60W Max. (Poc in use)

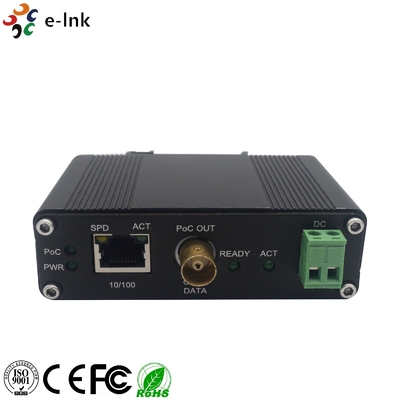

LED Indicators
Power	Power Status
Coax	LINK(Transmitter) / Ready(Reveiver) / PoC(Receiver), Activity
Ethernet	SPD, LINK/ACT, PoE(Transmitter)
PoE
Standard	IEEE802.3af/at
Mode	B Mode
Port	RJ45
Max. Power Per Port	25.5W max.at RX(Powered Device)
Max. Power Per Port	30W Max.at TX(Power Souring Equipment)
Mode	Positive(VCC+): RJ45 Pin 4,5
Mode	Negative(VCC-):RJ45 Pin 7,8

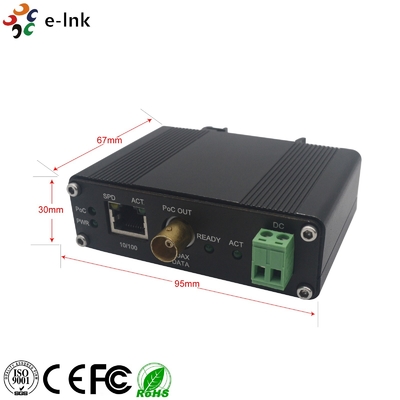

Dimensions (W x D x H)	95 × 67 × 30 mm
Weight	0.25kg
Casing	Aluminum case
Environmental
Operation Temperature	-10˚C to 60˚C (14˚F to 140˚F)
Storage Temperature	-40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity	5% to 90% non-condensing
MTBF	> 100,000 hrs
Regulatory Approvals	ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V

Ethernet over Coax Extenders Ordering Information

Model	Description
LNK-DEC110P-T	DIN-Rail Transmitter of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC
LNK-DEC110P-R	DIN-Rail Receiver of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC
