Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
Industrial PoE Managed Ethernet Switch Overview

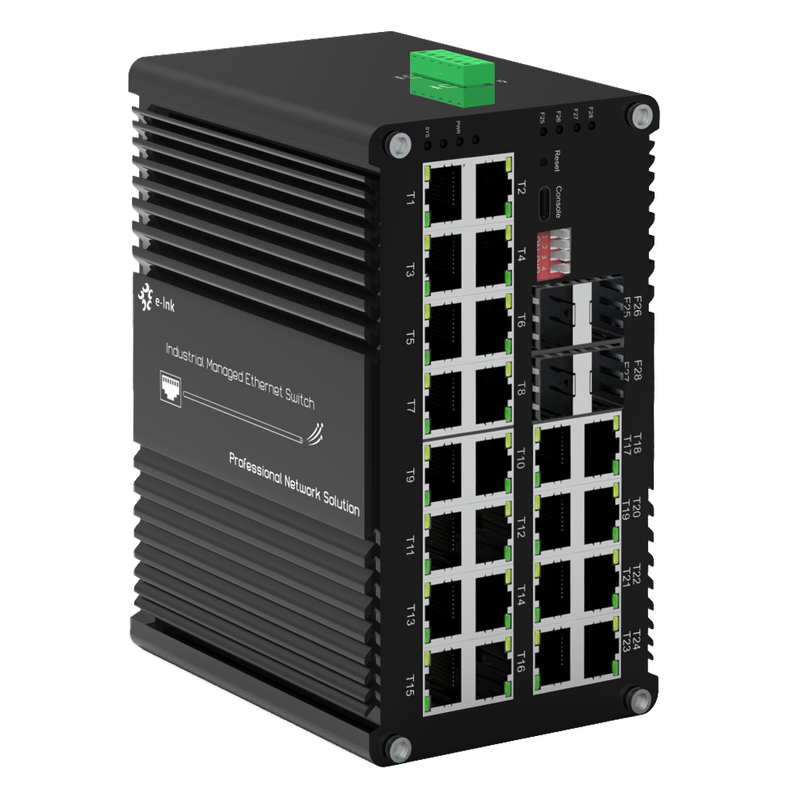

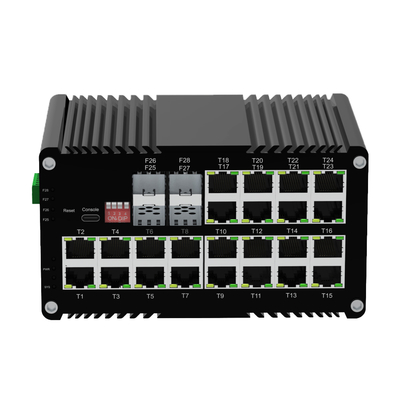

The ETH-DIMC2424MP Series is a L2+ managed 24-port gigabit PoE+ switch.
It has 24 10/100/1000Base-T 802.3at PoE+ ports and 4 1000Base-X SFP fibre slots.
It is designed for use in harsh environments. The RJ45 ports support auto-negotiation,
full/half duplex and auto MDI/MDI-X, and the SFP slots can accommodate single-mode
or multi-mode fibre for long-distance connectivity. Built for reliability, this robust Ethernet switch
is ideal for IP surveillance (IP cameras), wireless access points (WAPs)
and remote network deployments. It offers advanced management, PoE+ power
and industrial-grade durability.
Industrial PoE Managed Ethernet Switch Features
-
24 × 10/100/1000Base-T RJ45 ports and 4 × 1000Base-X SFP slots for flexible networking
-
RJ45 ports support Full/Half-duplex , Auto-negotiation , and Auto MDI/MDIX
-
IEEE 802.3af/at PoE compliant for reliable power delivery
-
DIP switch control for one-key VLAN, one-key Ring Management, PoE reset,
-
and extended 250 m PoE network mode
-
USB-C port management for convenient setup without accessing the RS232 serial port
-
10K Bytes Jumbo Frame support for efficient large-packet transmission
-
IEEE 802.3az Energy Efficient Ethernet (EEE) for reduced power consumption
-
IP40-rated aluminum housing for enhanced durability
-
Supports DIN-Rail mounting for easy industrial installation
-
Wide operating temperature range : -40 °C to 80 °C (-40 °F to 176 °F)
Industrial PoE Managed Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3p QoS
|
|
IEEE802.1d Spanning Tree
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
12M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
110Gbps
|
|
Max Packet Length:
|
10K Bytes Jumbo Frame
|
|
Address Table Size:
|
8K MAC Addresses
|
|
Interface
|
|
Connector:
|
24 x RJ45
|
|
RS485:
|
1 x RS485 (Optional)
|
|
Optical Port:
|
4 x 1000Base-X SFP
|
|
USB-C:
|
1 x USB-C (for Management)
|
|
RS485 Serial Interface (Optional)
|
|
Physical interface
|
Industrial standard 3-pin screw terminal
|
|
Data type
|
1Ch RS485 Bi-Direction
|
|
RS-485 signals
|
Data+, Data-, GND
|
|
Serial port line distance (copper)
|
1000 meters
|
|
Baud rate
|
0 ~ 800kbps
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 720-watt PoE budget
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
8W Max.(PoE in Use<720W)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3 (to be upgraded)
|
250m PoE Network
|
ON - Enabled
|
OFF - Disabled
|
|
SW 4 (to be upgraded)
|
PoE Reset
|
ON - Enabled
|
OFF - Disabled
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
PoE
|
PoE Status (T1~T24)
|
|
Fiber:
|
Gigabit SFP Port: F25~F28
|
|
Dimensions (WxDxH):
|
155 x 115 x 85 mm
|
|
Weight:
|
1.2KG
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail mount
|
|
Software Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
PoE Management
|
Total power limit of PoE power supply
PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Advance Layer 2+ Features
|
IPv4/IPv6 Management
Static Route
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Industrial PoE Managed Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ETH-DIMC2424MP
|
Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
