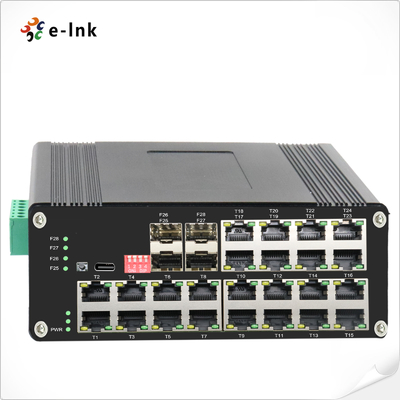

Industrial L2+ 24-Port Gigabit PoE Switch 4 SFP 720W Budget USB-C
Overview
ETH-DIMC2424MP Series is a hardened L2+ managed PoE Ethernet switch featuring
24 Gigabit PoE+ RJ45 ports and 4 Gigabit SFP uplinks. With a massive 720W PoE
budget, it powers IP cameras, APs, and IoT devices reliably across long distances. Its DIP
switch enables one-key VLAN, ring management, PoE reset, and 250m PoE extension,
simplifying deployment in the field. The rugged IP40 aluminum case, wide -40°C to +80°C
operating temperature, redundant power inputs, and advanced security make it ideal for
industrial automation, surveillance, and transportation networks.
Features
24 × Gigabit PoE+ RJ45 + 4 × Gigabit SFP ports
Supports IEEE 802.3af/at PoE, up to 720W PoE power budget
One-key DIP switch functions: VLAN, Ring, PoE Reset, 250m PoE extension
USB-C management port – quick setup without RS232 serial access
110Gbps switching capacity, Jumbo Frame 10K bytes
Advanced redundancy: STP/RSTP/MSTP/ERPSv2, link aggregation
Robust security: 802.1X, SSH, HTTPS, RADIUS, DoS/DDoS protection
PoE management: scheduling, output priority, power allocation
Hardened IP40 aluminum housing, fanless, DIN-rail mounting
Wide operating temperature: -40°C to +80°C, MTBF > 200,000 hrs
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3p QoS
|
|
IEEE802.1d Spanning Tree
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
12M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
110Gbps
|
|
Max Packet Length:
|
10K Bytes Jumbo Frame
|
|
Address Table Size:
|
8K MAC Addresses
|
|
Interface
|
|
Connector:
|
24 x RJ45
|
|
RS485:
|
1 x RS485 (Optional)
|
|
Optical Port:
|
4 x 1000Base-X SFP
|
|
USB-C:
|
1 x USB-C (for Management)
|
|
RS485 Serial Interface (Optional)
|
|
Physical interface
|
Industrial standard 3-pin screw terminal
|
|
Data type
|
1Ch RS485 Bi-Direction
|
|
RS-485 signals
|
Data+, Data-, GND
|
|
Serial port line distance (copper)
|
1000 meters
|
|
Baud rate
|
0 ~ 800kbps
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 720-watt PoE budget
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
8W Max.(PoE in Use<720W)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3 (to be upgraded)
|
250m PoE Network
|
ON - Enabled
|
OFF - Disabled
|
|
SW 4 (to be upgraded)
|
PoE Reset
|
ON - Enabled
|
OFF - Disabled
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
PoE
|
PoE Status (T1~T24)
|
|
Fiber:
|
Gigabit SFP Port: F25~F28
|
|
Dimensions (WxDxH):
|
155 x 115 x 85 mm
|
|
Weight:
|
1.2KG
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail mount
|
|
Software Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
PoE Management
|
Total power limit of PoE power supply
PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Advance Layer 2+ Features
|
IPv4/IPv6 Management
Static Route
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
ETH-DIMC2424MP
|
Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|

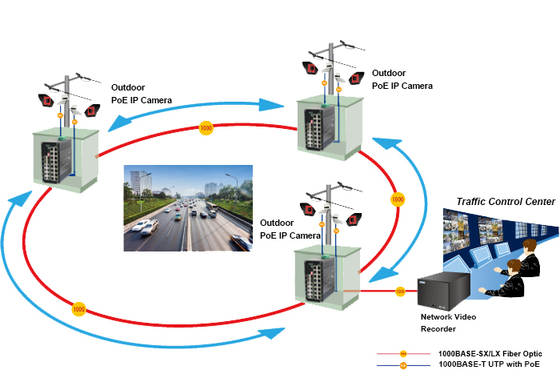

Application
