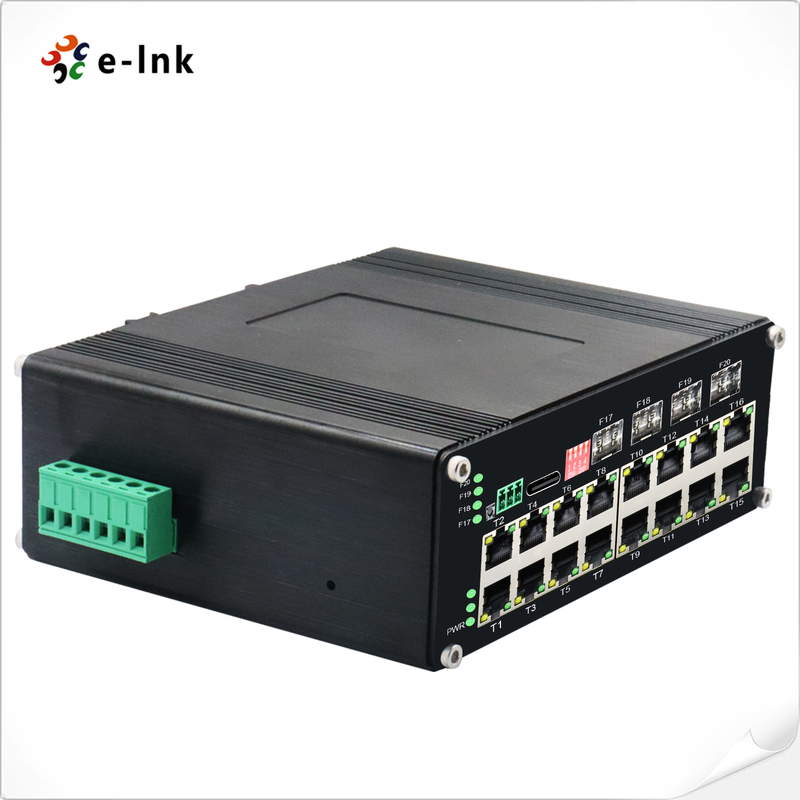

Industrial L2+ 16-Port Gigabit + 4 SFP Managed Ethernet Switch
Overview
The ETH-DIMC2416M is an industrial L2+ managed Ethernet switch with 16 Gigabit RJ45
ports and 4 Gigabit SFP uplinks. Designed for high-performance and reliability, it features
10K Jumbo Frame support, USB-C management port, IP40 aluminum housing, DIN-Rail
mounting, and wide operating temperature from -40°C to 80°C. Ideal for integrating
networks with IP cameras, wireless access points, and other industrial devices across
harsh environments.
Features
16×10/100/1000Base-T + 4×1000Base-X SFP ports
USB-C port for easy management, no RS232 access required
Supports 10K Bytes Jumbo Frame for large data transmission
DIP switch for VLAN & Ring Management
110Gbps backplane bandwidth, 12Mbit packet buffer, 8K MAC addresses
Redundancy: STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast: IGMP Snooping V1/V2/V3, GMRP, GVMP, 4K VLAN, QinQ
QoS: Flow-based redirection, rate limiting, packet filtering, 8 queues per port, SP/WRR
scheduling
Security: Broadcast storm protection, SSH, HTTPS, AAA & RADIUS, DHCP Snooping,
802.1X, DDOS mitigation
Management: CLI, Web, SNMPv1/v2/v3, Telnet, LLDP, DHCP Server/Client, Cloud/MQTT
Diagnostics: Port mirroring, Syslog, Ping, RMON, Trap
Rugged IP40 aluminum casing with DIN-Rail mount
Operating temperature: -40°C to 80°C, MTBF >200,000 hrs
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3p QoS
|
|
IEEE802.1d Spanning Tree
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
12M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
110Gbps
|
|
Max Packet Length:
|
10K Bytes Jumbo Frame
|
|
Address Table Size:
|
8K MAC Addresses
|
|
Interface
|
|
Connector:
|
16 x RJ45
|
|
RS485:
|
1 x RS485 (Optional)
|
|
Optical Port:
|
4 x 1000Base-X SFP
|
|
USB-C:
|
1 x USB-C (for Management)
|
|
RS485 Serial Interface (Optional)
|
|
Physical interface
|
Industrial standard 3-pin screw terminal
|
|
Data type
|
1Ch RS485 Bi-Direction
|
|
RS-485 signals
|
Data+, Data-, GND
|
|
Serial port line distance (copper)
|
1000 meters
|
|
Baud rate
|
0 ~ 800kbps
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
8W Max.
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 4
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber:
|
Gigabit SFP Port: F17~F20
|
|
Dimensions (WxDxH):
|
155 x 115 x 85 mm
|
|
Weight:
|
1.2KG
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail mount
|
|
Software Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
PoE Management
|
Total power limit of PoE power supply
PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Advance Layer 2+ Features
|
IPv4/IPv6 Management
Static Route
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
ETH-DIMC2416M
|
Industrial L2+ 16-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
