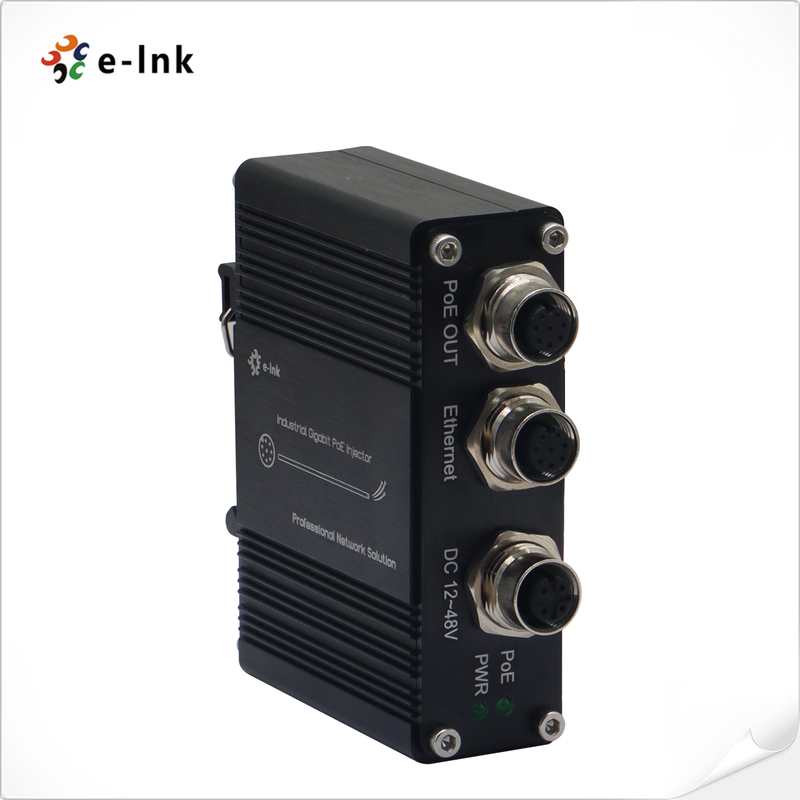

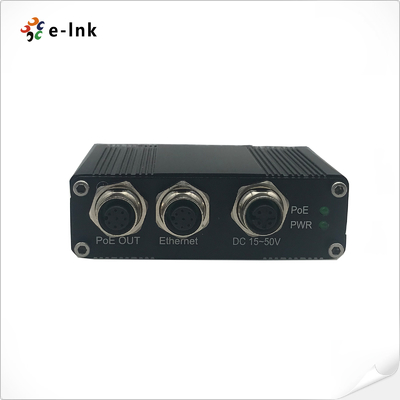

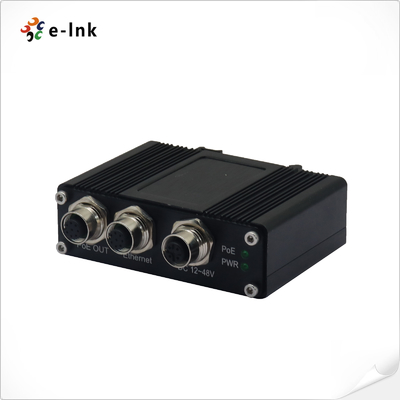

EN50155 Industrial 10/100/1000M/2.5G/5G/10G 90W PoE Injector with M12 connector
Industrial 90W PoE Injector Overview
The E-link EN50155 Compliant PoE Injector is a high-performance industrial power solution designed
for demanding railway, rolling stock, and vehicle applications. This injector is compliant
with IEEE 802.3bt standards and features Intelligent Detection technology. It delivers
1-port 10/100/1000/2.5G/5G/10G Base-T(X) PoE++ output (up to 90W) while maintaining
full EN50155 compliance. Engineered for extreme environments, it utilises rugged M12 connectors
to ensure reliable performance under severe vibration and shock conditions. The smart power
activation system is designed to only energise when it detects valid PoE devices, thus protecting
connected equipment. The LNK-INJ601-90-M12 is a highly versatile device, offering a wide 12-48V DC
input range that ensures robust power delivery for mission-critical industrial networks.
Industrial 90W PoE Injector Features
- 12~48V DC power input , compatible with various industrial power supply environments
- Fully compliant with IEEE 802.3af/at/bt standards, supporting high-power PoE power supply
- Supports 10/100/1000/2.5G/5G/10G Base-TX data and power transmission

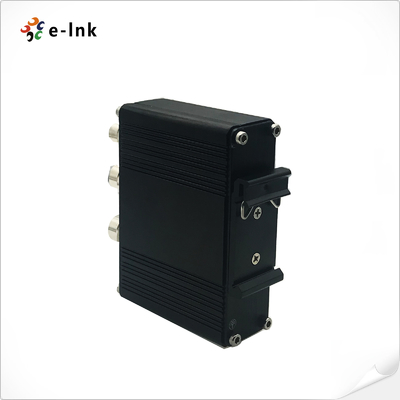

- Provides DIN rail and wall mounting options for flexible deployment
- Adopt Type-A M12 industrial connector to ensure tight connection, shockproof and dustproof
- Compact size : 95 × 70 × 30mm, weighs only 0.25KG
- Aluminum alloy shell , light and strong, with excellent heat dissipation performance
- Equipped with various LED indicators to facilitate PoE status monitoring and fault diagnosis
- Industrial-grade wide temperature design : -40°C ~ 80°C (-40°F ~ 176°F), suitable for harsh environments
Industrial 90W PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
IEEE802.3bt Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
1,488,0000pps (10Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G/10G Base-T
|
|
Connector:
|
2x M12 connector (8-pin female M12 A-coding)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48V DC on 4-pin female M12 A-Coding
|
|
Power Consumption:
|
95W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at/bt
|
|
Port:
|
M12 connector (8-pin female M12 A-coding)
|
|
Max. Power per Port:
|
90W Max
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A, EN50155
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 90W PoE Injector Size
Industrial 90W PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ601-90-M12
|
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G 90W M12 PoE Injector 12~48V DC Power Input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
Industrial 90W PoE Injector Application
