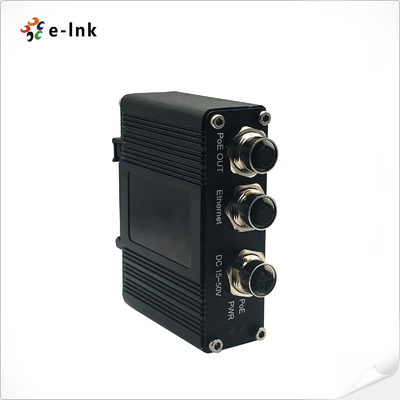

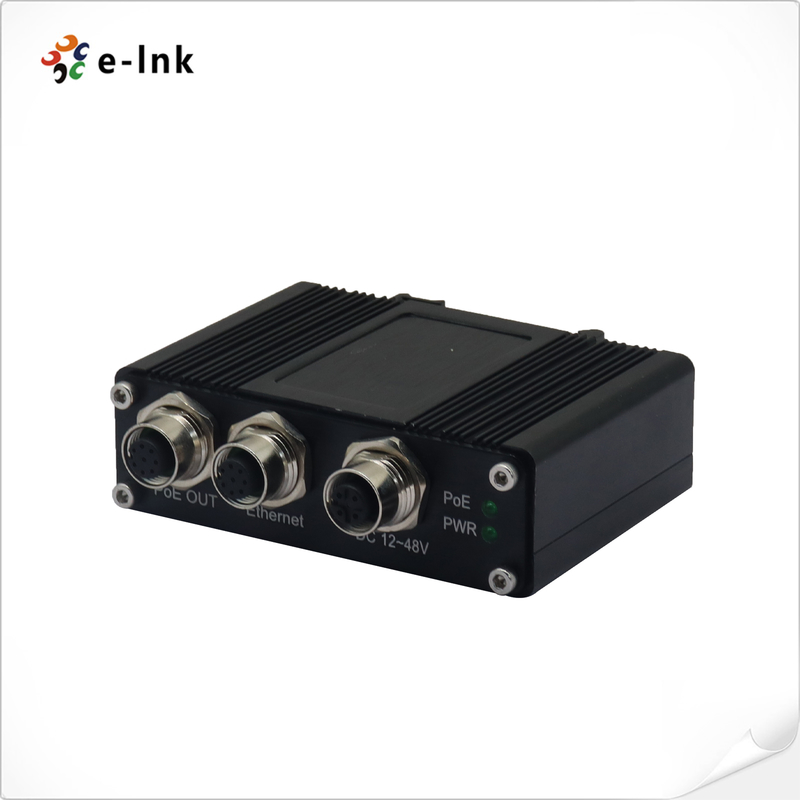

EN50155 Industrial 10/100/1000M/2.5G/ 90W PoE Injector with M12 connector
Industrial 90W PoE Injector with M12 Connector Overview
The E-link EN50155 Compliant PoE Injector is a rugged, industrial-grade power solution designed for mission-critical transportation applications including rolling stock, railway systems, and vehicle networks. This advanced IEEE 802.3bt compliant device features Intelligent Detection technology delivering 1-port 10/100/1000/2.5G Base-T(X) PoE++ output while meeting stringent EN50155 standards for railway applications.
Industrial 90W PoE Injector with M12 Connector Features
- Industrial M12 connectors for vibration-proof, shock-resistant connections
- Wide voltage input (12-48V DC) for flexible deployment
- Auto-sensing PoE++ technology (90W max) that activates only with valid PD detection
- Robust EN50155 compliance ensuring reliable operation in harsh conditions
Industrial 90W PoE Injector with M12 Connector
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
IEEE802.3bt Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
3,720,000pps (2.5Gbps)
|
|
Cabling:
|
10/100/1000/2.5G Base-T
|
|
Connector:
|
2x M12 connector (8-pin female M12 A-coding)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48V DC on 4-pin female M12 A-Coding
|
|
Power Consumption:
|
95W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at/bt
|
|
Port:
|
M12 connector (8-pin female M12 A-coding)
|
|
Max. Power per Port:
|
90W Max
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A, EN50155
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 90W PoE Injector with M12 Connector Size
Industrial 90W PoE Injector with M12 Connector Ordering Information
|
Model
|
Description
|
|
LNK-INJ401-90-M12
|
EN50155 Industrial 1-port 10/100/1000M/2.5G 90W M12 PoE Injector 12~48V DC Power Input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
Industrial 30W PoE Injector with M12 Connector Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing
product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
