Industrial Gigabit SFP to RJ45 90W PoE++ Media Converter -40~75°C

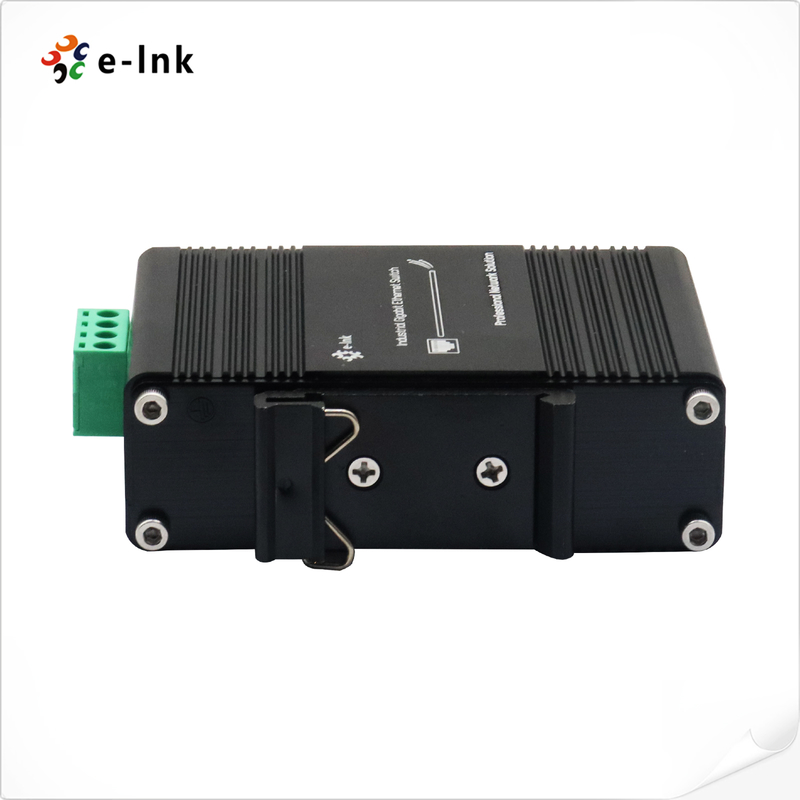

Large Image : Industrial Gigabit SFP to RJ45 90W PoE++ Media Converter -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	The LNK-IMC3012P90-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$79-$95
Packaging Details:	Industrial Ethernet PoE Switches Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ethernet Port:	1× 10/100/1000BASE-T RJ45, Auto MDI/MDI-X	SFP Slot:	1× 100/1000BASE-X (auto Detection)
PoE Output:	Up To 90W, IEEE802.3af/at/bt Compliant	Power Input:	48~57VDC Terminal Block
Operating Temp:	-40°C To 75°C	Mounting:	DIN-rail & Wall-mount

Industrial Gigabit SFP to RJ45 90W PoE++ Media Converter -40~75°C

Overview

The LNK-IMC3012P90-SFP is an industrial-grade media converter built to support

demanding network applications with 90W PoE++ power delivery. Ideal for high-powered

devices such as surveillance cameras, PTZ cameras, and high-performance wireless access

points, it offers seamless fiber-to-copper conversion through a 100/1000BASE-X SFP slot

and a 10/100/1000BASE-T PoE++ port. Its rugged design ensures reliability in extreme

conditions, with a wide operating temperature range from -40°C to +75°C and versatile

mounting options. This solution is perfect for outdoor, industrial, and critical infrastructure

deployments where high power and durability are essential.

Features

High-Power PoE++ – Delivers up to 90W over 4-pair Ethernet, ideal for power-hungry devices.

Flexible Fiber Connectivity – Supports 100/1000BASE-X SFP for single-mode or multi-mode

fiber, enabling versatile networking solutions.

Industrial-Grade Durability – Operates in harsh environments with a wide temperature range

of -40°C to +75°C.

Energy Efficient – Complies with IEEE 802.3az for reduced power consumption.

Compact and Reliable – Aluminum casing with DIN-Rail or wall-mount options for easy

installation in tight spaces.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
	IEEE802.3bt Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	48~57VDC, 4-pin terminal block
Power Consumption:	95W Max.
LED Indicators:
PWR:	Power Status
PoE:	PD Plug Status
RJ45:	LINK/Activity
SFP:	LINK
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC3012P90-SFP	Hardened 10/100/1000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with 90W PoE++
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
