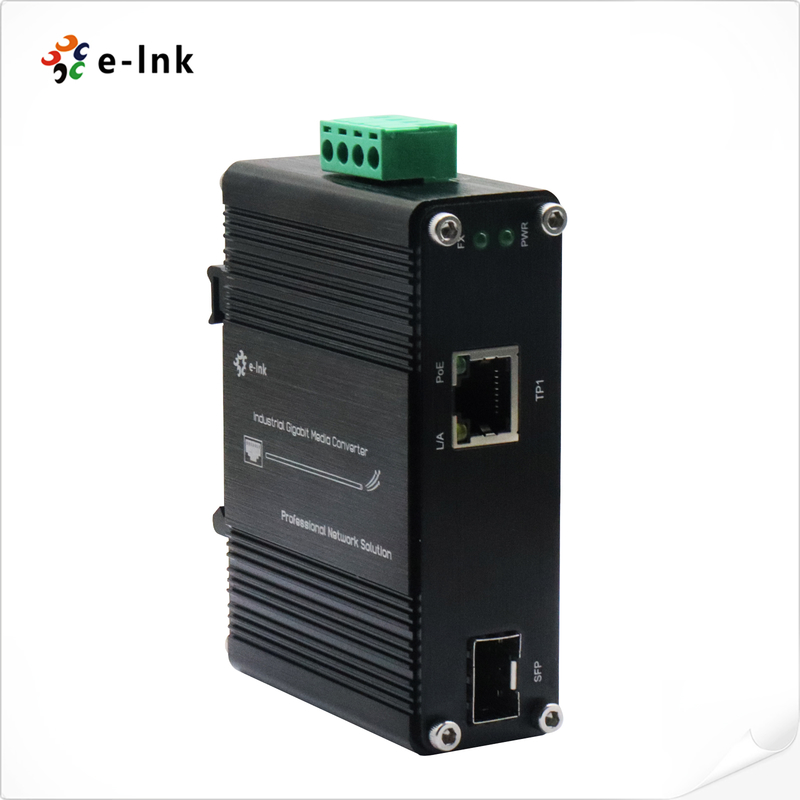

Industrial Gigabit SFP to RJ45 30W PoE+ Media Converter -40~75°C

Large Image : Industrial Gigabit SFP to RJ45 30W PoE+ Media Converter -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	The LNK-IMC3012P-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$65-$79
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ethernet Port:	1× 10/100/1000BASE-T RJ45, Auto MDI/MDI-X	SFP Port:	1× 100/1000BASE-X (auto Detection)
PoE Standard:	IEEE802.3af/at, Up To 30W	Power Input:	12~48VDC Terminal Block
Casing:	Aluminum, 95×70×30 Mm, 0.25 Kg	Operating Temp:	-40°C To 75°C

Industrial Gigabit SFP to RJ45 30W PoE+ Media Converter -40~75°C

Overview

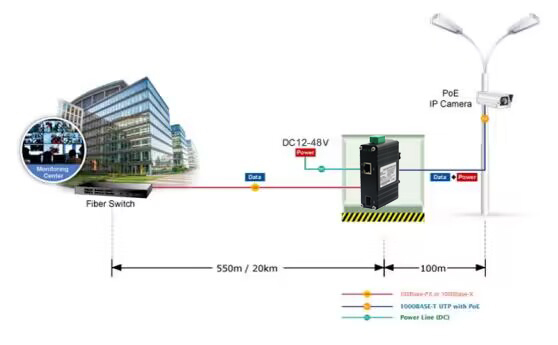

The LNK-IMC3012P-SFP is a rugged industrial-grade media converter designed for

demanding environments, seamlessly bridging fiber and copper networks. Featuring a

flexible 100/1000BASE-X SFP slot and a 10/100/1000BASE-T PoE+ port delivering up to

30W, it ensures reliable high-speed data transmission and power delivery over a single

cable. Built with an aluminum housing, wide -40°C to +75°C operating temperature range,

and DIN-rail or wall-mount options, it is ideal for outdoor surveillance, industrial automation,

and mission-critical applications.

Features

Flexible Fiber Connectivity – Supports 100/1000BASE-X SFP modules for single-mode or

multi-mode fiber.

High-Power PoE+ – Delivers up to 30W per IEEE802.3at, compatible with IEEE802.3af

devices.

Industrial Hardened Design – Operates reliably from -40°C to +75°C with aluminum

casing.

Energy Efficient – IEEE 802.3az compliance reduces power consumption.

Multiple Mounting Options – DIN-rail or wall-mount installation for versatile deployment.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	12~48VDC, 4-pin terminal block
Output Power	48VDC
Power Consumption:	36W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC3012P-SFP	Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
