Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
Industrial PoE Gigabit Ethernet Switch Overview

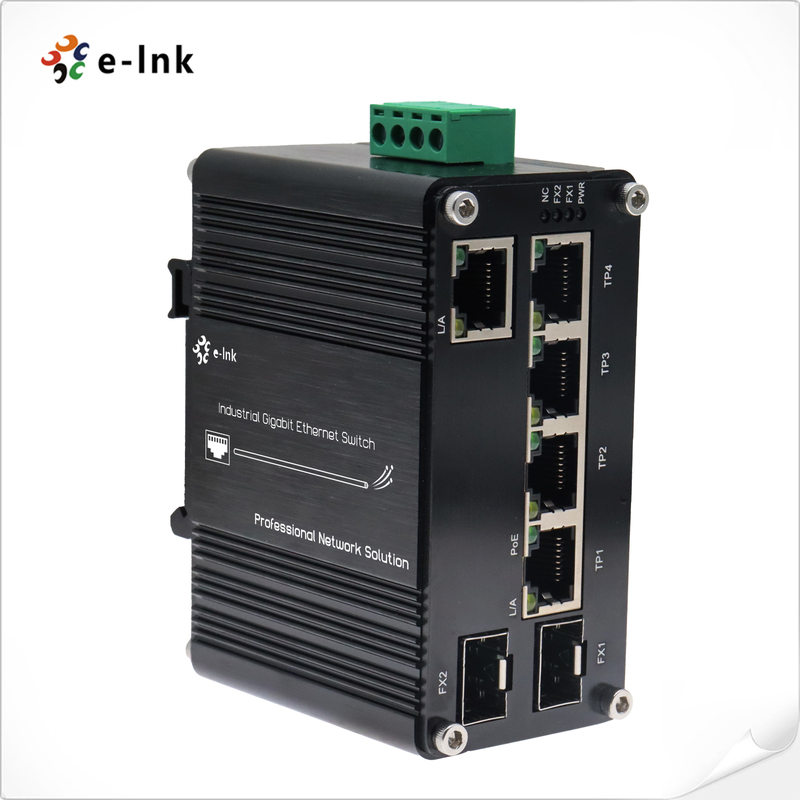

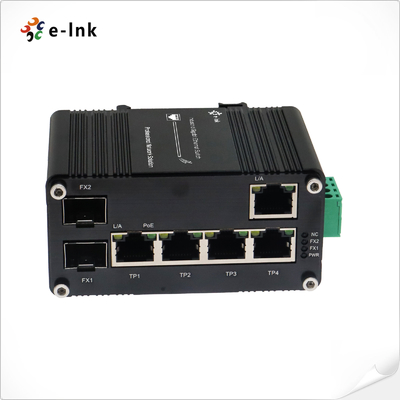

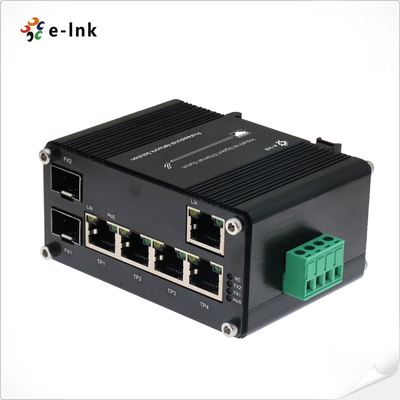

The E-Link LNK-IMC205GHP-SFP series is a mini industrial high-power 90 W 802.3bt PoE switch
that delivers ultra-high power and reliable connectivity for demanding network environments.
With 4 Gigabit PoE++ ports (90 W per port), 1 Gigabit uplink port and 2 dual-rate SFP slots,
the switch supports PoH (Power over HDBaseT) technology. This enables 95 W of power to be delivered
over standard Cat5e/6 cables, making it ideal for high-power PDs such as PTZ cameras, all-in-one PCs,
digital signage and PoE lighting.
Designed for use in harsh industrial environments, the switch offers IP40 protection, DIN-rail mounting
and high EFT/ESD immunity, making it ideal for factory automation, oil and gas operations, surveillance
and outdoor deployments.
Industrial PoE Gigabit Ethernet Switch Features
- Provides five 10/100/1000BASE-T Gigabit Ethernet RJ45 copper cable ports , supporting high-speed
- and stable transmission
- Equipped with 2 SFP slots , compatible with 1000BASE-X and 100BASE-FX dual-mode optical modules
- Compliant with IEEE 802.3bt PoE standard , supporting IEEE 802.3bt/at/af powered devices
- Up to 4 PoE ports for power supply , with a maximum output of 95W per port
- and a total PoE power of up to 360W

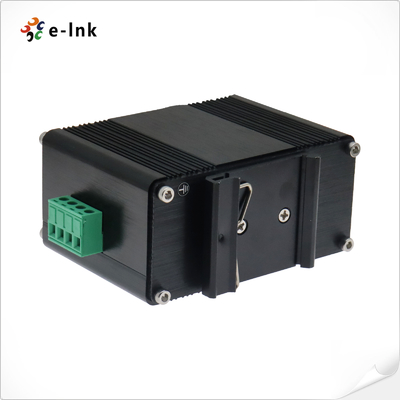

- Supports DIN rail installation , easy to deploy in industrial environment
- Compact fanless design effectively avoids overheating and ensures stable operation
- IP40 high-strength metal housing , dustproof and durable, suitable for harsh environments
- 48~57V DC redundant power input with reverse polarity protection to improve system reliability
- Wide operating temperature range: -40°C ~ 80°C (-40°F ~ 176°F) , suitable for harsh industrial environments
Industrial PoE Gigabit Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus PSE
|
|
IEEE 802.3af Power over Ethernet Plus
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer:
|
2Mbits
|
|
Packet Length:
|
10Kbytes
|
|
MAC Address Table:
|
4K
|
|
Switch Fabric:
|
14Gbps/non-blocking
|
|
Exchange Property
|
Backplane bandwidth: 14Gbps;
Packet forwarding rate: 14.88Mpps
|
|
Connector:
|
4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
|
|
Network Cables
|
Twisted-pair:
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module)
100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module)
9/125μm single-mode cable for 20/40/60/120km (vary on SFP module)
|
|
Interface
|
|
Connector:
|
5 x RJ45 (4-Port 802.3at PoE Out)
|
|
Optical Port:
|
2 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at/bt
|
|
Port:
|
RJ45
|
|
Power Pin Assignment:
|
Pair 1 End-span: 1/2(-), 3/6(+)
Pair 2 Mid-span: 4/5(+), 7/8(-)
802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 360-watt PoE budget
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC (Terminal Block)
|
|
Power Consumption:
|
382W Max. (PoE in use)
|
|
<5W (PoE not in use)
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
Dimensions (LxWxH):
|
95 x 88 x 46mm
|
|
Weight:
|
300g
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail
|
|
LED Indicators:
|
|
PWR:
|
Power
|
|
L/A:
|
Link/Activity
|
|
PoE:
|
PoE Status
|
|
FX1/FX2:
|
SFP Fiber Link Status
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55032:2017
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Industrial PoE Gigabit Ethernet Switch Odering Information
|
Model
|
Description
|
|
LNK-IMC205GHP-SFP
|
Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed;
|
|
Power Options
|
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately
|
Industrial PoE Gigabit Ethernet Switch Application
