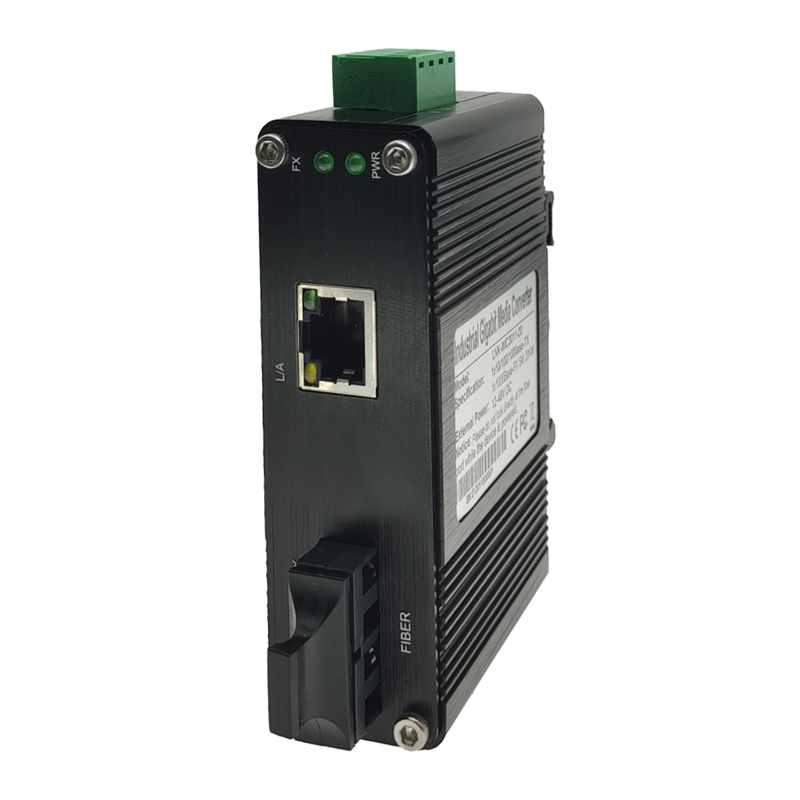

Industrial Gigabit Fiber Media Converter SC Port 100M/1000M -40~75°C

Large Image : Industrial Gigabit Fiber Media Converter SC Port 100M/1000M -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	The LNK-IMC3012-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$55-$79
Packaging Details:	Industrial Ethernet Media Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Network Interface:	1×RJ45, 1×SC	Power Input:	12~48VDC, 4-pin Terminal Block
Power Consumption:	Max. 3W	Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Enclosure Material:	Aluminum Housing	Mounting Options:	DIN-Rail / Wall-mount

Industrial Gigabit Fiber Media Converter SC Port 100M/1000M -40~75°C

Overview

The LNK-IMC3012 Series is a rugged, industrial-grade media converter that bridges

10/100/1000BASE-T copper networks with 1000BASE-X fiber connections. Featuring

support for both 100M and 1000M fiber speeds, it offers superior compatibility with a wide

range of devices. Designed for harsh environments, it operates reliably in temperatures

from -40°C to 75°C and comes in a compact aluminum housing. Flexible DIN-rail or

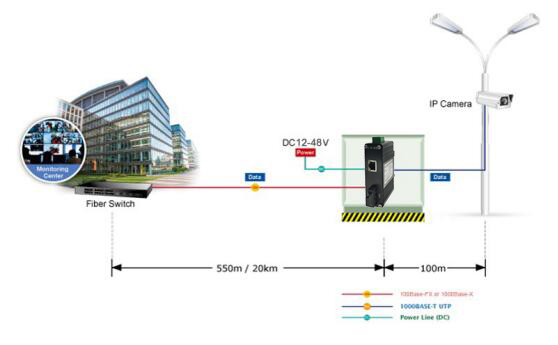

wall-mount installation options make it ideal for industrial automation, surveillance, and

outdoor networking projects requiring robust, high-performance fiber connectivity.

Features

Dual-Speed Fiber Support — Compatible with both 100M and 1000M fiber devices.

Gigabit Media Conversion — Converts between 10/100/1000BASE-T and 1000BASE-X

SC fiber.

Industrial Durability — Rugged aluminum housing, wide operating temperature (-40°C

to 75°C).

Flexible Mounting — Supports DIN-rail and wall-mount installations.

Efficient Operation — IEEE 802.3az compliant for energy savings.

Diagnostic LED Indicators — Real-time status monitoring for power, link, speed, and fiber.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SC 1000Base-X
Electrical and Mechanical
Input Power:	12~48VDC, 4-pin terminal block
Power Consumption:	3W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC3012	Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC
LNK-IMC3012-20	Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC
LNK-IMC3012-S20	Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
