Mini Industrial 1-Port 100Base-FX to 2-Port 10/100Base-T 30W PoE+ Media Converter
Mini Industrial Media Converter Overview

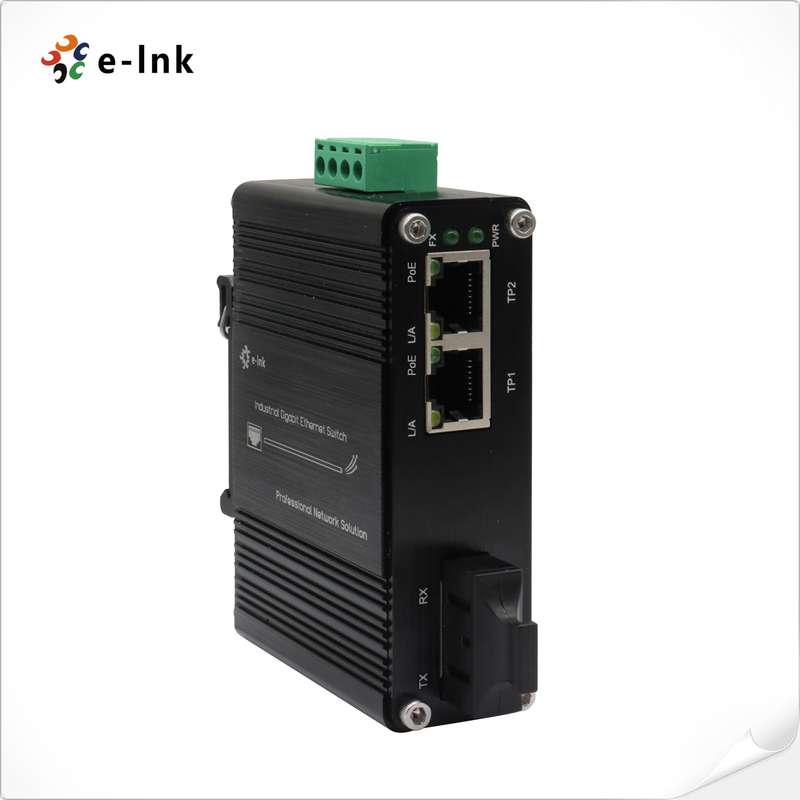

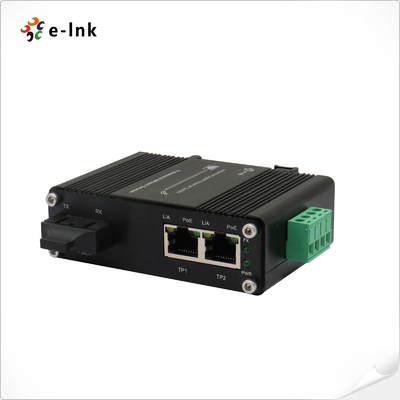

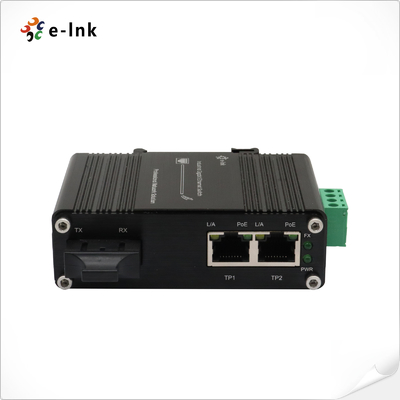

The LNK-IMC1200P Series is a rugged industrial media converter that enables seamless 2-Port 10/100BASE-T to 1-Port 100BASE-FX Fiber conversion. Featuring 30W high-power PoE (IEEE 802.3at compliant), it delivers reliable power and data transmission in harsh environments. Built with a durable aluminum housing, it operates in extreme temperatures (-40°C to 75°C) and supports half/full-duplex modes. Its DIN-rail mountable design ensures easy installation in industrial setups, making it ideal for demanding applications.
Mini Industrial Media Converter Features
LNK-IMC1200P-SFP present the following features:
►2 10/100BASE-T RJ45 ports , support auto MDI/MDI-X function
►1 100BASE-FX SC optical port , suitable for long-distance data transmission
►Compliant with IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W) standards, supporting efficient power supply
►Supports full/half duplex mode and auto-negotiation to ensure network compatibility and stability
►Adopt IEEE 802.3az Energy Efficient Ethernet (EEE) technology to reduce energy consumption
►12~48V DC terminal block power input , adaptable to various power supply environments
►Supports DIN rail and wall-mount installation , flexible and convenient deployment
►Industrial-grade wide temperature design : -40°C ~ 75°C (-40°F ~ 167°F), suitable for operation in harsh environments
Mini Industrial Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3x Full duplex and flow control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
Packet Buffer Memory:
|
128K bits
|
|
Max Packet Length:
|
1522 Bytes
|
|
Address Table Size
|
1K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SC 100Base-FX
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Output Power
|
48VDC
|
|
Power Consumption:
|
65W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
POE:
|
PoE Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|

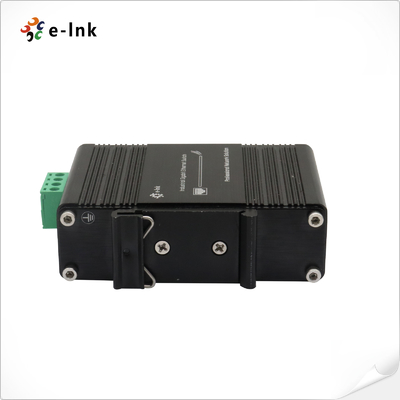

Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200P
|
Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
|
|
LNK-IMC1200P-20
|
Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
|
|
LNK-IMC1200PS-20
|
Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
