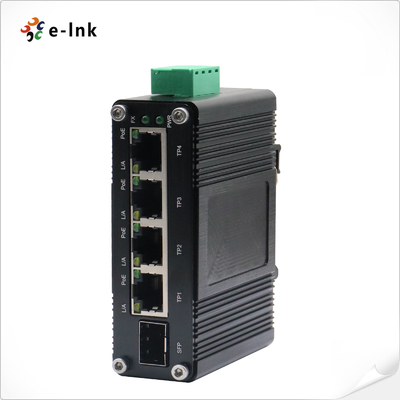

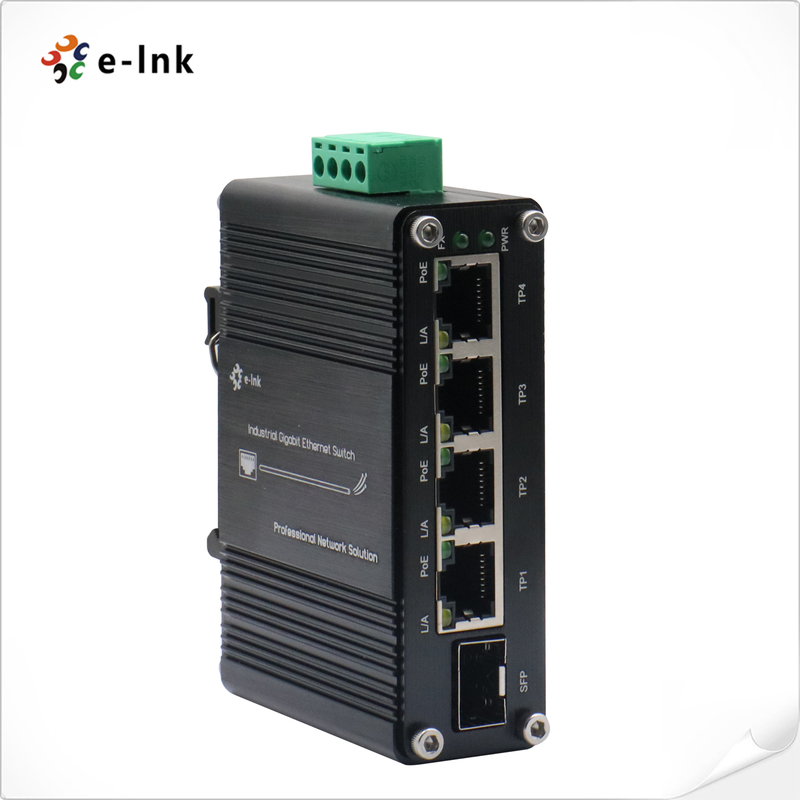

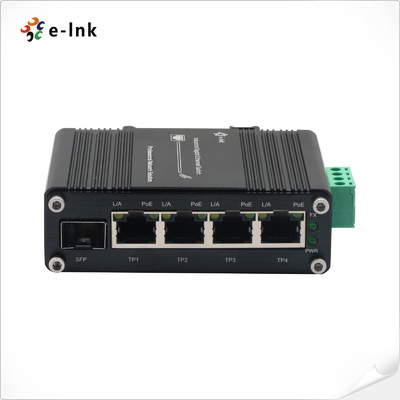

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
Mini Industrial SFP Ethernet Switch Overview
The LNK-IMC104GP-SFP Series is a robust 4-Port Gigabit PoE+ (802.3at) Industrial Ethernet Switch
with an additional 100/1000X SFP slot for fibre connectivity. This product has been designed to withstand
challenging conditions, featuring a wide 12-48V DC input with a voltage booster to ensure stable power delivery
in industrial and solar applications. This unmanaged Power over Ethernet (PoE) switch has been certified
by the CE and FCC, and is able to withstand vibrations and shocks. It also has an extended temperature range,
making it reliable and suitable for use in networking surveillance, automation and outdoor deployments.
Its 100% burn-in testing guarantees durability, making it a cost-effective solution for industrial Ethernet infrastructure.
Mini Industrial SFP Ethernet Switch Features
-
100/1000BASE-X SFP slot , supports automatic SFP type detection
-
Four 10/100/1000BASE-T RJ45 ports with IEEE 802.3at PoE+ injection capability (Ports 1 to 4)
-
12~48VDC wide range power input , built-in power boost function
-
Support IEEE 802.3x flow control to improve network stability
-

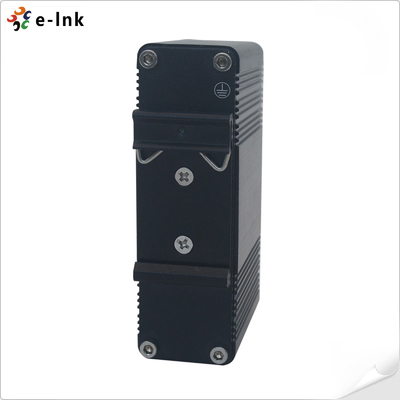

Supports DIN rail and wall mounting , flexible and convenient installation
-
PoE power budget : up to 120W at 48VDC, 90W at 24VDC, 60W at 12VDC
-
Industrial-grade design , IP40 dust-proof, enclosed high-strength metal housing
-
Wide operating temperature range : -40°C to 80°C (-40°F to 176°F), suitable for extreme
Mini Industrial SFP Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE 802.3at Power over Ethernet Plus PSE
|
|
IEEE 802.3af Power over Ethernet Plus
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer:
|
1Mbits
|
|
Packet Length:
|
10Kbytes
|
|
MAC Address Table:
|
8K
|
|
Switch Fabric:
|
10Gbps/non-blocking
|
|
Exchange Property
|
Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps
|
|
Connector:
|
4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
|
|
Interface
|
|
Connector:
|
4 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
<125W (Non-PoE<6W)
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
Dimensions (WxDxH):
|
95 x 70x 29mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
LED Indicators:
|
|
PWR:
|
Power
|
|
L/A:
|
Link/Activity
|
|
PoE:
|
PoE Status
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55032:2017
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial SFP Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC104GP-SFP
|
Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
