Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function
Mini Indutrial PoE Ethernet Switch Overview

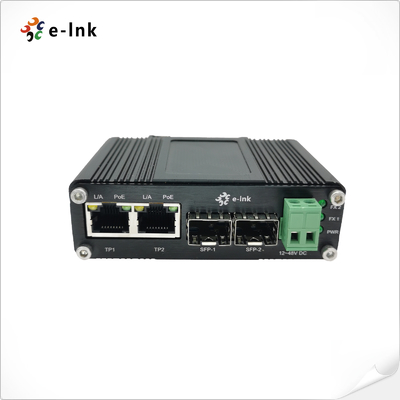

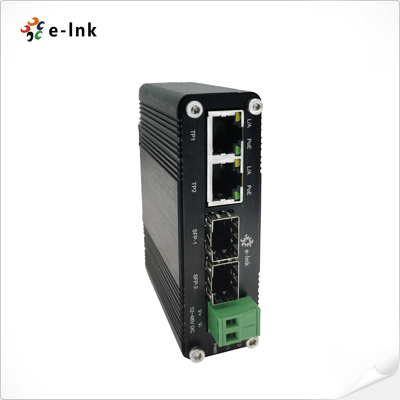

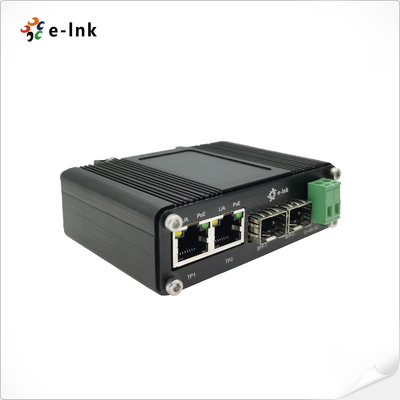

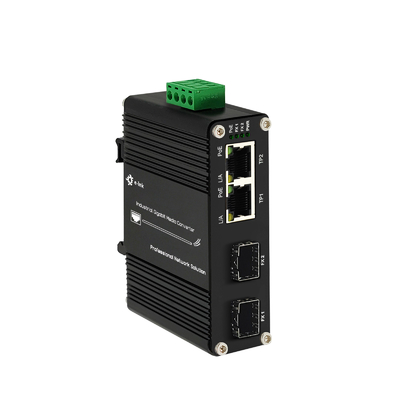

The LNK-IMC202GP-SFP Series is a DIN rail-mounted, industrial-grade 802.3at 30W PoE switch
that supports external SFP modules and complies with EN55022 standards. This switch is equipped
with high-power PoE (IEEE 802.3at), making it suitable for use in extreme temperatures ranging f
rom -40°C to +75°C. It supports 10/100/1000Base-T and 100/1000Base-X SFP ports, ensuring
a versatile connectivity solution. It offers flexible connectivity with half/full-duplex modes and compatibility
with various single-mode/multi-mode fiber SFP modules (1/2 core) for diverse networking needs.
Mini Indutrial PoE Ethernet Switch Features
-
2 10/100/1000BASE-T RJ45 ports , support auto MDI/MDI-X function
-
2 SFP ports , support 100Base-FX or 1000Base-X dual-mode automatic detection
-
Supports IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W) power supply
-
Support Link Fault Passive (LFP) to improve network reliability
-
Support full-duplex/half-duplex automatic negotiation , adapt to various network environments
-
9K byte jumbo frame to optimize large data transmission efficiency
-
Wide voltage input (12~48VDC) with power boost function , adaptable to various power supply conditions
-
Supports DIN rail and wall mounting , flexible and convenient installation
-
Industrial-grade wide temperature design : -40°C to +75°C, suitable for harsh environments
Mini Indutrial PoE Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
2 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Output Power
|
48VDC
|
|
Power Consumption:
|
65W Max.
5W Max. 0.1A@48VDC (PoE not in use)
|
|
PoE
|
|
Port:
|
RJ45 Port 1 ~ Port 2
|
|
Max. Power per Port:
|
30W Max per port (Alternative B Mode)
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
RJ45:
|
LINK/Activity
|
|
SFP:
|
LINK
|
|
PoE:
|
Per Port Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Indutrial PoE Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC202GP-SFP
|
Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
Mini Indutrial PoE Ethernet Switch Application
