Industrial 8-Port 10/100Base-TX + 2-Port 100BASE-FX Ethernet Switch
LNK-IMC208 Industrial Ethernet Switch Overview
The LNK-IMC208 series is an 8-port 10/100Base-TX plus 2-port 100Base-FX industrial Ethernet switch.
It is equipped with eight RJ45 ports and two fiber optic ports. The RJ45 ports support
10/100Base-T(X) full- and half-duplex modes with auto MDI/MDI-X, while the optical ports
support single- and dual-fiber single-mode and multimode fibre connections.
Its rugged design ensures stable operation in harsh environments and is easy to install,
making it ideal for connecting network devices such as IP cameras and wireless access points
between remote locations. It ensures highly reliable data transmission and network integration.
LNK-IMC208 Industrial Ethernet Switch Features
LNK-IMC2008 presents the following characteristics:
►10 Port Configuration: 8 10/100Base-TX + 2 100Base-FX
► Flexible RJ45 Connectivity: 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Multiple Fiber Interface Options: SFP, SC, FC, ST Optional
►Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Versatile Installation: Supports Wall-mount and DIN-Rail installation
► Wide Tempereature Range: -40°C to 80°C (-40°F to 176°F) operating temperature
LNK-IMC208 Industrial Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3x Flow Control
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
Packet Buffer Memory:
|
512K bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Address Table Size:
|
1024 MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
Optical Port:
|
2 x 100Base-FX (SFP, SC, FC, ST Optional)
|
|
Ethernet Port
|
RJ45 Port 1 ~ Port 8
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~58VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
5W Max.
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber:
|
FX1, FX2
|
|
Dimensions (WxDxH):
|
150 x 115 x50 mm
|
|
Weight:
|
0.6Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
LNK-IMC208 Industrial Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC208
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
|
|
LNK-IMC208-20
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
|
|
LNK-IMC208S-20
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
|
|
LNK-IMC208F-20
|
Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
|
|
LNK-IMC208-SFP
|
Industrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|

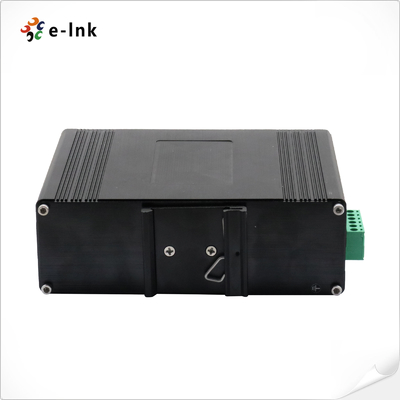

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
LNK-IMC208 Industrial Ethernet Switch Application

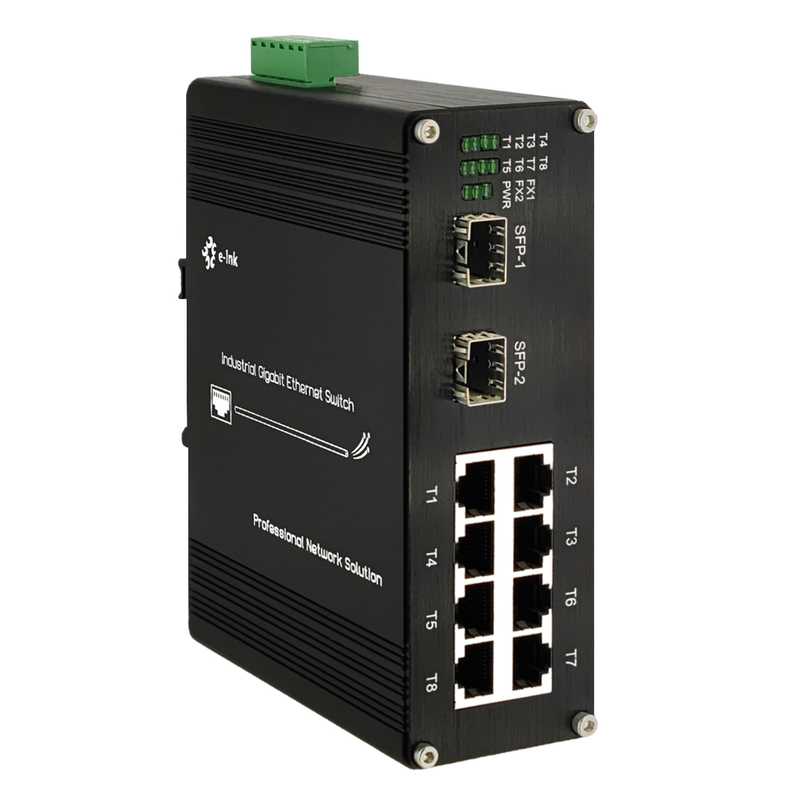

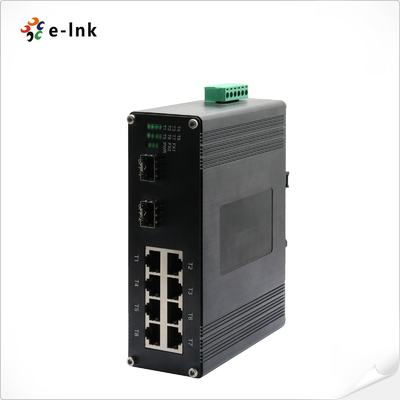

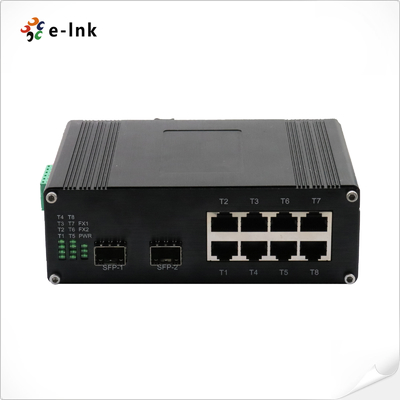

LNK-IMC208 Industrial Ethernet Switch Interface and Panel
