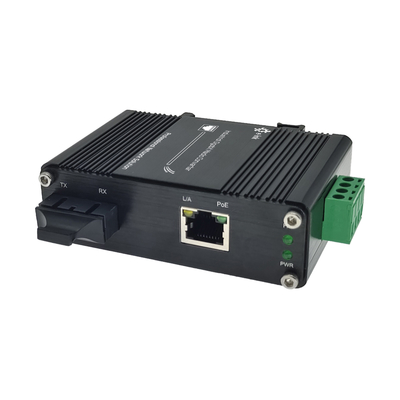

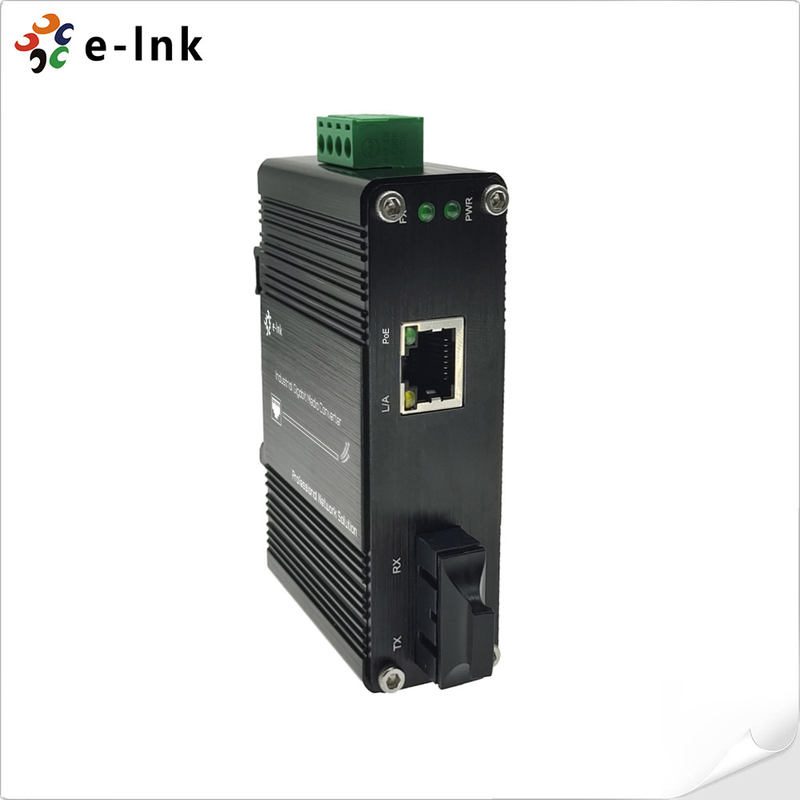

Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C

Large Image : Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC3011P60
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiate
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Network Interface:	1×RJ45 (10/100/1000BASE-T, Auto MDI/MDI-X), 1×SC (1000BASE-X)	PoE Capability:	Up To 60W PoE++ Output Over 4 Pairs, IEEE802.3af/at Compliant
Power Input:	12~48VDC, 4-pin Terminal Block	Power Consumption:	Max. 65W
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Dimensions:	95×70×30 Mm

Industrial 60W PoE++ Gigabit Fiber Media Converter SC Port -40~75°C

Overview

The LNK-IMC3011P60 Series is a rugged industrial-grade media converter that bridges

copper and fiber networks while delivering up to 60W PoE++ power for high-demand devices.

Designed for harsh environments, it operates reliably from -40°C to 75°C in a compact

aluminum housing. With support for IEEE802.3af/at standards, Gigabit Ethernet, and flexible

installation options, it is ideal for powering PTZ cameras, wireless APs, and other

power-hungry PoE devices in transportation, industrial automation, and security surveillance

networks.

Features

High-Power PoE++ Output — Delivers up to 60W over 4-pair Ethernet for demanding

devices.

Gigabit Fiber Conversion — Converts between 10/100/1000BASE-T copper and

1000BASE-X SC fiber.

Hardened Industrial Design — Rugged aluminum housing, -40°C to 75°C operating

temperature.

Flexible Deployment — Supports DIN-rail and wall-mount installation.

Energy Efficient — IEEE 802.3az compliant for reduced energy consumption.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x 1000Base-X SC
Electrical and Mechanical
Input Power:	12~48VDC, 4-pin terminal block
Output Power	48VDC
Power Consumption:	65W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC3011P60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC3011P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC3011P60S-20	Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
