Industrial 60W PoE++ Fiber Media Converter SC Port -40~75°C DIN Rail

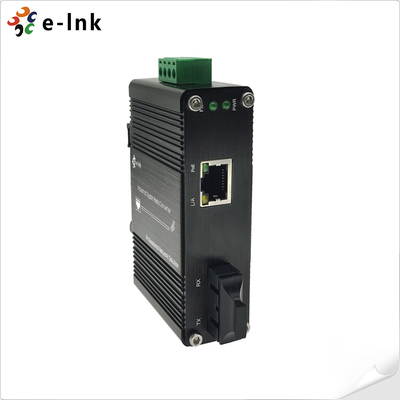

Large Image : Industrial 60W PoE++ Fiber Media Converter SC Port -40~75°C DIN Rail

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC1100P60 Series
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$69-$89
Packaging Details:	Media Converter Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal,TT,Western Union,MoneyGram,Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Network Interface:	1×RJ45 (10/100BASE-T, Auto MDI/MDI-X), 1×SC (100BASE-FX)	PoE Capability:	Up To 60W PoE++ Over 4 Pairs, IEEE802.3af/at Compliant
Power Input:	12~48VDC, 2-pin Terminal Block	Operating Temperature:	-40°C To 75°C (-40°F To 167°F)
Enclosure Material:	Aluminum Housing	Mounting Options:	DIN-Rail / Wall-mount

Industrial 60W PoE++ Fiber Media Converter SC Port -40~75°C DIN-Rail

Overview

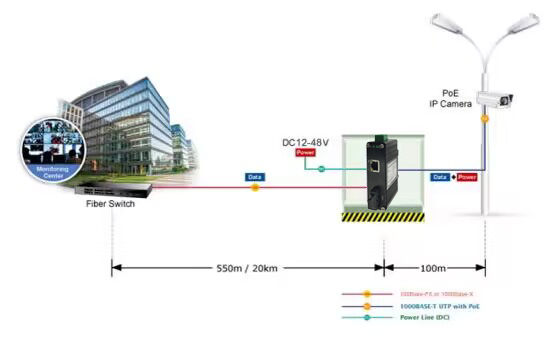

The LNK-IMC1100P60 Series is a compact, industrial-grade media converter designed to

extend Ethernet networks over fiber while delivering up to 60W PoE++ power to connected

devices. Engineered for demanding environments, it features a rugged aluminum enclosure,

wide operating temperature range, and flexible installation via DIN-rail or wall-mount.

Supporting IEEE802.3af/at standards, this converter is ideal for powering PTZ IP cameras,

wireless access points, and other high-power PoE devices in transportation, security, and

industrial automation networks.

Features

High-Power PoE++ Output — Delivers up to 60W over 4-pair Ethernet for power-hungry

devices.

Reliable Fiber Conversion — Converts between 10/100BASE-T copper and 100BASE-FX

fiber.

Industrial-Grade Build — Rugged aluminum housing with -40°C to 75°C operating range.

Flexible Installation — Supports DIN-rail and wall-mount setups.

Energy Efficient — IEEE 802.3az compliant for reduced power consumption.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3x Full duplex and flow control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	65W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1100P60	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1100P60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1100P60S-20	Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
