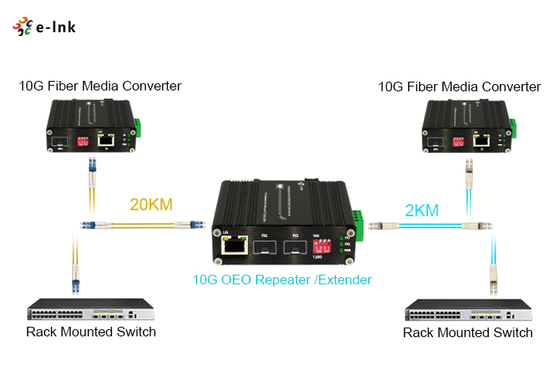

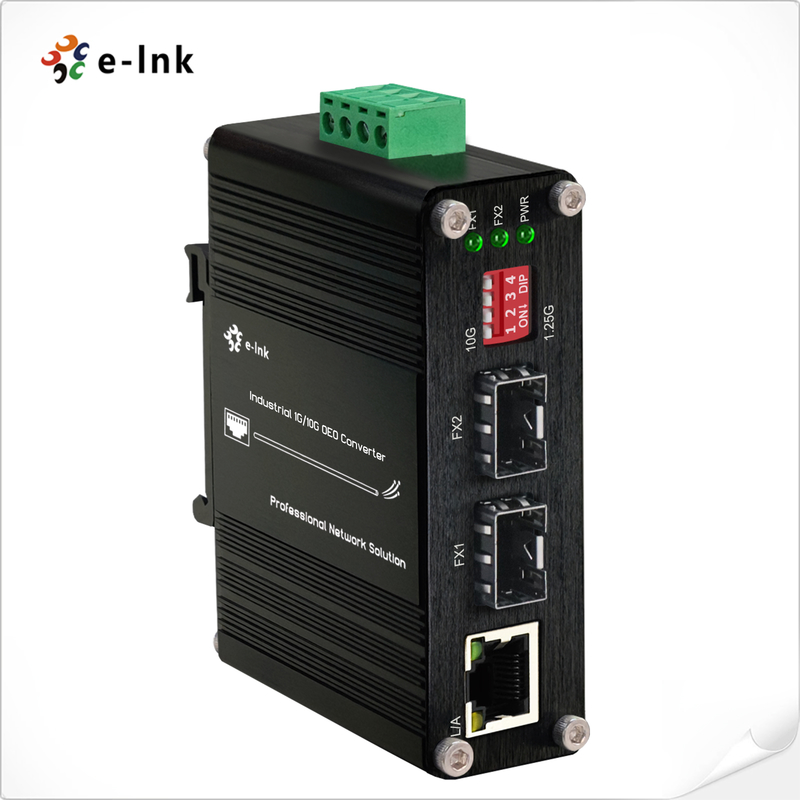

Industrial 1G/10G SFP+ OEO with 3R Repeater Ethernet Media Converter

Performance Data

Technical Indexes

Equipment function

3R Repeater

Transmission Speed

10G: 8.5Gb/s-11.7Gb/s

Protocols

8.5G Fiber Channel

SONET OC-192, SDH STM-64 (9.95Gbps)

10G WAN (10Gbps)

10G LAN (10.31Gbps)

OTN OTU-2 (G.709) (10.70Gbps)

10G LAN with 255/237 FEC coding (11.09Gbps)

10G Fiber Channel (11.32Gbps)

10G POS

Interface Type

SFP+ to SFP+

Transmission Distance

SFP+ module: up to 80km

Maximum Packet

Forwarding Rate

14,880,950/S

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Ethernet Media Converter Specifications

Standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z, 1000BASE-SX/LX

IEEE 802.3x Full-duplex flow control

Work Mode

10/100/1000BASE-T to 1000BASE-SX/LX

Port Type

SFP to RJ45

Network Cables

Twisted-pair
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m
100BASE-TX: 2-pair UTP Cat. 5, up to 100m
1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.
1000BASE-LX:
9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

Electrical and Mechanical

Input Power

12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption

8W Max

Protection

Power Input Overload

Automatic Resettable

Reverse Polarity

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

1.25G/10G

ON - 1.25~8.5G

OFF - 10.3G or 14.025G

SW 2

Reserved

ON - Reserved

OFF - Reserved

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

LED Indicators:

PWR

Power Status

FX1

SFP Port-1

FX2

SFP Port-2

L/A

TP LINK/ACT

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

Aluminum Case

Mounting Options:

DIN-Rail mount

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Model

Description

ETH-IMC2402-OEO

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
