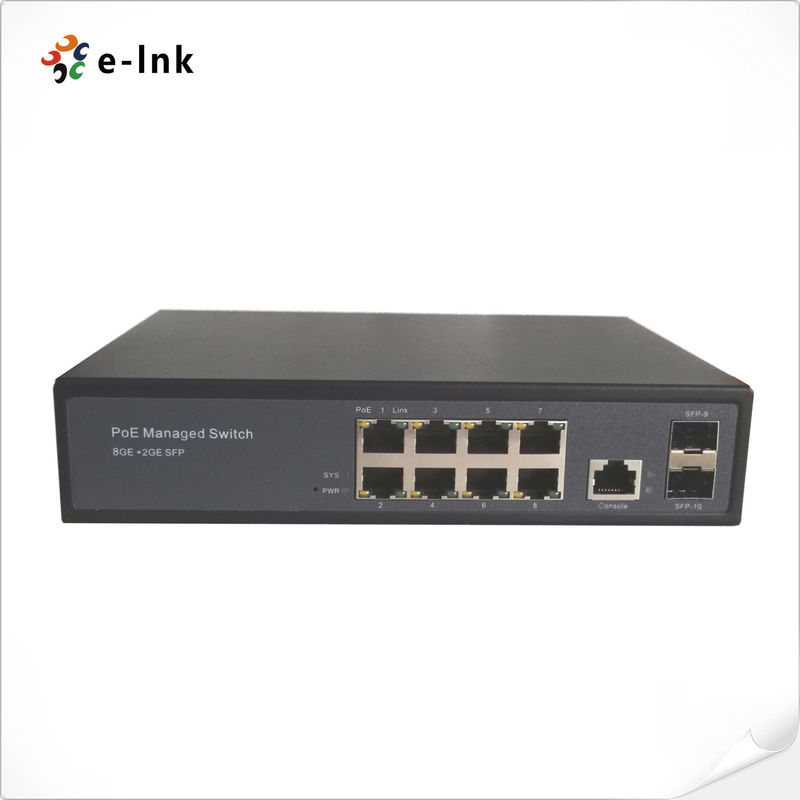

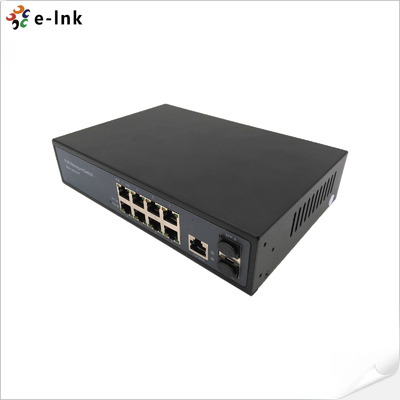

Managed 8-port 10/100/1000BASE-T + 2-port 1000BASE SFP
Auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE Switch
Managed PoE Switch Overview
The LNK-AM208GP-SFP is a Layer 2 managed PoE switch featuring 4x Gigabit RJ45 ports
(supporting IEEE 802.3af/at PoE+/24V passive PoE) and 2x SFP fiber slots for 1G uplinks.
This product has been designed to meet the high performance and security requirements
of networking solutions. It offers advanced Quality of Service (QoS), VLAN segmentation
and robust management, making it ideal for small to medium-sized businesses (SMBs),
campuses and smart communities.
Managed PoE Switch Features
-
Auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE support
-
10/100/1000 Mbps, full/half-duplex, auto-negotiation, and Auto MDI/MDI-X
-
One external 1000Base SFP slot for fiber uplink expansion
-
Built-in protection features: overcurrent, short-circuit, over-voltage, under-voltage,
-
power limitation, and Hi-Power PD safe function
-
Web-based management interface for easy configuration and monitoring
-
Automatically distinguishes between Active PD and Passive PD devices
-
Provides a total PoE power budget of up to 150W
-
Flexible installation with wall-mount or desktop/shelf mounting options
Managed PoE Switch Technical Indexes
|
Ethernet & Fiber
|
|
|
Standards
|
IEEE802.3 10Base-T
|
|
|
IEEE802.3u 100Base-TX
|
|
|
IEEE802.3ab 1000Base-T
|
|
|
IEEE802.3z 1000Base-X (Fiber)
|
|
|
IEEE802.3x Flow Control
|
|
|
IEEE802.1q VLAN Bridge Operation
|
|
|
IEEE802.3af Power over Ethernet
|
|
|
IEEE802.3at Power over Ethernet
|
|
|
Processing Type
|
Store-and-Forward (2.5M cache)
|
|
|
System Mode
|
Standard/VLAN Isolation
|
|
|
Switch Fabric
|
20 Gbps
|
|
|
MAC address
|
8K
|
|
|
Forward Filter Rate
|
14,880pps (10Mbps)
|
|
|
148,800pps (100Mbps)
|
|
|
1,488,000pps (1000Mbps)
|
|
|
Ethernet Port
|
8 x 10/100/1000Mbps RJ45 Ethernet Ports
|
|
|
Optical Port
|
2 x SFP 1000Base-FX
|
|
|
Electrical and Mechanical
|
|
|
Input Power (AC/DC 2 power)
|
48~57VDC or 100~265VAC 50/60Hz
|
|
|
Power Consumption
|
20W Max. (PoE not in use)
|
|
|
150W Max. (PoE in use)
|
|
|
LED Indicators
|
|
|
Power
|
Power Status
|
|
|
9-10
|
Port Fiber
|
|
|
PoE Green
|
48V PoE
|
|
|
PoE Orange
|
24V PoE
|
|
|
Link Orange
|
1000M Speed
|
|
|
Link Green
|
10/100M Speed
|
|
|
PoE
|
|
|
Standard
|
IEEE802.3af/at
|
|
|
Port
|
RJ45 Port1~Port4
|
|
|
Max. Power per port
|
30W Max per port (Alternative B mode)
|
|
|
PoE Output Auto-sensing
|
Support both Active and Passive PD without setting
|
|
|
PoE Interfaces
|
PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
|
|
|
Function
|
Support Overcurrent, Shortcurrent, OverVOL, UnderVOL, Power Limitation, Safe Function HiPower PD star BOOT, After Boot
|
|
|
Mechanical
|
|
|
Dimensions (L x W x H)
|
210 x 140 x 45 mm
|
|
|
Weight
|
1.5Kg
|
|
|
Casing
|
Metal Case
|
|
|
Mounting options
|
Wall-mount and desk/shelf mounting
|
|
|
Environmental
|
|
|
Operation Temperature
|
0°C to 40°C (32°F to 104°F)
|
|
|
Storage Temperature
|
-40°C to 70°C (-40°F to 158°F)
|
|
|
Relative Humidity
|
5% to 90% non-condensing
|
|
|
MTBF
|
> 200,000 hrs
|
|
|
Regulatory Approvals
|
|
|
ISO9001,CE, FCC, RoHS
|
|
|
WEB software function
|
|
|
Standards
|
IEEE 802.3x
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q, IEEE 802.3q/p
IEEE 802.1w, IEEE 802.1d, IEEE 802.1S
|
|
MAC Address
|
8K MAC addresses; MAC address learning and aging
|
|
VLAN
|
4k VLANS; Port-based VLANs; 802.1Q VLAN
|
|
Spanning Tree
|
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
PPS ring network protocol
EAPS ring network protocol
802.1x argumentation agreement
|
|
Link Aggregation
|
Max 8 aggregation groups, each supports 8 ports
Static aggregation and dynamic aggregation
|
|
Port Mirror
|
Many-to-one port mirroring
|
|
LoopGuard
|
Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery
|
|
isolation
|
Support downlink ports isolated from each other and communicate with upstream port
|
|
Port flow control
|
Half duplex based back pressure control
Full duplex based on PAUSE frames
|
|
line rate
|
Support port based input / output bandwidth management
|
|
IGMP Snooping
|
IGMPv1/2/3 and MLDv1/2 Snooping
GMRP protocol registration
Multicast address management, multicast VLAN, multicast routing ports, static multicast addresses
|
|
DHCP
|
DHCP Snoping
|
|
Storm suppression
|
Unknown unicast, multicast, unknown multicast, storm suppression of broadcast type
Storm suppression based on bandwidth tuning and storm filtering
|
|
Security
|
User port+IP address+MAC
ACL based on IP and MAC
Security properties of port based MAC address quantities
|
|
QOS
|
802.1p port queue priority algorithm
Cos/Tos, QOS sign
WRR (Weighted Round Robin),Weighted priority rotation algorithm
WRR, SP, WFQ, 3 priority scheduling models
|
|
Port
|
Auto-MDIX ; Auto negotiation
|
|
System maintenance
|
Upgrade package upload; system log view
WEB restore factory configuration
|
|
Management and maintenance
|
WEB NMS
Remote configuration and maintenance using Telnet
SNMP V1/V2/V3；SSHV1/V2
RMON
|
Managed PoE Switch Ordering Information
|
Model
|
Description
|
|
LNK-AM208GP-SFP
|
Managed Switch: Auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE Switch: 8-Port 10/100/1000BASE-T + 2-Port 1000BASE SFP, support WEB management
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Wall-mount and desk/shelf mounting
|
